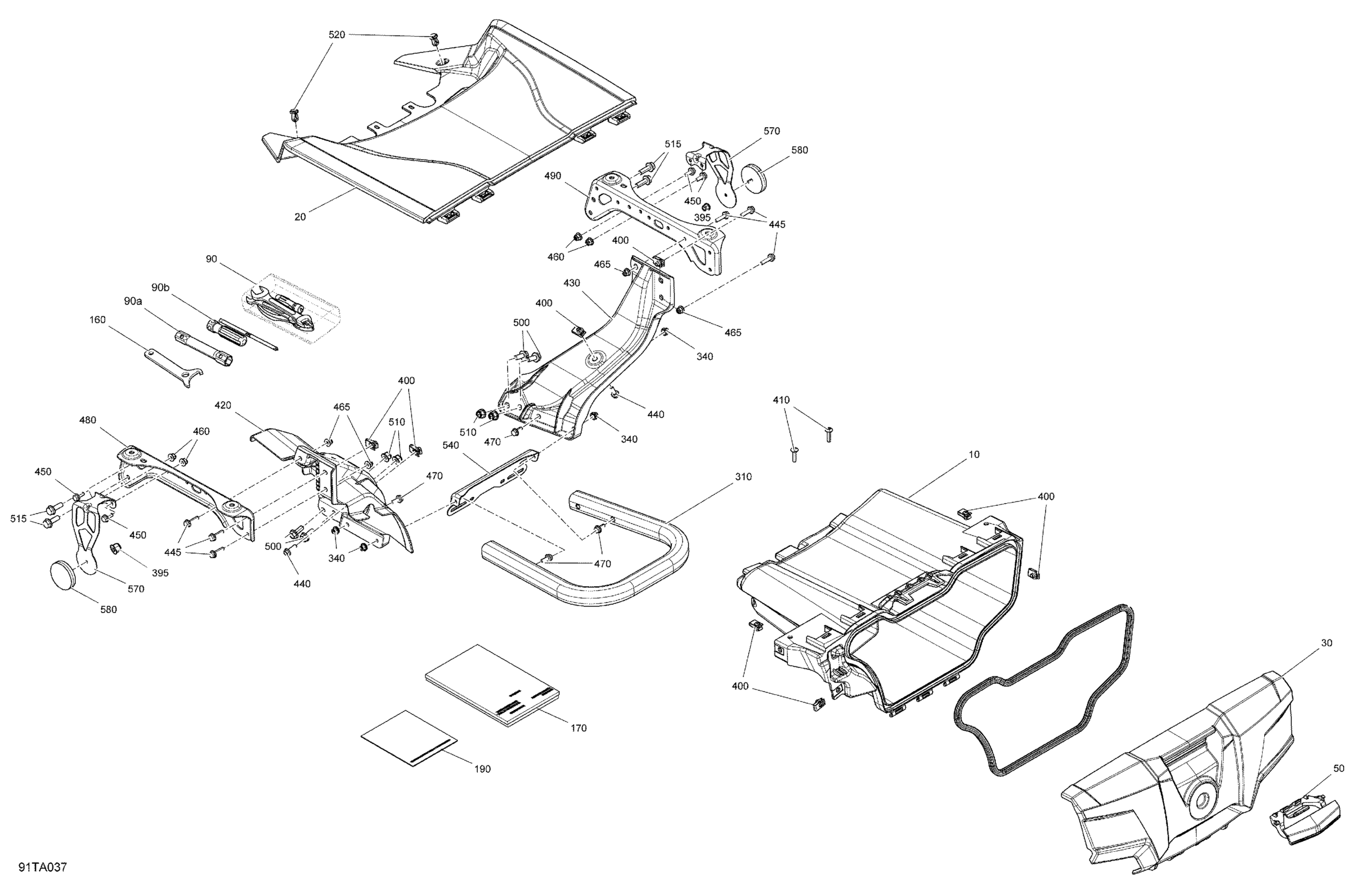

Can-Am Outlander 850 EFI - XMR - NEO YELLOW - 2021 Miscellaneous - Tools Diagram

Description

Price

Rear Storage Box

708300674

$93.99

Rear Storage Box Cover

708301212

$51.99

Rear Panel

708300150

$38.99

Handle Latch

708201250

$14.49

Tool Kit

704700168

$40.99

90a

Socket Wrench 14/16MM

529000085

$6.55

90b

Screw Driver

529000021

$3.29

160

Adjustment Wrench

529000035

$2.09

170

Winch Instruction Guide

219002088

Unavailable

190

Waranty Registration Form

219400038

Unavailable

310

Rear Bumper Ass'y

715001564

$55.99

340

Insert Half Hex Body M6 x 1.0

250100199

$3.19

395

Flange Elastic Nut M5

233251434

$2.00

400

Panel Nut M6 X 1.0

250100198

$2.11

410

Torx Truss Screw M6 X 25

250000807

$2.11

420

LH Cargo Support

705006997

$55.99

430

RH Cargo Support

705006998

$55.99

440

Hex. Flange Screw M6 X 20

207662044

$2.00

445

Hex. Flange Screw M6 X 25

207662544

$0.64

450

Hex. Flange Screw M6 X 16

207661644

$0.74

460

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

465

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

470

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

480

LH Support

705004563

$34.99

490

RH Support

705004564

$34.99

500

Hex. Flange Screw M8 X 20

207682044

$1.15

510

Hex. Flange Elastic Nut M8

233281414

$1.47

515

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

520

Tuflok Plastic Rivet

293150230

$1.47

540

Plate Support

705004806

$13.99

570

Reflector Support

708200987

$4.09

580

Red Reflector

705011221

$14.49
