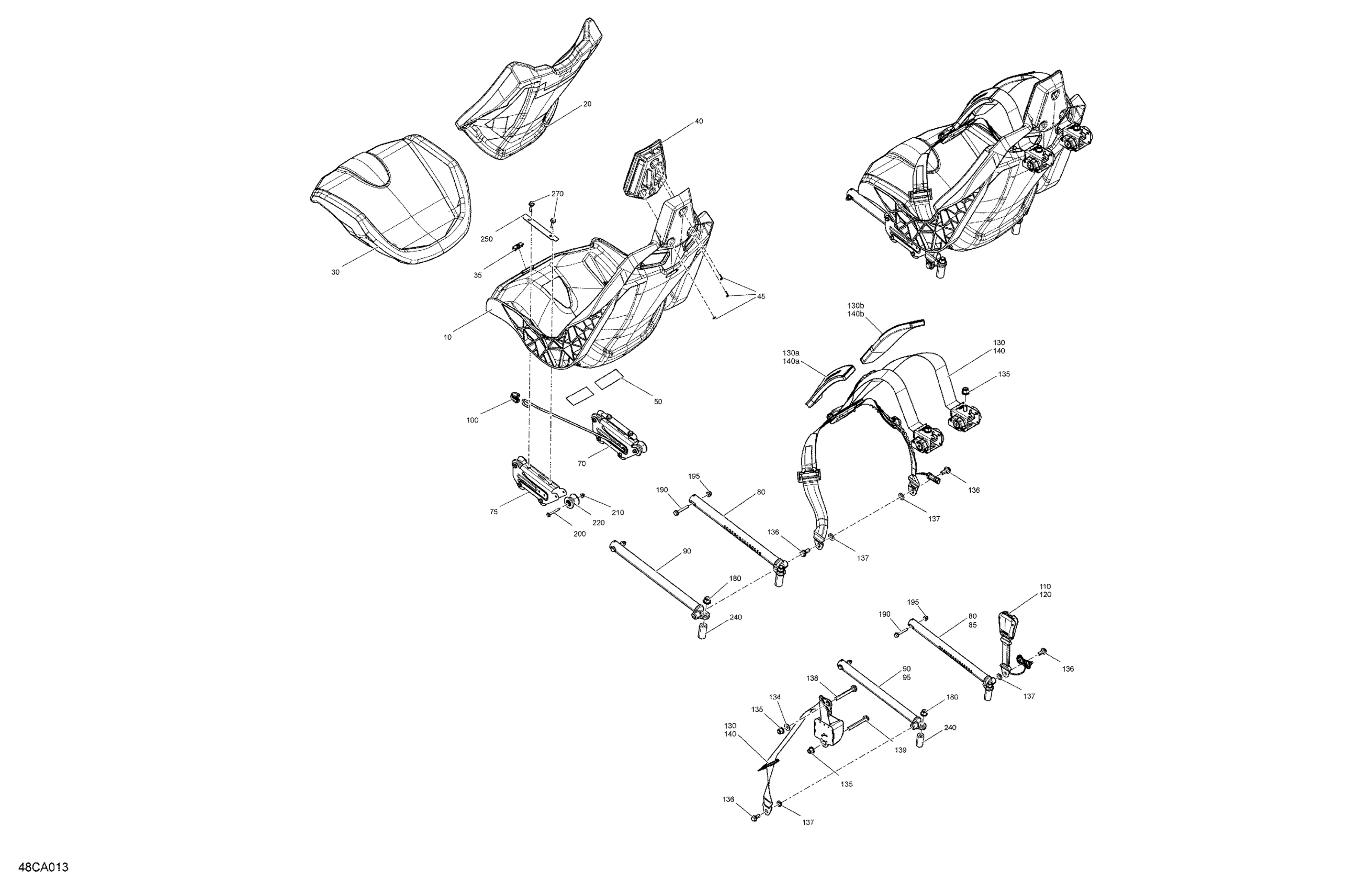

Can-Am Maverick MAX Turbo RR - XDS_XRS - 2021 Body - Seat Diagram

#

Description
Price

10

LH Seat Shell

715005155

$235.35

10

RH Seat Shell

715005156

$235.35

10

RH Front Seat Shell Kit | Model Macchiato Satin

715007601

$235.35

10

LH Front Seat Shell Kit | Model Macchiato Satin

715007599

$235.35

20

Backrest Cushion | Package XRS & Hyper Silver

708002874

$332.28

20

Backrest Cushion

708002676

$415.35

30

Seat Base Cushion | Model Gold

708002382

$226.12

30

Seat Base Cushion

708002678

$226.12

35

Stopper

708002670

$3.98

40

Headrest

708002131

$96.89

45

Torx Screw Truss Head K50X20 T20

250000760

$1.74

50

Velcro Tape

708002535

$4.98

70

Adjustable Trolley Kit

703500997

$54.58

75

Trolley

708002298

$16.89

80

Seat Rail

708003061

$50.74

85

Rail

708002578

$50.74

90

Seat Rail

708003064

$50.74

95

Rail

708002575

$50.74

100

Adjustment Handle

708002655

$15.22

110

Driver Buckle

708002714

$96.89

120

Passenger Buckle

708002385

$83.05

130

Safety Belt Passenger

708002654

$267.66

130

Passenger 4-Point Harness

715005022

$308.74

130a

LH Shoulder Pad

708002824

$36.89

130b

RH Shoulder Pad

708002825

$36.89

134

Flat Washer M12

250200102

$1.74

135

Elastic Flange Nut M12

233221416

$2.33

136

Safety Belt screw

708002504

$5.52

137

Position Washer

708000891

$1.15

138

Hex. Flange Screw M12 X 97.5

250000896

$7.98

139

Hex. Flange Screw M12 X 95

250000876

$5.54

140

Driver Side Safety Belt

708002811

$267.66

140

LH Front Safety Belt 4 Points

708002917

$253.82

140a

LH Shoulder Pad

708002824

$36.89

140b

RH Shoulder Pad

708002825

$36.89

180

Elastic Flange Nut M12

233221416

$2.33

190

Hex. Flange Screw M8 X 55

207685554

$4.39

195

Elastic Flange Nut M8

233281464

$0.83

200

Hex. Flange Screw M6 X 50

207665054

$3.95

210

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

220

Wheel

708002134

$15.35

240

Rear Bushing

708002299

$10.14

250

Plate | Includes 250 to 250a

708003680

$2.03

270

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

6110

Elastic Flange Nut M12

233221416

$2.33

6120

Elastic Flange Nut M8

233281464

$0.83
