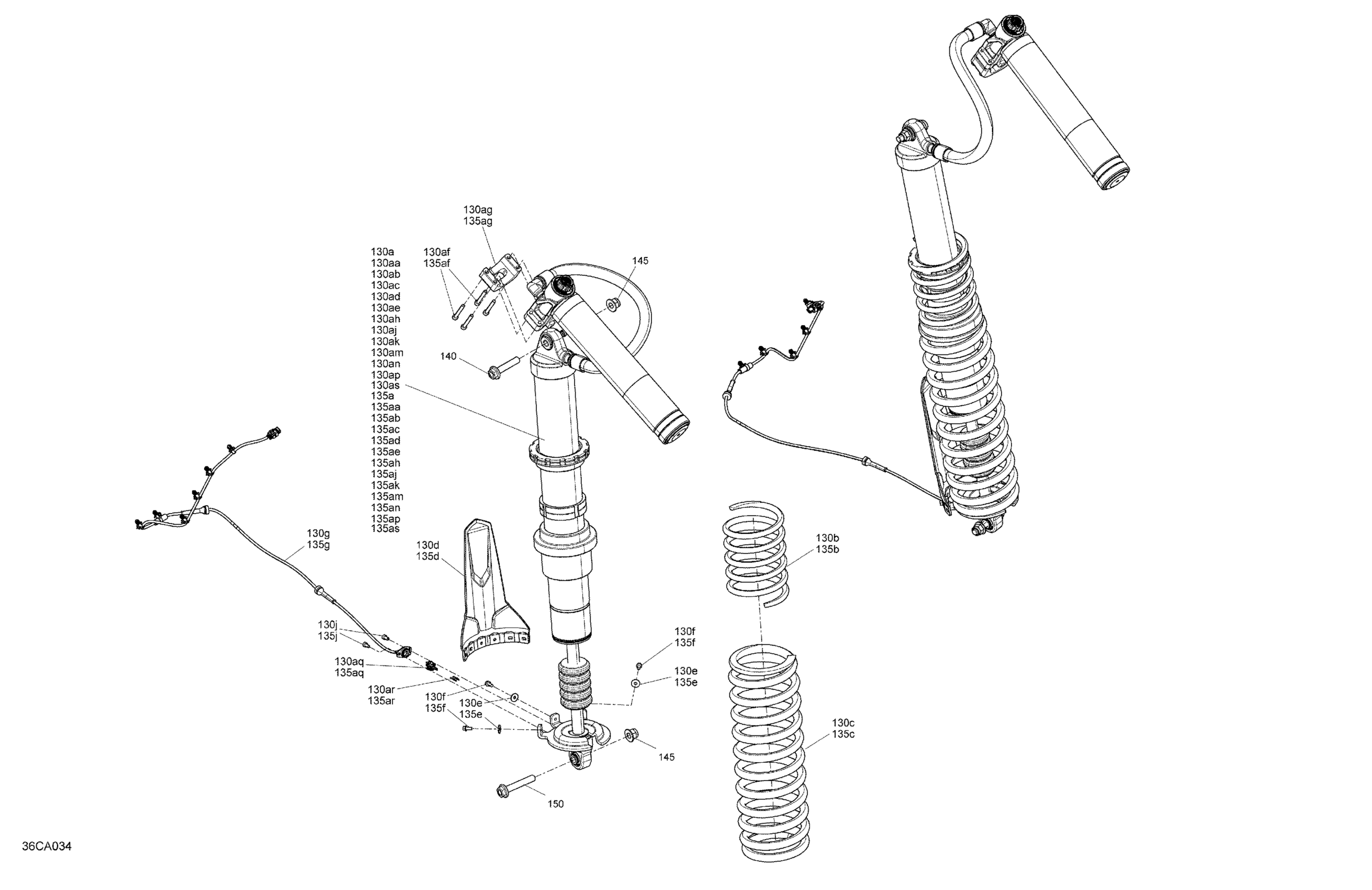

Can-Am Maverick MAX Turbo RR - XDS_XRS - 2021 Suspension - Rear Shocks - XRS Diagram

#

Description
Price

130a

Rear Shock Absorber | Includes 130a to 130a13

706003897

$1,729.99

130a

Rear Adjustable Shock Absorber | Includes 130a to 130a8

706002257

$1,529.99

130aa

Spherical Bearing

715900337

$80.74

130ab

Ball Joint

706004078

$45.12

130ac

O-Ring Bushing

715900338

$10.98

130ad

Circlip

715900480

$11.06

130ae

Reducer

715900481

$27.66

130af

Screw M6 X 35

715900521

$5.52

130ag

Réservoir Clamp

715900522

$36.89

130ah

Preload Ring

715900605

$27.66

130aj

Preload Ring Backup

715900606

$27.66

130ak

Spring Adapter

715900607

$10.77

130am

Crossover ring

715900608

$119.97

130an

Spring Retainer

715900597

$36.89

130ap

Spring Coupler

715900593

$104.58

130aq

Connector Support

706203583

$12.91

130ar

Female Terminal | Models with Smart-ShoX

710006415

Unavailable

130as

Anchorage

706204583

$14.75

130b

Dazzling Blue, Compression Spring | Model Dazzling Blue

706004164

$115.35

130b

Northern Lichen, Compression Spring | Model Macchiato Satin without Smart-ShoX

706004193

$119.97

130b

Black, Rear Spring | Model X3 Xrs Black

706002564

$119.97

130b

Red, Rear Spring | Model X3 Xrs Gold

706002236

$138.43

130b

Black, Rear Spring | Model X3 Xrs Black

706002564

$119.97

130c

Dazzling Blue, Compression Spring | Model Dazzling Blue

706004172

$143.05

130c

Northern Lichen, Compression Spring | Model Macchiato Satin without Smart-ShoX

706004194

$147.66

130c

Deep Black, Compression Spring | Model Timeless Black without Smart-ShoX

706003928

$143.05

130c

Deep Black, Compression Spring | Model Macchiato Satin with Smart-ShoX

706003793

$143.05

130c

Deep Black, Compression Spring | Model Timeless Black without Smart-ShoX

706003928

$143.05

130d

Protector

706202215

$9.23

130e

Washer M5

250200025

$0.61

130f

Hex Flange Screw M5 X 11

210251150

$1.74

130g

Rear Suspension Wiring Harness Ass'y

710006389

$216.89

130j

Socket Head Screw M5 X 10

205551060

$1.30

135a

Rear Shock Absorber | Includes 130a to 130a13

706003897

$1,729.99

135a

Rear Adjustable Shock Absorber | Includes 130a to 130a8

706002257

$1,529.99

135aa

Spherical Bearing

715900337

$80.74

135ab

Ball Joint

706004078

$45.12

135ac

O-Ring Bushing

715900338

$10.98

135ad

Circlip

715900480

$11.06

135ae

Reducer

715900481

$27.66

135af

Screw M6 X 35

715900521

$5.52

135ag

Réservoir Clamp

715900522

$36.89

135ah

Preload Ring

715900605

$27.66

135aj

Preload Ring Backup

715900606

$27.66

135ak

Spring Adapter

715900607

$10.77

135am

Crossover ring

715900608

$119.97

135an

Spring Retainer

715900597

$36.89

135ap

Spring Coupler

715900593

$104.58

135aq

Connector Support

706203583

$12.91

135ar

Female Terminal | Models with Smart-ShoX

710006415

Unavailable

135as

Anchorage

706204583

$14.75

135b

Dazzling Blue, Compression Spring | Model Dazzling Blue

706004164

$115.35

135b

Northern Lichen, Compression Spring | Model Macchiato Satin without Smart-ShoX

706004193

$119.97

135b

Black, Rear Spring | Model X3 Xrs Black

706002564

$119.97

135b

Red, Rear Spring | Model X3 Xrs Gold

706002236

$138.43

135b

Black, Rear Spring | Model X3 Xrs Black

706002564

$119.97

135c

Northern Lichen, Compression Spring | Model Macchiato Satin without Smart-ShoX

706004194

$147.66

135c

Dazzling Blue, Compression Spring | Model Dazzling Blue

706004172

$143.05

135c

Deep Black, Compression Spring | Model Timeless Black without Smart-ShoX

706003928

$143.05

135c

Red, Rear Spring | Model X3 Xrs Gold

706002235

$161.51

135c

Deep Black, Compression Spring | Model Timeless Black without Smart-ShoX

706003928

$143.05

135d

Protector

706202215

$9.23

135e

Washer M5

250200025

$0.61

135f

Hex Flange Screw M5 X 11

210251150

$1.74

135g

Rear Suspension Wiring Harness Ass'y

710006389

$216.89

135j

Socket Head Screw M5 X 10

205551060

$1.30

135k

Rear Spring | Can-Am Red

706003090

$138.43

140

Flange Screw M12 X 60

250000857

$6.08

145

Elastic Flange Nut M12

233221466

$2.15

150

Hex. Flange Screw M12 X 70

250000858

$3.11
