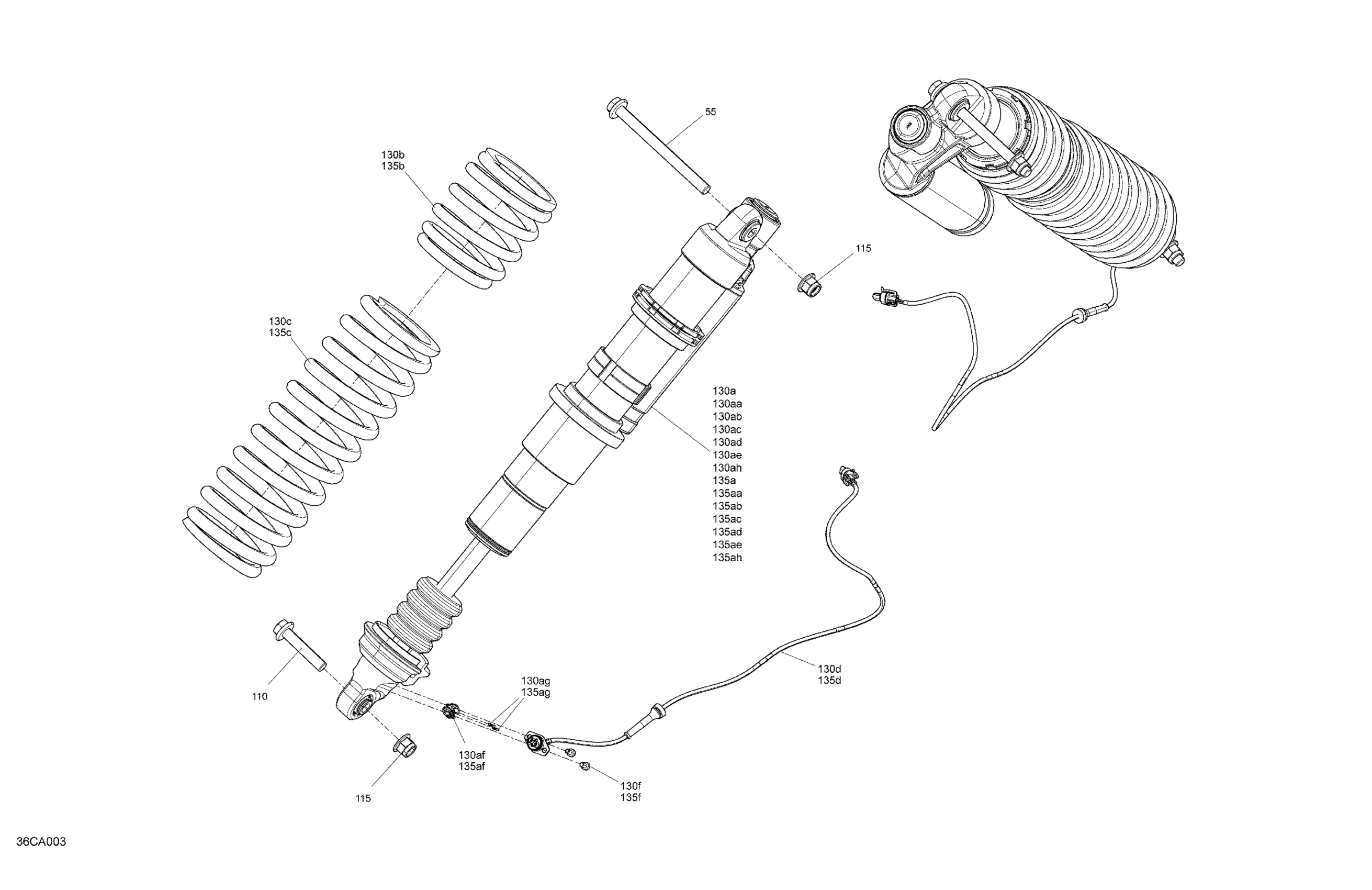

Can-Am Maverick MAX Turbo RR - XDS_XRS - 2021 Suspension - Front Shocks - XRS Diagram

#

Description
Price

55

Flange Screw M12 X 145

250000861

$6.67

110

Flange Screw M12 X 60

250000857

$7.41

115

Elastic Flange Nut M12

233221466

$2.89

130a

LH Front Adjustable Shock Absorber | Includes 130a to 130a5

706203517

$1,569.99

130a

LH Front Shock | Includes 130a to 130a5

706204046

$959.99

130aa

Spherical Bearing

715900337

$84.99

130ab

Ball Joint

706004078

$47.49

130ac

O-Ring Bushing

715900338

$12.63

130ad

Circlip

715900480

$11.49

130ae

Reducer

715900481

$27.99

130af

Connector Support

706203583

$13.49

130ag

Female Terminal | Models with Smart-ShoX

710006415

Unavailable

130ah

Anchorage

706204583

$15.49

130b

Dazzling Blue, Compression Spring | Model Dazzling Blue

706204313

$96.49

130b

Deep Black, Front Compression Spring | Models Timeless Black and Macchiato Satin without Smart-ShoX

706204071

$126.99

130b

Deep Black, Front Compression Spring | 72 inch wide

706204069

$96.49

130b

Deep Black, Compression Spring | Models Timeless Black and Macchiato Satin without Smart-ShoX

706204070

$100.49

130c

Dazzling Blue, Compression Spring | Model Dazzling Blue

706204312

$147.99

130c

Black Front Spring | XRSDPS Package, Timeless Black Metallic

706202790

$153.49

130c

Can-Am Red, Front Spring | XRSDPS Package, Liquid Gold

706202796

$153.49

130c

Black Front Spring | XRSDPS Package, Timeless Black Metallic

706202790

$153.49

130d

Front Suspension Wiring Harness Ass'y

710006388

$229.99

130f

Socket Head Screw M5 X 10

205551060

$1.58

135a

RH Front Adjustable Shock Absorber | Includes 135a to 135a5

706203518

$1,569.99

135a

RH Front Shock | Includes 135a to 135a5

706204047

$959.99

135aa

Spherical Bearing

715900337

$84.99

135ab

Ball Joint

706004078

$47.49

135ac

O-Ring Bushing

715900338

$12.63

135ad

Circlip

715900480

$11.49

135ae

Reducer

715900481

$27.99

135af

Connector Support

706203583

$13.49

135ag

Female Terminal | Models with Smart-ShoX

710006415

Unavailable

135ah

Anchorage

706204583

$15.49

135b

Dazzling Blue, Compression Spring | Model Dazzling Blue

706204313

$96.49

135b

Deep Black, Front Compression Spring | Models Timeless Black and Macchiato Satin without Smart-ShoX

706204071

$126.99

135b

Deep Black, Front Compression Spring | 72 inch wide

706204069

$96.49

135b

Deep Black, Compression Spring | Models Timeless Black and Macchiato Satin without Smart-ShoX

706204070

$100.49

135c

Dazzling Blue, Compression Spring | Model Dazzling Blue

706204312

$147.99

135c

Black Front Spring | XRSDPS Package, Timeless Black Metallic

706202790

$153.49

135c

Can-Am Red, Front Spring | XRSDPS Package, Liquid Gold

706202796

$153.49

135c

Black Front Spring | XRSDPS Package, Timeless Black Metallic

706202790

$153.49

135d

Front Suspension Wiring Harness Ass'y

710006388

$229.99

135f

Socket Head Screw M5 X 10

205551060

$1.58
