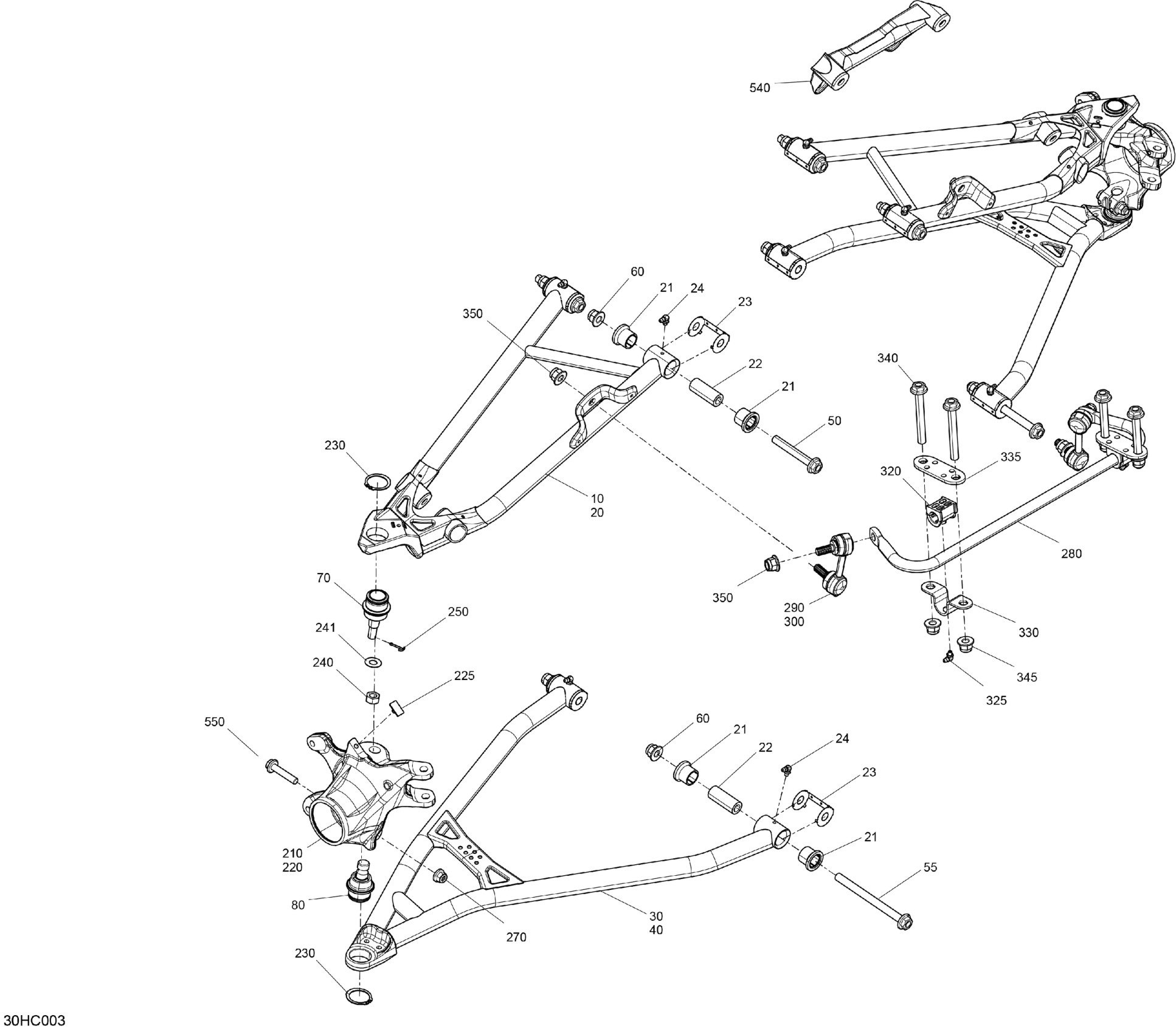

Can-Am Maverick MAX Turbo RR - DS - 2023 Suspension - Front Components Diagram

Deep Black, LH Upper Suspension Arm

703501047

$201.49

Gulfstream Blue, LH Upper Suspension Arm | Package XRC

703501120

$201.49

Carbon Black, LH Upper Suspension Arm Ass'y With Balljoint This part replaces 706205154.

715011468

$274.99

Deep Black, RH Upper Suspension Arm

703501050

$201.49

Gulfstream Blue, RH Upper Suspension Arm | GulfStream Blue Model

703501121

$201.49

Carbon Black, RH Upper Suspension Arm

706205155

$201.49

Suspension Arm Bushing

706204409

$9.10

Interior Bushing

706202257

$9.79

Wear Plate

706202300

$2.29

Grease Fitting 90°

293550056

$1.15

Deep Black, LH Front Suspension Arm Ass'y With Balljoint This part replaces 706202919.

715010612

$269.99

Carbon Black, LH Lower Suspension Arm Ass'y With Balljoint This part replaces 706205241.

715010651

$269.99

Deep Black, RH Front Suspension Arm Ass'y With Balljoint This part replaces 706202920.

715010611

$269.99

Carbon Black, RH Lower Suspension Arm Ass'y With Balljoint This part replaces 706205242.

715010650

$269.99

Flange Screw M12 X 85

250000859

$4.76

Flange Screw M12 X 145

250000861

$6.67

Elastic Flange Nut M12

250001195

$2.64

Ball Joint

706203084

$35.99

Ball Joint

706202045

$35.99

LH Front Knuckle

706204785

$201.49

RH Front Knuckle

706204786

$148.49

Wear Plate

706202502

$2.29

Circlip

293370035

$2.64

Hex Nut M12

250100239

$2.00

Hardened Washer

706200281

$2.85

Cotter Pin

211400017

$0.33

Hex. Flange Elastic Nut M10

233201436

$2.11

Stabilizer Bar Ass'y

706203953

$98.49

LH Stabilizer Bar Link

706203611

$72.99

RH Stabilizer Bar Link

706203612

$72.99

Stabilizer Bar Bushing

706204564

$3.61

Grease Fitting 90°

293550056

$1.15

Clamp

706202460

$6.89

Support Plate

706202551

$5.09

Hex. Flange Screw M12 X 95

250000876

$6.77

Elastic Flange Nut M12

250001195

$2.64

Elastic Flange Nut M12

250001195

$2.64

Black, Link

706202708

$55.99

Hex.Flange Screw Din.6921

207605046

$4.76
