Partiron

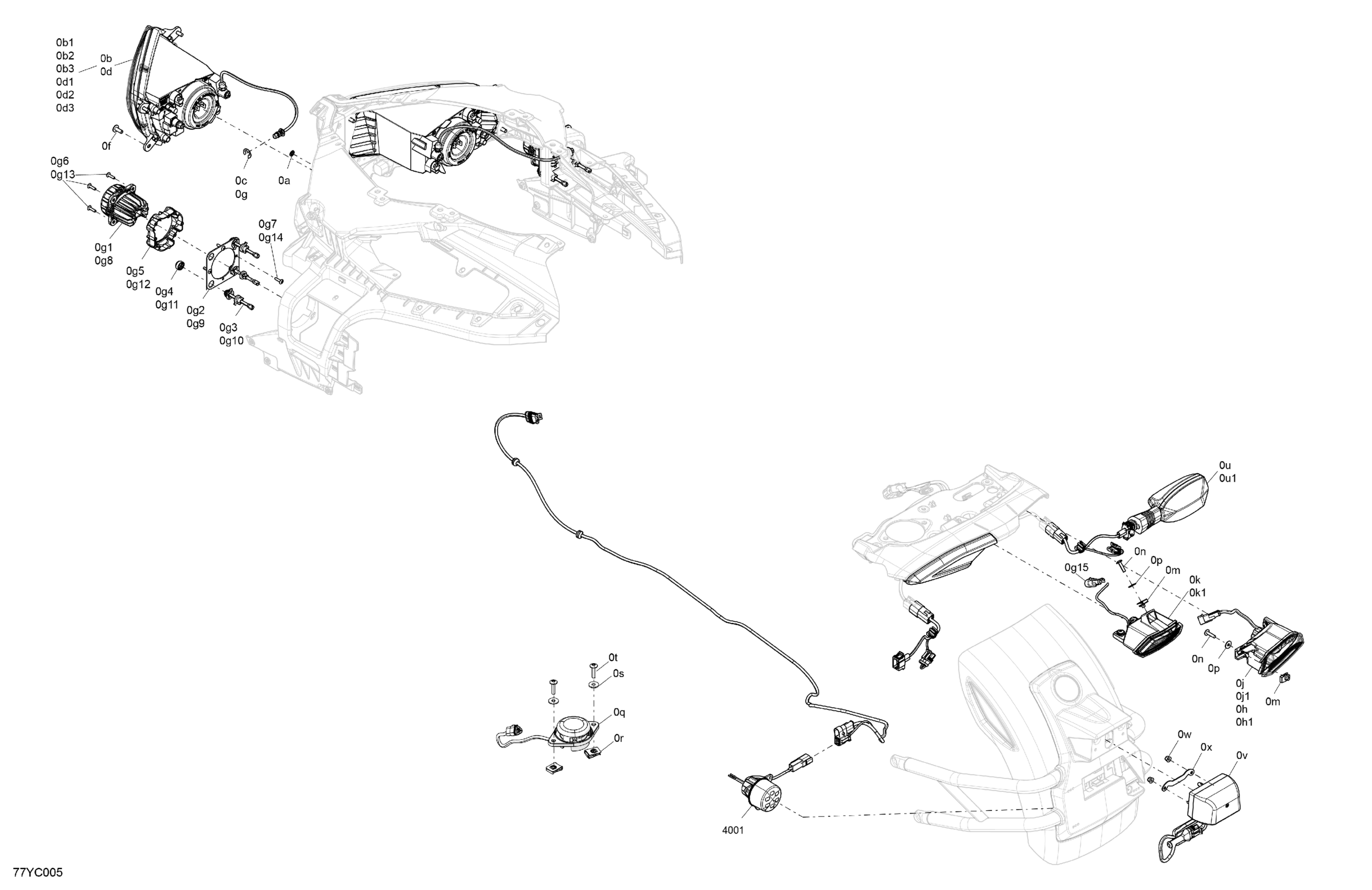

Can-Am F3 SPORT - Manta Green, China, 2023 Electric - Vehicle Lighting Diagram

#

Description
Price

0a

Push Nut

250001189

$1.37

0b

LH Headlight | Includes 0b to 0b3

710006997

$239.99

0b1

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

0b2

Rubber Cap Protector

219800280

$19.49

0b3

Spring

219800281

$3.49

0c

E-Circlip

293370013

$0.65

0d

RH Headlight | Includes 0d to 0d3

710006998

$239.99

0d1

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

0d2

Rubber Cap Protector

219800280

$19.49

0d3

Spring

219800281

$3.49

0f

Torx Truss Screw M6 X 16

250000721

$1.69

0g

E-Circlip

293370013

$0.65

0g1

Low Beam Ass'y

710006007

$349.99

0g2

Headlight Support

710007188

$15.49

0g3

Adjustment Screw

710007200

$10.27

0g4

Clip

293730095

$1.68

0g5

Adapter

710007189

$3.59

0g6

Torx-Truss Pt K40 X 16

250000759

$2.11

0g7

Torx-Truss Pt K40 X 16

250000759

$2.11

0g8

Low Beam Ass'y

710006007

$349.99

0g9

Headlight Support

710007188

$15.49

0g10

Adjustment Screw

710007200

$10.27

0g11

Clip

293730095

$1.68

0g12

Adapter

710007189

$3.59

0g13

Torx-Truss Pt K40 X 16

250000759

$2.11

0g14

Torx-Truss Pt K40 X 16

250000759

$2.11

0g15

Female Housing, 2 Circuits

409209500

$15.27

0h

LH Tail Light | Includes 0h to 0h1

710007001

$58.49

0h1

Flasher Bulb

219800304

$6.66

0j

RH Tail Light | Includes 0j to 0j1

710007003

$61.49

0j1

Flasher Bulb

219800304

$6.66

0k

Back-Up Light | Includes 0k to 0k1

710007005

$70.99

0k1

Bulb 12V 10W

219800322

$8.68

0m

Panel Nut M5 X 0.8

250000958

$4.23

0n

Torx Truss Screw M5 X 20

250000715

$2.11

0p

Stainless Steel Flat Washer M5

234052670

$1.01

0q

Passenger Detection Switch

710008103

$76.99

0r

Panel Nut M6 X 1.0

250100208

$1.46

0s

Stainless Steel Flat Washer

234062670

$2.11

0t

Torx Truss Screw M6 X 25

250000807

$2.11

0u

Amber, Rear Turn Signal | Includes 0u to 0u1

710007006

$83.49

0u1

Flasher Bulb

219800122

$6.66

0v

License Plate Light

710003349

$70.99

0w

Elastic Flange Nut M5

233251494

$2.11

0x

Plate

710004815

$18.49

4001

Fog Light Rear

710007018

$193.49
