Partiron

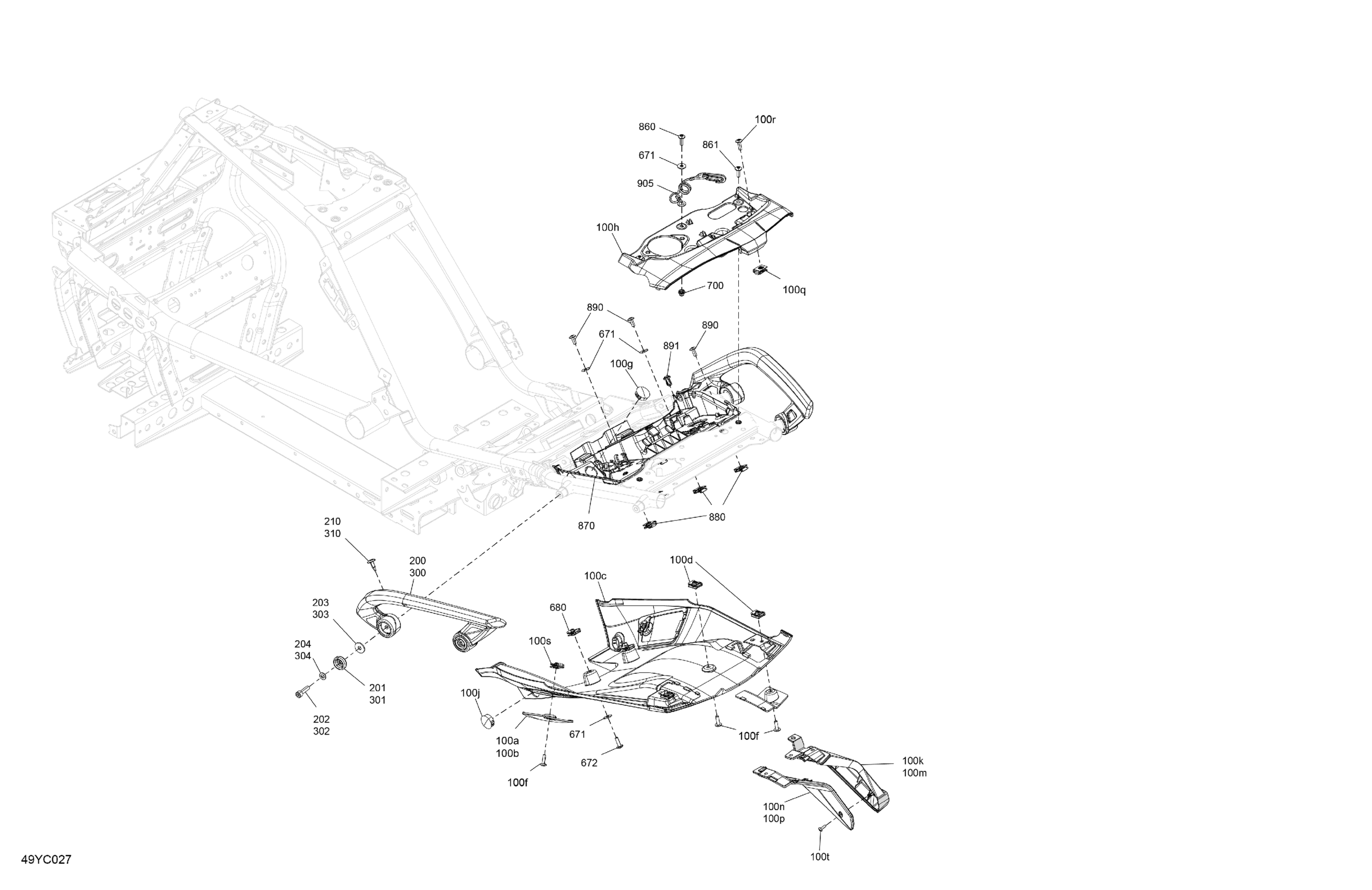

Can-Am F3 SPORT - Manta Green, China, 2023 Body - Cargo Diagram

#

Description
Price

100a

LH Front Cap

708301513

$16.99

100b

RH Front Cap

708301514

$16.99

100c

Under Tail Cover

708001415

$54.99

100d

Panel Nut M6 X 1.0

250100208

$1.46

100f

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

100g

Black, Nylon Cap

414916600

$4.69

100h

Taillight Support

708002814

$26.99

100j

Black, Nylon Cap

414916600

$4.69

100k

LH Support

708001622

$19.49

100m

RH Support

708001623

$19.49

100n

LH Cap Support

708001624

$16.99

100p

RH Cap Support

708001625

$16.99

100q

Panel Nut M6 X 1.0

250100198

$2.11

100r

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

100s

Panel Nut M6 X 1.0

250100208

$1.46

100t

Torx-Truss Pt K40 X 16

250000759

$2.11

200

LH Rear Holding Handle

708003456

$105.99

201

Bushing

708302461

$19.49

202

Socket Head Screw M8 X 30, Scotch Grip

250000823

$2.85

203

Flat Washer 8 mm

234082410

$1.47

204

Stainless Steel Flat Washer 8 mm

234081670

$0.67

210

Tuflock Phillips Plastic Screw

414745900

$1.69

300

RH Rear Holding Handle

708003457

$105.99

301

Bushing

708302461

$19.49

302

Socket Head Screw M8 X 30, Scotch Grip

250000823

$2.85

303

Flat Washer 8 mm

234082410

$1.47

304

Stainless Steel Flat Washer 8 mm

234081670

$0.67

310

Tuflock Phillips Plastic Screw

414745900

$1.69

671

Stainless Steel Flat Washer

234062670

$2.11

672

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

680

Panel Nut M6 X 1.0

250100208

$1.46

700

Threaded Insert M6 X 1.0

250100242

Unavailable

860

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

861

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

870

Cargo Rear Support

708301698

$89.99

880

Panel Nut M6 X 1.0

250100208

$1.46

890

Torx Truss M8 X 16

250000881

$2.11

891

Tuflok Plastic Rivet

293150230

$1.47

905

Retaining Cable Ass'y

708003616

$22.99
