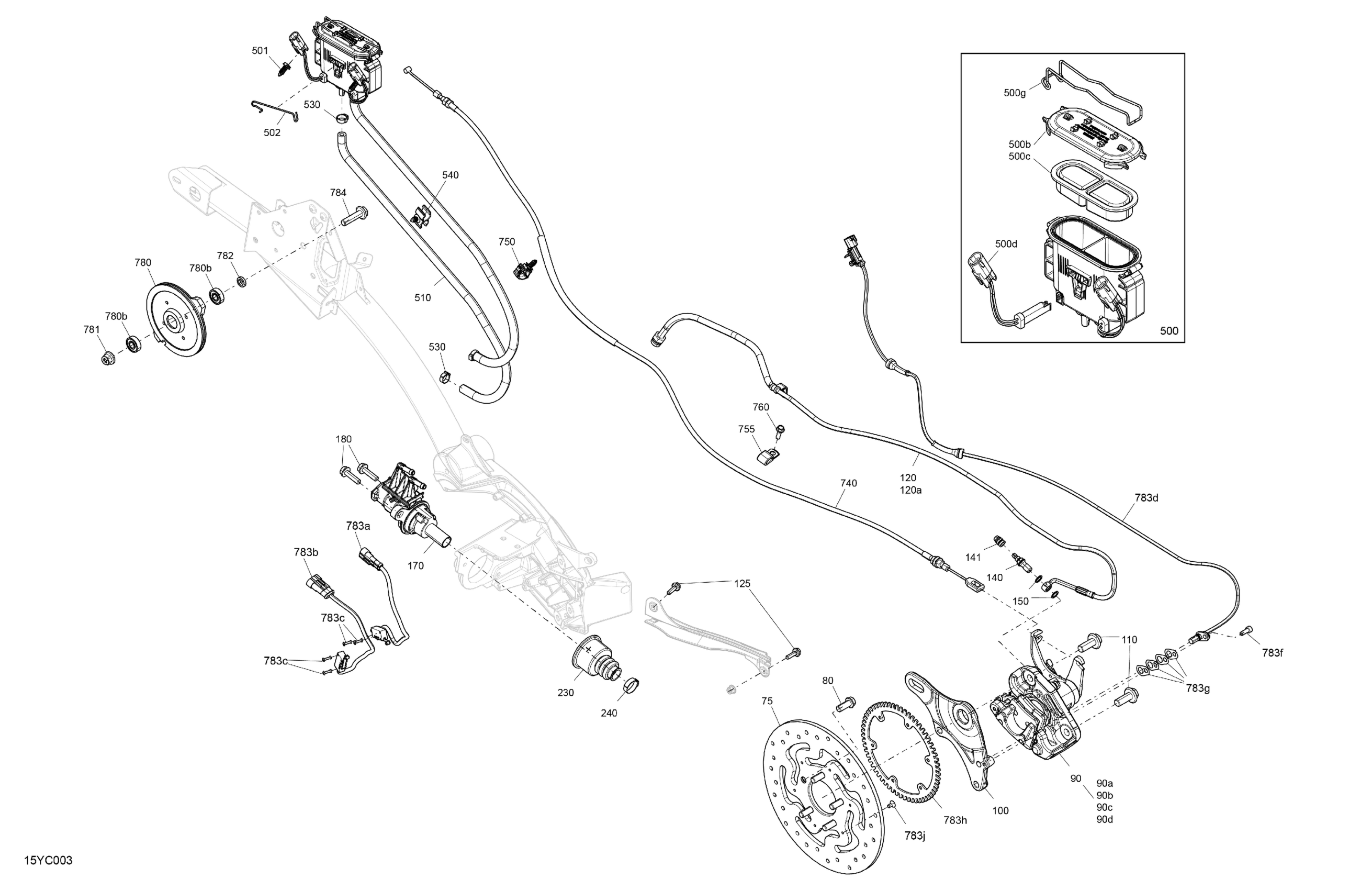

Can-Am F3 SPORT - Manta Green, China, 2023 Mechanic - Rear Brake Diagram

Rear Brake Disk

705601632

$244.99

Hex. Flange Screw M10 X 25

250001054

$14.21

Rear Caliper | Includes 90 to 90d

705600989

$497.99

Brake Pad Kit

219800239

$79.49

Spring/Pin/Clip Kit

219800240

$35.99

Rear Cable Support Kit

219800241

$41.49

Rear Dust Cover

219800242

$32.99

Support Brake Caliper Rear

705601747

$56.99

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$6.14

Flexible Brake Line Rear | Includes 120 to 120a

705601674

$74.99

Clamp

293650256

$5.49

Hex. Flange Screw M6 X 20

207662054

$1.01

Banjo Bolt/ Bleeder

705601201

$19.99

Bleeder Bolt Cap

705601190

$4.44

Washer

414920600

$1.90

Tandem Cylinder Master

705600722

$369.99

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

Bellow

705600716

$12.10

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

Master Cylinder Reservoir Ass'y | Includes 500 to 500h

705601526

$119.99

Diaphragm Cover Ass'y

219800350

$17.59

Diaphragm Cover Ass'y

219800350

$17.59

Oil Level Sensor

705601073

$54.99

Spindle Lock

705601294

$15.81

Push Nut | Not shown

211100002

$2.19

Connector Holder

710002033

$3.39

Stopper Spring

705209087

$6.03

Formed Hose

705601236

$17.49

Crimp Clamp, 15.3-706R

293650047

$3.29

Hose Support

709000571

$4.65

Parking Brake Cable

707001375

$66.99

Harness Support

709000633

$7.19

Open Clamp

515175507

$1.89

Hexagonal Head Screw

210262050

$2.11

Pulley Cable Ass'y | Includes 780 to 780b

705601973

$89.99

Ball Bearing

705601974

$7.49

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

Bushing

293900087

$7.90

Hex. Flange Screw M10 X 40 | Includes 783 to 783j

207604054

$7.27

Brake Light Switch Ass'y

710003412

$46.49

Brake Pressure Switch Ass'y

710001379

$43.49

Pop Rivet

293150150

$2.40

Speed Sensor

710006982

$83.99

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

Shim

710002023

$2.85

Sensor Wheel

705601372

$46.99

Socket Head Screw M5 X 10

205851036

$6.77
