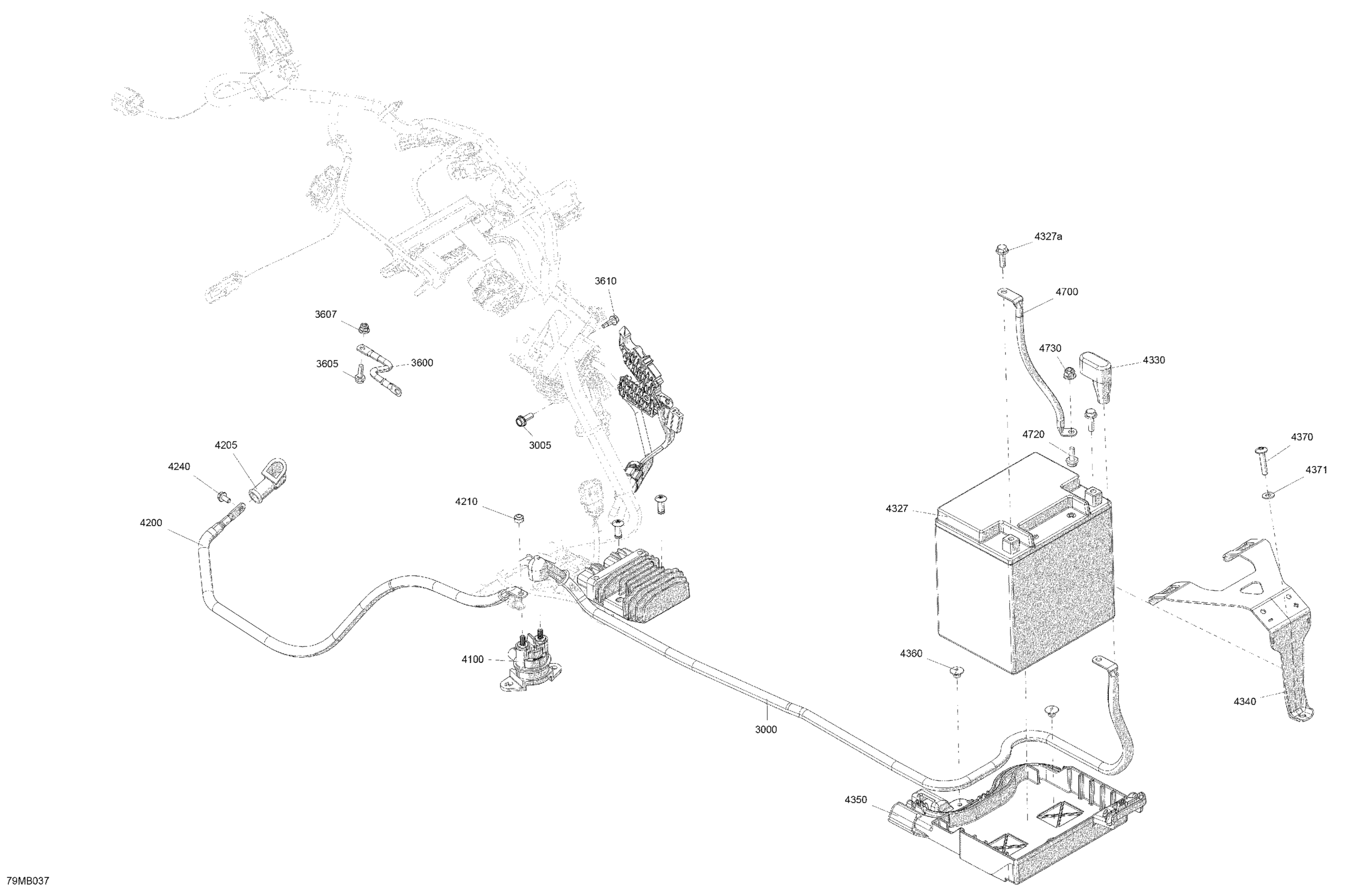

Ski-Doo 010 - EXPEDITION SWT 600R E-TEC - North America, 2022 08- Electric - Lower Section Diagram

Description

Price

3000

Chassis Wiring Harness

515178957

$329.99

3005

Hex. Flange Screw M6 X 16

250001062

$1.57

3600

Ground Wire

515178248

$24.99

3605

Hex. Flange Screw M6 X 20

207662044

$2.00

3607

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

3610

Hex. Flange Screw M5 X 16

250000911

$0.85

4100

Starter Relay

278003012

$42.49

4200

Positive Cable

515178919

$29.99

4205

Protector Cap

710000495

$10.99

4210

Elastic Stop Nut M6

232561434

$1.99

4240

Hex. Flange Screw M5 X 10

207551044

$4.12

4327

Battery | Includes 900 to 900a

515176151

$219.99

4327a

Battery Bolt Kit

515176081

$6.99

4330

Protector Cap | STD

710001817

$11.12

4340

Battery Strip

515178658

$31.99

4350

Battery Support Under

515178659

$15.99

4360

Pop Rivet 3/16"

293150103

$0.55

4370

Torx Truss Screw M6 X 30

250000843

$2.11

4371

Flat Washer

224061121

$0.53

4700

Cable

515178564

$20.99

4720

Hex. Flange Screw M6 X 16

207661644

$0.74

4730

Elastic Flange Nut M6 X 1.0

233261416

$2.11
