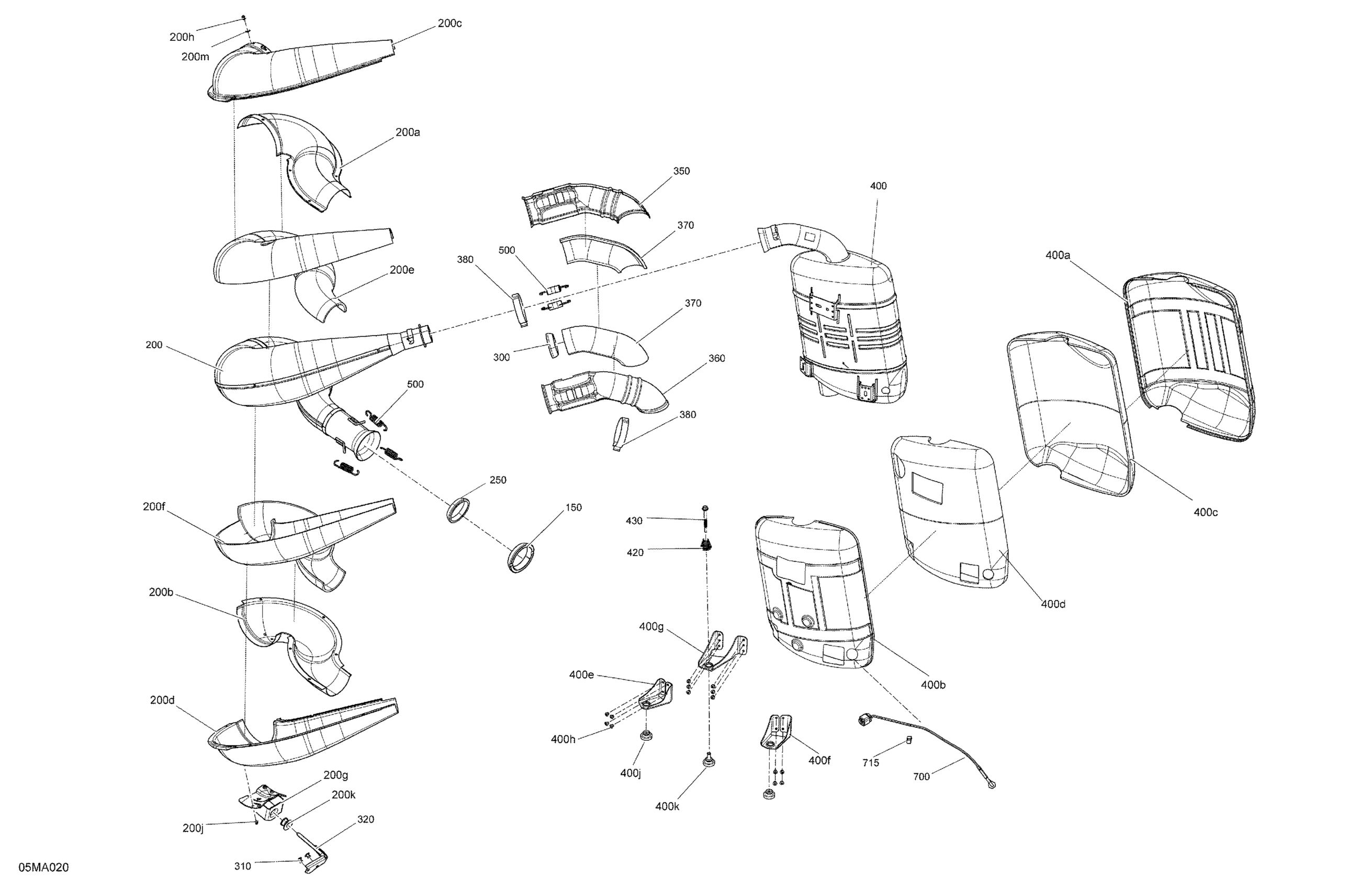

Ski-Doo EXPEDITION SWT 600R E-TEC - 2022 Engine - Exhaust Diagram

Description

Price

150

Exhaust Gasket

514053487

$26.12

200

Pipe_Tuned

514056275

$655.35

200a

Front Upper Aluminum Shell

514055222

$41.51

200b

Shell

514056282

$36.89

200c

Rear Upper Aluminum Shell

514055859

$77.66

200d

Rear Lower Aluminum Shell

514056141

$77.66

200e

Insulated Wool

514055715

$19.20

200f

Glass Wool

514056352

$7.60

200g

Plate

514055844

$5.29

200h

Avex Rivet

390909200

$0.29

200j

Avex Rivet

390909200

$0.29

200k

Rubber

514055632

$2.75

200m

Washer 3/16

514055537

$0.98

250

Seal

514055965

$18.43

300

Exhaust Gasket

514055294

$24.58

310

Hemlock Rivet, 6.5 mm

293150119

$4.00

320

Support

514055214

$9.55

350

Front Shield

514055558

$38.43

360

Rear Shield

514055559

$38.43

370

Wool

514055285

$13.68

380

Clip

514056035

$15.35

400

Muffler Ass'y | Includes 400 to 400n

514056206

$738.43

400a

RH Deflector

514055980

$54.58

400b

LH Deflector

514056199

$54.58

400c

Wool

514055201

$18.43

400d

LH Wool

514056021

$7.18

400e

Front Support

514055785

$12.88

400f

Rear Muffler Support

514056038

$5.23

400g

Support

514056039

$49.99

400h

Pop Rivet 3/16"

390402200

$0.26

400j

Stopper

514055203

$19.20

400k

Stopper Ass'y

514056138

$12.58

420

Spring

514055282

$5.24

430

Hex. Flange Screw M6

250000926

$0.83

500

Spring

514055198

$6.20

700

Exhaust Temperature Sensor

514055884

$141.51

715

Clip

414227300

$1.45
