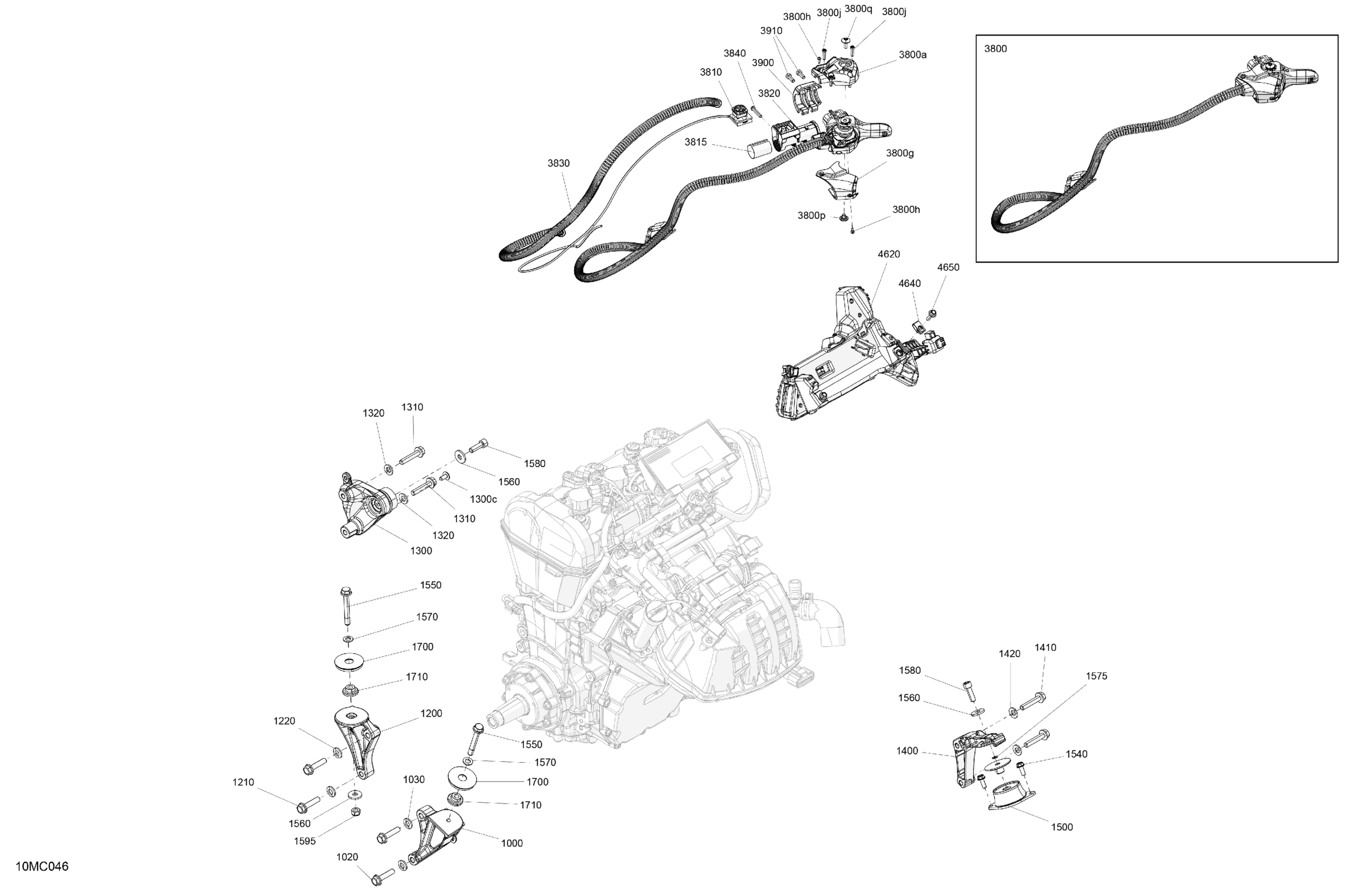

Ski-Doo 010 - EXPEDITION LE 900 ACE - 20 INCH - (AAPD-E-F) - North America, 2023 02- Engine - System Diagram

Rear PTO Support

512061220

$20.99

Hex. Flange Screw M8 X 35

250000986

$2.11

Conical Spring Washer M8

250200146

$1.01

Front PTO Support

512061193

$20.99

Hex. Flange Screw M8 X 35

250000986

$2.11

Conical Spring Washer M8

250200146

$1.01

Engine Support Ass'y | Includes 1300 to 1300c

512061519

$104.99

Torx Truss Screw M6 X 12

250000767

$2.00

Hex. Flange Screw M8 X 40 Scotch.GRIP

250001057

$1.46

Conical Spring Washer M8

250200146

$1.01

Rear Support, Mag

512061194

$21.99

Hex. Flange Screw M8 X 40 Scotch.GRIP

250001057

$1.46

Conical Spring Washer M8

250200146

$1.01

Rubber Mount

512061514

$73.99

Hex. Flange Screw M6 X 16

250001062

$1.57

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$2.11

Yellow, Washer

503183200

$3.19

Flat Washer With Teflon 8 mm

250200008

$3.80

O-Ring

293300123

$1.03

Socket Head Screw M8 X 25

205082544

$1.15

Hex. Elastic Stop Nut M8

232581414

$0.56

Engine Stopper

512061536

$21.99

Spacer

512060285

$19.99

Housing Ass'y | Includes 3800 to 3800q This part replaces 512061261.

512061607

$339.99

Handle Ass'y kit

415130364

$99.99

Cap

512060862

$13.49

Torx Screw M2.9 x 9.5

250000623

$3.17

Torx Screw

250000671

$1.01

Screw

512060961

$11.60

Torx Truss Head Screw W Nylon M5X14

250001059

$2.11

Emergency Stop Switch

515177931

$76.49

Protector

512061214

$2.11

Switch Support

512061453

$9.28

Sheath Corrugated 9 MM ID

515178885

$1.47

Torx Screw #8-18

250000263

$1.04

Front Housing

512060987

$8.57

Torx Screw M5 X 14

250000632

$7.51

Module Support

512061197

$14.83

Panel Nut M5 X 0.8

250000958

$4.23

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19
