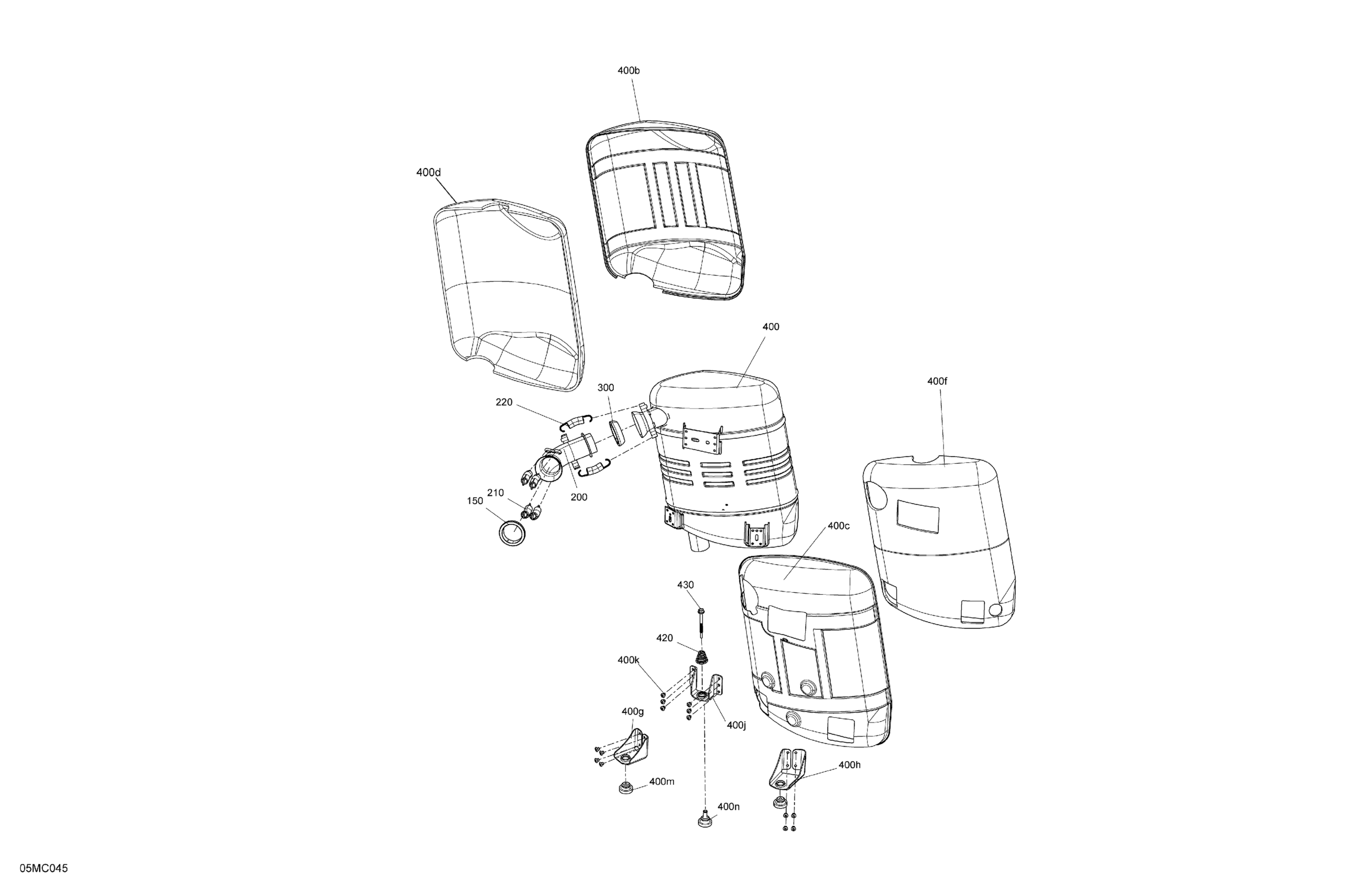

Ski-Doo EXPEDITION LE 900 ACE - 20 INCH - (AAPD-E-F) - 2023 Engine - Exhaust Diagram

Description

Price

150

Exhaust Gasket

707601033

$13.29

200

Pipe

514055475

$394.58

210

Spring

707601834

$6.20

220

Spring

514055198

$6.20

300

Exhaust Gasket

707601033

$13.29

400

Exhaust Muffler Ass'y | Includes 400 to 400n

514056372

$738.43

400b

RH Deflector

514055981

$50.74

400c

LH Deflector

514056330

$53.82

400d

Wool

514055201

$18.43

400f

LH Wool

514056021

$7.18

400g

Front Muffler Support

514056022

$5.23

400h

Rear Muffler Support

514056038

$5.23

400j

Support

514056055

$5.23

400k

Pop Rivet 3/16"

390402200

$0.26

400m

Stopper

514055203

$19.20

400n

Stopper Ass'y

514056138

$12.58

420

Spring

514055282

$5.24

430

Hex. Flange Screw M6

250000926

$0.83
