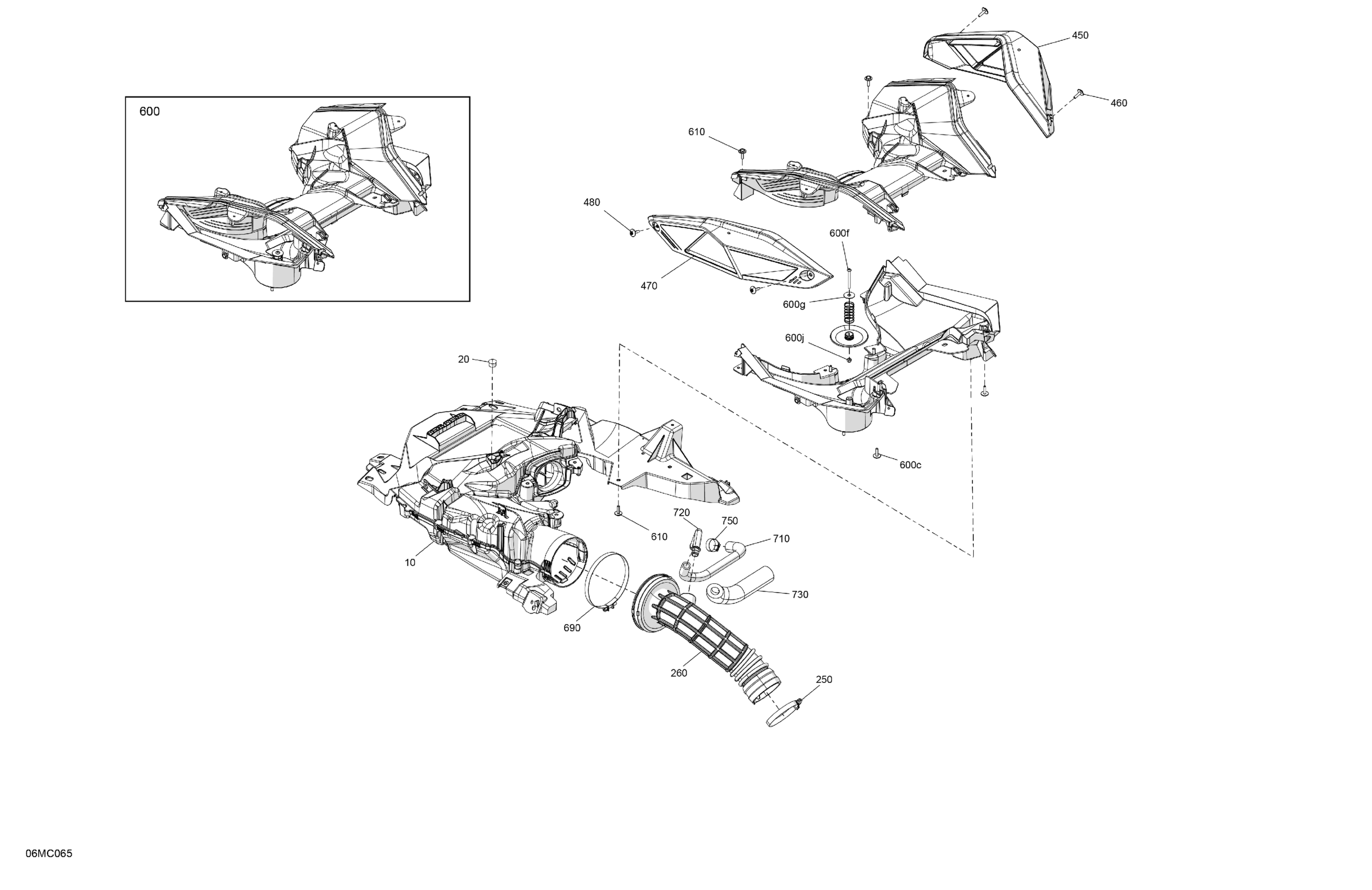

Ski-Doo 010 - EXPEDITION LE 900 ACE - 20 INCH - (AAPD-E-F) - North America, 2023 02- Engine - Air Intake Diagram

Description

Price

Secondary Intake Silencer Ass'y

508001354

$83.99

Cap

572051500

$5.89

250

Norma Clamp

293650079

$11.60

260

Intake Hose

508000855

$43.99

450

RH Air Filter (Nitex Mesh)

508000906

$38.99

460

Screw M4 X 16

250000889

$3.09

470

LH Air Filter (Nitex Mesh)

508000905

$38.99

480

Screw M4 X 16

250000889

$3.09

600

Air Duct Ass'y | Includes 600 to 600j

508001078

$64.99

600c

Screw M4 X 16

250000725

$3.49

600f

Socket Head Screw M4 X 40

205444056

$2.11

600g

Flat Washer

224060201

$1.26

600j

Elastic Stop Nut M4

232541414

$0.58

610

Screw M4 X 16

250000725

$3.49

690

Gemi Clamp

293650247

$7.65

710

Formed Vent Hose

508001112

$14.49

720

Breather

508000811

$14.49

730

Insulating Tube

508000630

$16.49

750

Tridon Gear Clamp

293650172

$3.09
