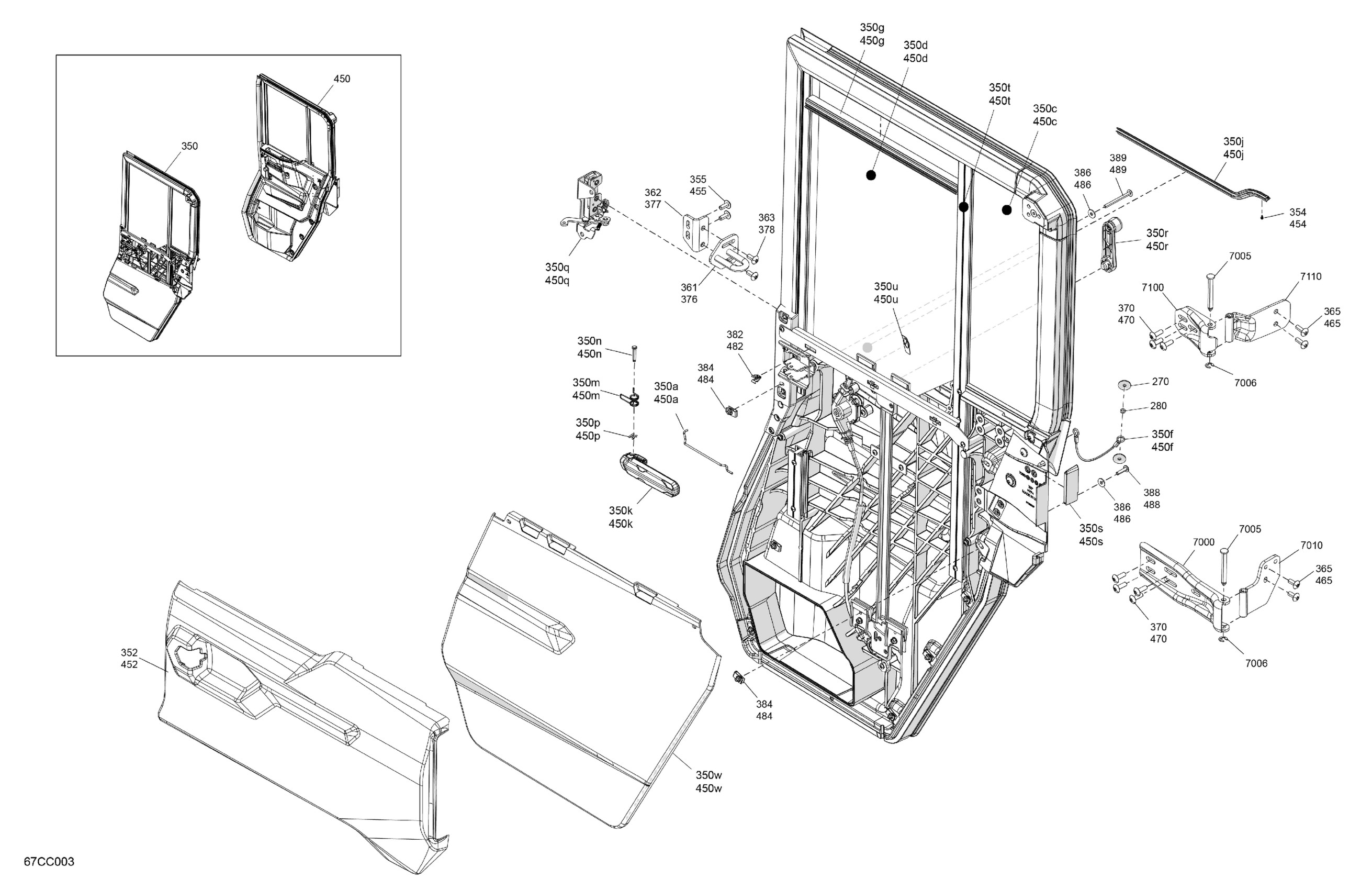

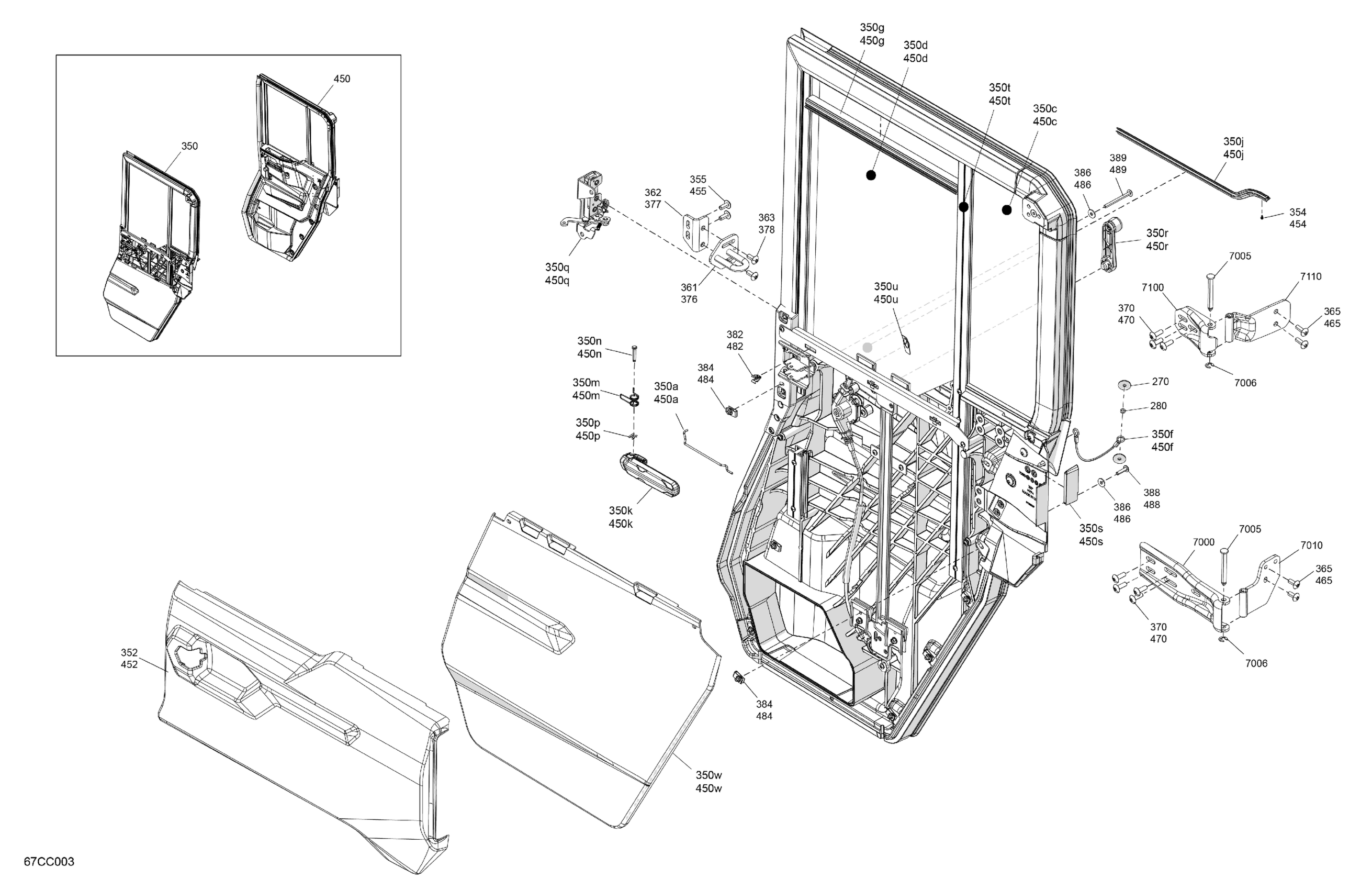

Can-Am 010 - Defender MAX HD10 - LTD CAB - North America, 2023 07- Enclosure Cab - Rear Doors Diagram

#

Description
Price

270

Washer M6

250200029

$2.50

280

Bushing

708300737

$5.99

350

LH Rear Rigid Door Ass'y | Includes 350 to 350v

705801237

$3,229.99

350a

Guide Pin

705801454

$44.99

350c

Rear Door Window

705801373

$369.99

350d

Sliding Cab Window

705801378

$459.99

350f

Retaining Cable

705800903

$10.49

350g

Gasket

705801315

$109.99

350h

Seal | Not Shown

705800727

$279.99

350j

Gasket

705800964

$34.99

350k

Door Handle

705017152

$15.49

350m

Handle Spring

705013062

$14.99

350n

Handle Axle

705207440

$14.49

350p

External Retaining Ring

705601875

$4.09

350q

LH Latch

705800874

$289.99

350r

Window Crank

705800871

$119.99

350s

Trim

705800992

$99.99

350t

Rear Window Guide Extrusion

705800723

$224.99

350u

LH Door Pictogram Label

704909996

Unavailable

350w

LH Lower Door Panel

705800718

$279.99

352

Macchiato Satin, LH Rear Door Panel

705801350

$239.99

352

Asphalt Grey, LH Rear Door Panel

705801423

$239.99

352

Break Up Country, LH Rear Door Panel | Model Break Up Country

705801515

Unavailable

352

Oxford Blue, LH Rear Door Panel | Model Oxford Blue Metallic

705801523

Unavailable

354

Torx Screw ST 2.9 X 6.5 | Not Shown

250001274

$0.93

355

Torx Truss M/S M8 X 20

250000953

$2.11

361

RH Door Sticker

705800853

$53.99

362

LH Striker Support

705800851

$18.99

363

Torx Truss M/S M8 X 20

250000953

$2.11

365

Torx Truss M/S M8 X 20

250000953

$2.11

370

Torx Truss M8 X 25

250000874

$2.11

376

RH Door Sticker

705800853

$53.99

377

RH Support Striker

705800852

$18.99

378

Torx Truss M/S M8 X 20

250000953

$2.11

382

Clip

517306478

$1.09

384

Panel Nut M6 X 1.0

250100198

$2.11

386

Stainless Steel Flat Washer

234062670

$2.11

388

Torx Truss Screw M6 X 25

250000807

$2.11

389

Torx Screw M6 X 70

250000954

$1.90

450

RH Rear Rigid Door Ass'y | Includes 450 to 450v

705801239

$3,489.99

450a

Guide Pin

705801455

$44.99

450c

Rear Door Window

705801376

$369.99

450d

Sliding Cab Window

705801379

$459.99

450f

Retaining Cable

705800903

$10.49

450g

Gasket

705801315

$109.99

450h

Gasket | Not Shown

705801310

$279.99

450j

Gasket

705800964

$34.99

450k

Door Handle

705017152

$15.49

450m

Handle Spring

705013062

$14.99

450n

Handle Axle

705207440

$14.49

450p

External Retaining Ring

705601875

$4.09

450q

RH Latch

705800875

$289.99

450r

Window Crank

705800871

$119.99

450s

Trim

705800993

$99.99

450t

Rear Window Guide Extrusion

705800723

$224.99

450u

RH Door Pictogram Label

704909998

Unavailable

450w

RH Lower Door Panel

705800719

$239.99

452

Macchiato Satin, RH Rear Door Panel

705801351

$239.99

452

Asphalt Grey, RH Rear Door Panel

705801424

$239.99

452

Break Up Country, RH Rear Door Pamel | Model Break Up Country

705801516

Unavailable

452

Oxford Blue, RH Rear Door Panel | Model Oxford Blue Metallic

705801524

Unavailable

454

Torx Screw ST 2.9 X 6.5 | Not Shown

250001274

$0.93

455

Torx Truss M/S M8 X 20

250000953

$2.11

465

Torx Truss M/S M8 X 20

250000953

$2.11

470

Torx Truss M8 X 25

250000874

$2.11

482

Clip

517306478

$1.09

484

Panel Nut M6 X 1.0

250100198

$2.11

486

Stainless Steel Flat Washer

234062670

$2.11

488

Torx Truss Screw M6 X 25

250000807

$2.11

489

Torx Screw M6 X 70

250000954

$1.90

7000

Door Hinge

705800751

$39.99

7005

Hinge Pin

705800781

$0.58

7006

Retaining Ring

293370125

$2.59

7010

Lower Hinge

705801025

$40.99

7100

Upper Door Hinge

705800752

$43.99

7110

Upper Door Hinge

705800755

$31.99
