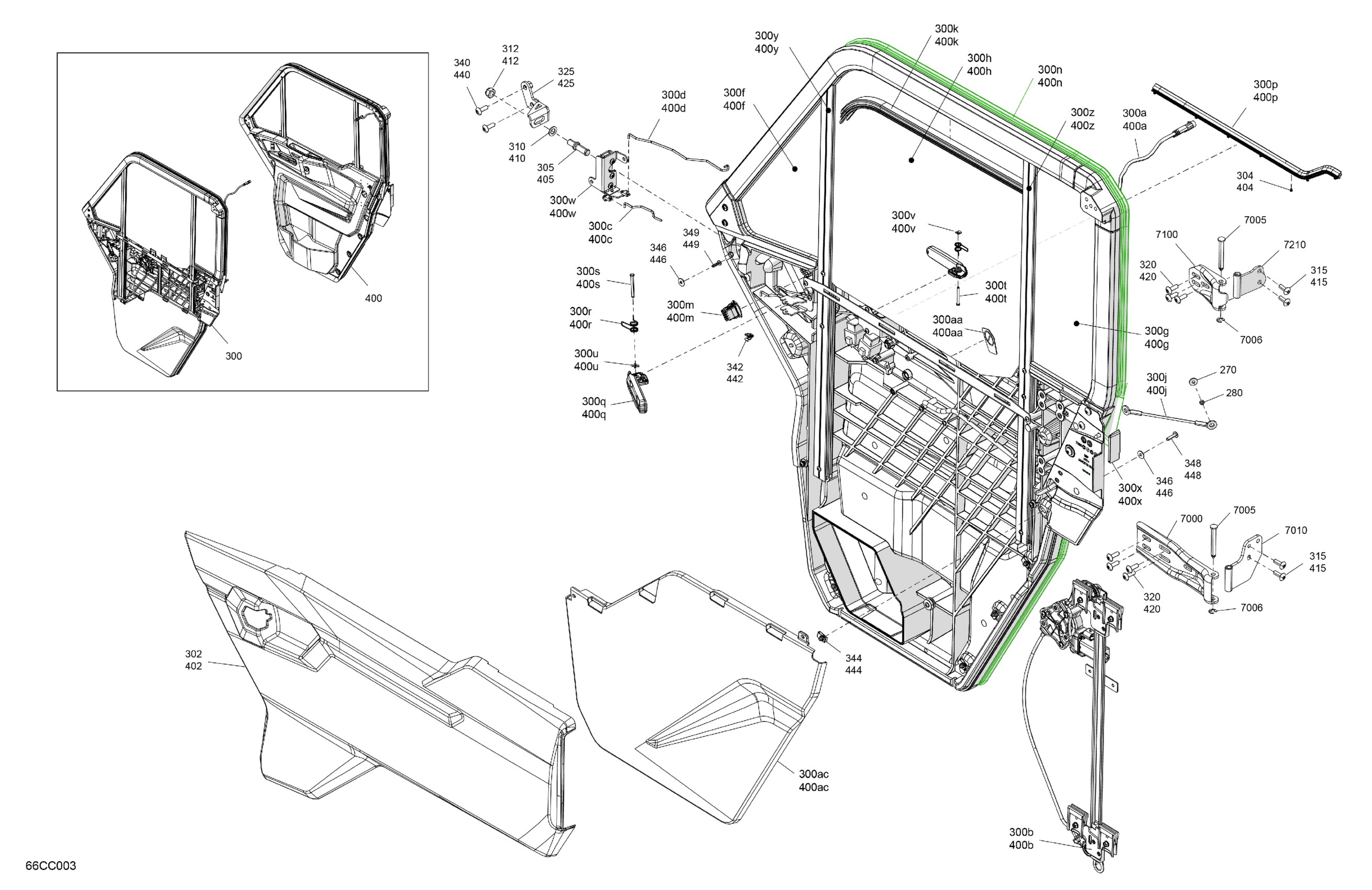

Can-Am 010 - Defender MAX HD10 - LTD CAB - North America, 2023 07- Enclosure Cab - Front Doors Diagram

Washer M6

250200029

$2.50

Bushing

708300737

$5.99

LH Front Rigid Door Ass'y | Includes 300 to 300ac

705801088

$2,909.99

LH Door Wiring Harness

705800881

$239.99

LH Front Window Actuator

705801143

$829.99

Guide Pin

705801358

$44.99

Guide Pin

705801452

$44.99

Front Door Window

705800863

$369.99

Rear Door Window

705800864

$369.99

Sliding Cab Window

705800865

$489.99

Retaining Cable

705801437

$9.99

Gasket

705801312

$109.99

Window Switch

710004979

$35.99

Gasket

705800866

$239.99

Gasket

705800963

$34.99

Door Handle

705017152

$15.49

Handle Spring

705013062

$14.99

Handle Axle

705207440

$14.49

Guide Pin

705801393

$44.99

External Retaining Ring

705601875

$4.09

External Retaining Ring

705602261

Unavailable

LH Latch

705800872

$409.99

Trim

705800992

$99.99

Front Window Guide Extrusion

705800722

$224.99

Rear Window Guide Extrusion

705800723

$224.99

LH Door Pictogram Label

704909996

Unavailable

LH Lower Door Panel

705800716

$239.99

Macchiato Satin, LH Upper Door Panel

705801348

$379.99

Asphalt Grey, LH Upper Door Panel

705801421

$244.99

Break Up Country, LH Upper Door Panel | Model Break Up Country

705801513

Unavailable

Oxford Blue, LH Upper Door Panel | Model Oxford Blue Metallic

705801521

Unavailable

Torx Screw ST 2.9 X 6.5 | Not Shown

250001274

$0.93

Rod Latch

705800850

$29.99

Conical Spring Washer M12

250200005

$3.27

Elastic Stop Nut M12

232521416

$1.69

Torx Truss M8 X 25

250000874

$2.11

Torx Truss M8 X 25

250000874

$2.11

LH Front Striker Support

705801086

$44.99

Torx Truss M8 X 25

250000874

$2.11

Clip

517306478

$1.09

Panel Nut M6 X 1.0

250100198

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Torx Truss Screw M6 X 25

250000807

$2.11

Torx Screw Truss Head K50X20 T20

250000760

$2.11

RH Front Rigid Door Ass'y | Includes 400 to 400ac

705801089

$2,739.99

RH Door Wiring Harness

705800882

$254.99

RH Front Window Actuator

705801144

$829.99

Guide Pin

705801358

$44.99

Guide Pin

705801453

$44.99

Front Door Window

705801375

$369.99

Rear Door Window

705801376

$369.99

Sliding Cab Window

705801377

$459.99

Retaining Cable

705801437

$9.99

Gasket

705801312

$109.99

Window Switch

710004979

$35.99

Gasket

705801443

$239.99

Gasket

705800963

$34.99

Door Handle

705017152

$15.49

Handle Spring

705013062

$14.99

Handle Axle

705207440

$14.49

Guide Pin

705801393

$44.99

External Retaining Ring

705601875

$4.09

External Retaining Ring

705602261

Unavailable

RH Latch

705800873

$409.99

Trim

705800993

$99.99

Front Window Guide Extrusion

705800722

$224.99

Rear Window Guide Extrusion

705800723

$224.99

RH Door Pictogram Label

704909998

Unavailable

RH Lower Door Panel

705800717

$239.99

Macchiato Satin, RH Upper Door Panel

705801349

$379.99

Asphalt Grey, RH Upper Door Panel

705801422

$244.99

Break Up Country, RH Upper Door Panel | Model Break Up Country

705801514

Unavailable

Oxford Blue, RH Upper Door Panel | Model Oxford Blue Metallic

705801522

$274.99

Torx Screw ST 2.9 X 6.5 | Not Shown

250001274

$0.93

Rod Latch

705800850

$29.99

Conical Spring Washer M12

250200005

$3.27

Elastic Stop Nut M12

232521416

$1.69

Torx Truss M8 X 25

250000874

$2.11

Torx Truss M8 X 25

250000874

$2.11

RH Front Striker Support

705801097

$44.99

Torx Truss M8 X 25

250000874

$2.11

Clip

517306478

$1.09

Panel Nut M6 X 1.0

250100198

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Torx Truss Screw M6 X 25

250000807

$2.11

Torx Screw Truss Head K50X20 T20

250000760

$2.11

Door Hinge

705800751

$39.99

Hinge Pin

705800781

$0.58

Retaining Ring

293370125

$2.59

Lower Hinge

705801025

$40.99

Upper Door Hinge

705800752

$43.99

Upper Door Hinge

705800756

$47.99
