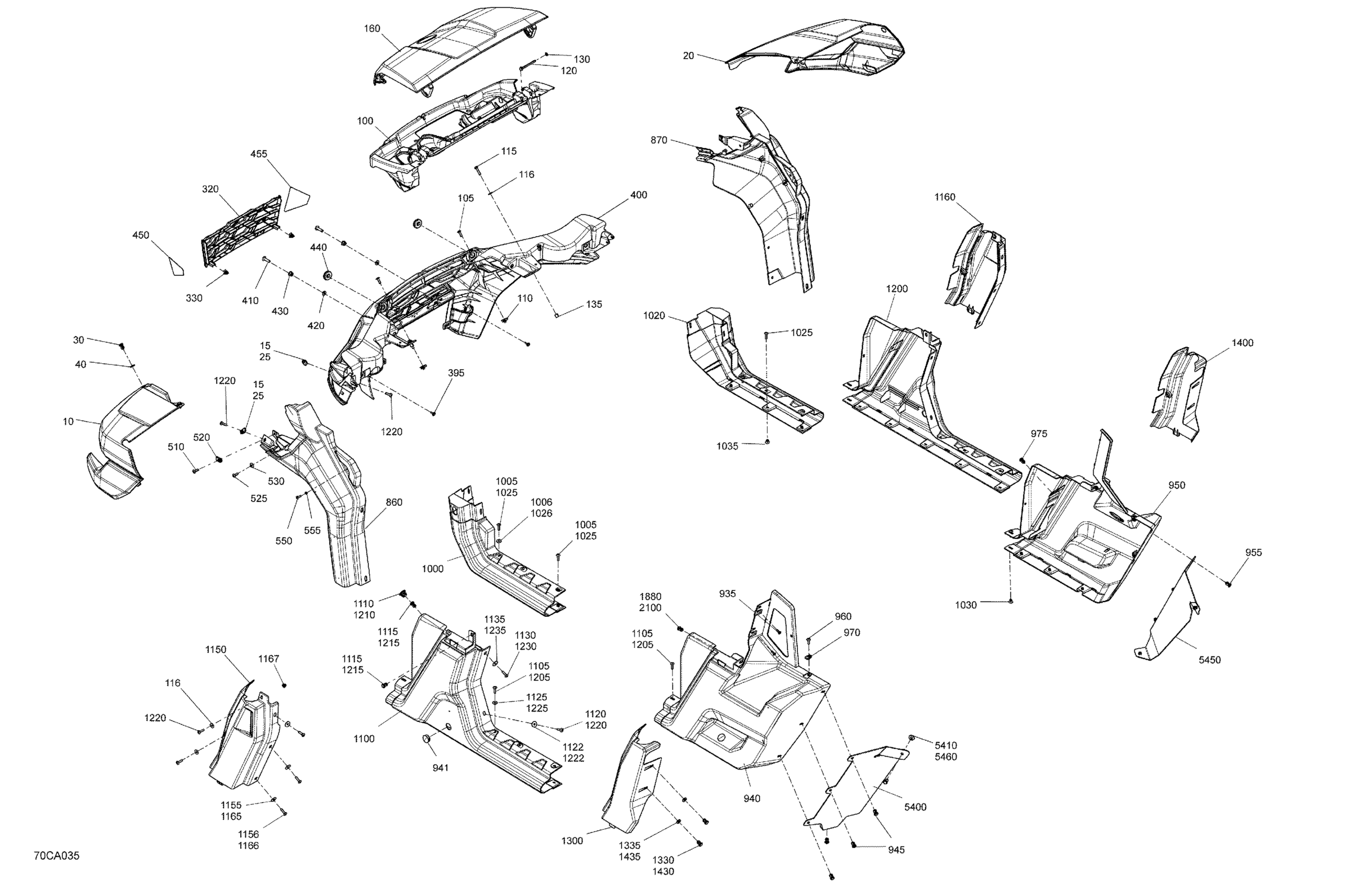

Can-Am Defender MAX HD10 - DPS_XT_Lone Star - 2021 Body - System Diagram

#

Description
Price

10

Timeless Black, LH Front Fender

705015673

$184.30

10

Break Up Country, LH Front Fender | Camo Model

705017041

$184.30

10

Asphalt Grey, LH Front Fender

705016418

$184.30

10

Oxford Blue Metallic, LH Front Fender | Model Oxlord Blue Metallic

705015679

$184.30

10

Boreal Green, LH Front Fender | Boreal Green

705015681

$184.30

15

Panel Nut M6 X 1.0

250100198

$1.99

20

Timeless Black, RH Front Fender

705015674

$184.30

20

Break Up Country, RH Front Fender | Camo Model

705017040

$184.30

20

Asphalt Grey, RH Front Fender

705016421

$184.30

20

Oxford Blue Metallic, RH Front Fender | Model Oxlord Blue Metallic

705015680

$184.30

20

Boreal Green, RH Front Fender | Boreal Green

705014053

$184.30

25

Panel Nut M6 X 1.0

250100198

$1.99

30

Tuflok Plastic Rivet

293150230

$1.39

40

Washer

503192494

$3.01

100

Multi Purpose Support

705013766

$39.52

105

Torx Screw M6 X 20

250000722

$1.54

110

Panel Nut M6 X 1.0

250100198

$1.99

115

Hex. Flange Screw M6 X 30 | International

210263050

$1.87

116

Stainless Steel Flat Washer

234062670

$2.00

120

Hex. Flange Screw M6 X 75

207667554

$4.15

130

Push Nut

732610072

$1.97

135

Bushing

293900125

$2.69

160

Timeless Black, Front Hood

705015666

$340.27

160

Break Up Country, Front Hood

705013726

$462.66

160

Asphalt Grey, Front Hood

705016424

$337.28

160

Oxford Blue Metallic, Front Hood | Model Oxlord Blue Metallic

705015669

$340.27

160

Boreal Green, Front Hood | Boreal Green

705014058

$329.07

320

Grille

705013590

$23.85

330

Clip

517306478

$1.03

395

Screw M4 X 16

250000725

$3.30

400

Deep Black, Front Fascia

705013591

$206.69

410

Torx Screw M8 X 30

250000886

$2.00

420

Washer

503192494

$3.01

430

Hex. Flange Elastic Nut M8

233281414

$1.31

440

Grommet

705010718

$2.69

450

LH Front Reflector

704905072

$10.82

455

RH Front Reflector

704905073

$10.82

510

Torx Screw M6 X 20

250000722

$1.54

520

Panel Nut M6 X 1.0

250100198

$1.99

525

Torx Screw M6 X 20

250000722

$1.54

530

Stainless Steel Flat Washer

234062670

$2.00

550

Torx Screw K50 X 16

250000720

$1.60

555

Flat Washer M5

234051670

$2.00

860

LH Front Lateral Panel

705008152

$55.94

870

RH Front Lateral Panel

705008153

$55.94

935

Torx Screw K50 X 16

250000720

$1.60

940

Deep Black, LH Rear Body Panel

705013658

$99.22

941

Black, Nylon Cap

414916600

$4.19

945

Tuflok Plastic Rivet

293150230

$1.39

950

Deep Black, RH Rear Body Panel

705013659

$99.22

955

Tuflok Plastic Rivet

293150230

$1.39

960

Torx Screw M6 X 20

250000722

$1.54

970

Panel Nut M6 X 1.0

250100198

$1.99

975

Tuflok Plastic Rivet

293150230

$1.39

1000

Deep Black, LH Central Panel

705019037

$64.15

1005

Torx Truss Screw M6 X 25

250000807

$2.00

1006

Stainless Steel Flat Washer

234062670

$2.00

1020

Deep Black, RH Central Panel

705019038

$67.13

1025

Torx Truss Screw M6 X 25

250000807

$2.00

1026

Stainless Steel Flat Washer

234062670

$2.00

1030

Pop Rivet 3/16”

293150108

$1.19

1035

Pop Rivet 3/16”

293150108

$1.19

1100

LH Middle Side Panel

705013660

$99.22

1105

Torx Truss Screw M6 X 25

250000807

$2.00

1110

Insert

707900133

$2.89

1115

Tuflok Plastic Rivet

293150230

$1.39

1120

Torx Truss Screw M6 X 25

250000807

$2.00

1122

Flat Washer M6.6 X 22

250200162

$2.19

1125

Stainless Steel Flat Washer

234062670

$2.00

1130

Torx Truss Screw M6 X 25

250000807

$2.00

1135

Flat Washer M6.6 X 22

250200162

$2.19

1150

LH Middle Cage Cover

705010601

$35.04

1155

Flat Washer M6.6 X 22

250200162

$2.19

1156

Torx Truss Screw M6 X 25

250000807

$2.00

1160

RH Middle Cage Cover

705010602

$35.04

1165

Flat Washer M6.6 X 22

250200162

$2.19

1166

Torx Truss Screw M6 X 25

250000807

$2.00

1167

Insert Half Hex Body M6 x 1.0

250100199

$2.91

1200

RH Middle Side Panel

705013661

$99.22

1205

Torx Truss Screw M6 X 25

250000807

$2.00

1210

Insert

707900133

$2.89

1215

Tuflok Plastic Rivet

293150230

$1.39

1220

Torx Truss Screw M6 X 25

250000807

$2.00

1222

Flat Washer M6.6 X 22

250200162

$2.19

1225

Stainless Steel Flat Washer

234062670

$2.00

1230

Torx Truss Screw M6 X 25

250000807

$2.00

1235

Flat Washer M6.6 X 22

250200162

$2.19

1300

LH Rear Cage Cover Kit

715003564

$73.85

1330

Tuflok Plastic Rivet

293150230

$1.39

1335

Washer

503192494

$3.01

1400

RH Rear Cage Cover Kit | Includes 1160 to 1160a

715003565

$73.85

1430

Tuflok Plastic Rivet

293150230

$1.39

1435

Washer

503192494

$3.01

1880

Tuflok Plastic Rivet

293150230

$1.39

2020

Central Skid Plate

705009151

$52.96

2025

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

2030

Connection Plate

705010884

$28.33

2040

Rear Skid Panel

705017205

$139.52

2045

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

2050

Lateral Skid Plate

705010422

$80.57

2055

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

2060

Rear Side Skid Plate

705010587

$80.57

2065

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

2070

Rear Central Skid Plate

705010588

$57.43

2075

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

2100

Tuflok Plastic Rivet

293150230

$1.39

5400

LH Rear Deflector

705016336

$46.24

5410

Flat Washer 8 mm, Nylon

292001663

$1.36

5450

RH Rear Deflector

705016337

$46.24

5460

Flat Washer 8 mm, Nylon

292001663

$1.36

5500

Front Roof

705800066

$456.69

5501a

Was 293250361 Gasket

219704379

$70.87

5502a

Outer Seal

705800054

$32.06

5510

Rear Roof

705800067

$313.40

5511a

Outer Seal

705800054

$32.06

5512a

Outer Seal

705800054

$32.06

5520

Torx Truss M8 X 25

250000874

$2.00

5521

Flat Washer 8 mm

234082410

$1.27

5522

Hex. Nut M8

232081414

$0.69
