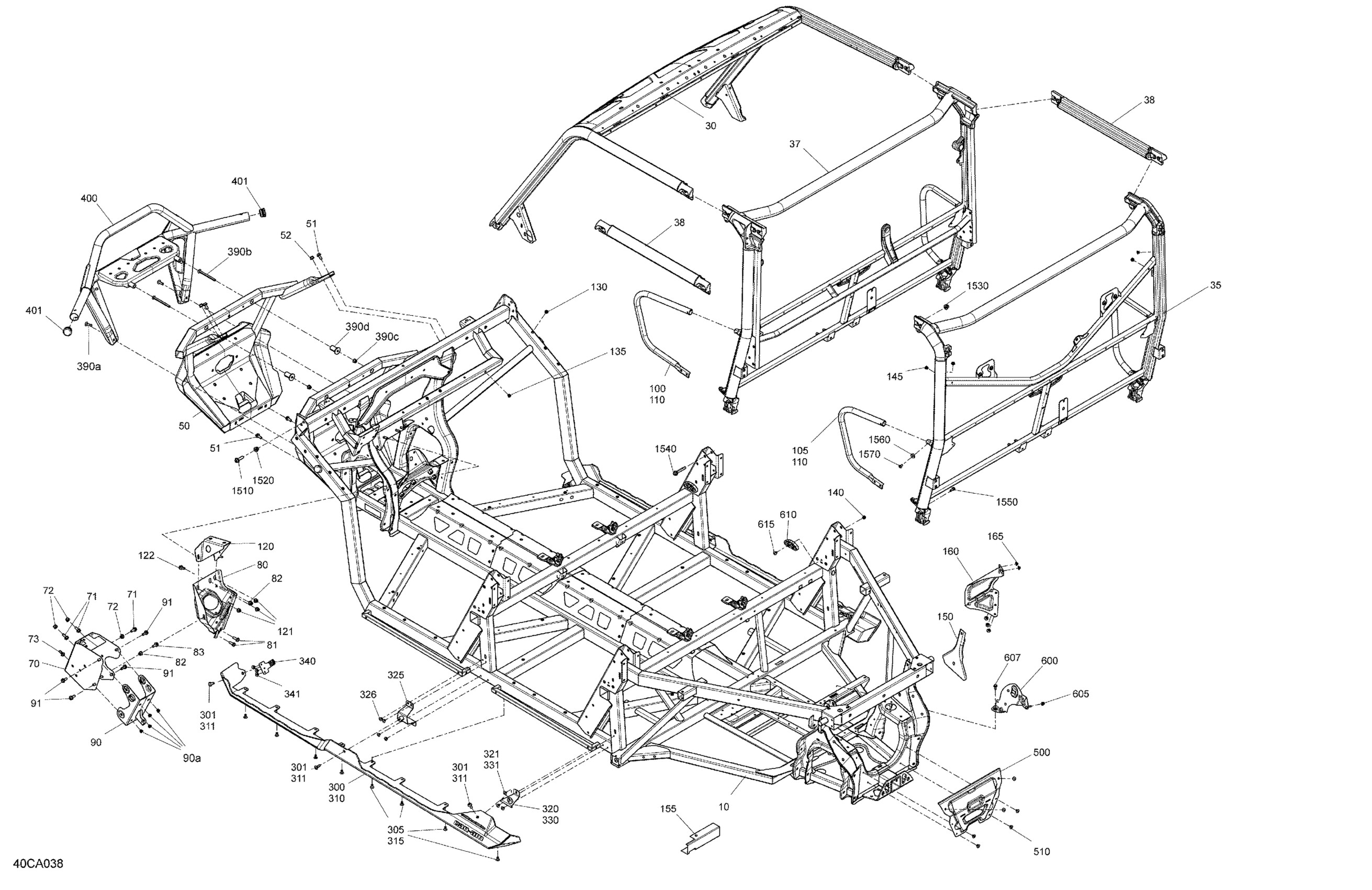

Can-Am Defender MAX HD10 - DPS_XT_Lone Star - 2021 Frame - System Diagram

#

Description
Price

10

Deep Black, Chassis Kit

715009071

$2,589.99

30

Front Cage Service Kit

715008358

$649.99

35

Rear Cage Profile Ass'y

715007384

$649.99

37

Deep Black, Central Cage Ass'y

715006667

$739.99

38

Deep Black, Cage Extension

705209848

$41.99

40

Deep Black, Front Bumper

715005754

$350.72

50

Deep Black, Front Bumper

705207588

$493.25

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

52

Hex. Elastic Flange Nut M8

233281416

$1.43

70

Module Support

705209388

$50.72

71

Hex. Flange Screw M8 X 20

207682044

$1.06

72

Hex. Elastic Flange Nut M8

233281416

$1.43

73

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

80

Power Steering Support

705208741

$63.40

81

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

82

Hex. Elastic Flange Nut M8

233281416

$1.43

83

Hex. Flange Screw M8 X 20

207682044

$1.06

90

Steering Column Support | Includes 90 to 90d

705209190

$33.55

90a

Insert Half Hex Body M6 x 1.0

250100199

$2.91

91

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

100

Deep Black, LH Protector Tube

705204594

$41.01

105

LH Side Protect

705204590

$43.25

110

Deep Black, RH Protector Tube

705204592

$41.01

120

Support

705208742

$27.58

121

Hex. Elastic Flange Nut M8

233281416

$1.43

122

Hex. Flange Screw M8 X 20

207682044

$1.06

130

Insert Half Hex Body M6 x 1.0

250100199

$2.91

135

Insert Half Hex Body M6 x 1.0

250100199

$2.91

140

Insert Half Hex Body M6 x 1.0

250100199

$2.91

145

Insert Half Hex Body M6 x 1.0

250100199

$2.91

150

Heat Shield

705014849

$2.59

155

Heat Shield

705015496

$2.59

160

Heat Shield

707002717

$46.24

165

Pop Rivet 3/16"

293150103

$0.52

300

Deep Black, LH Guard Panel

705208715

$274.60

301

Torx Truss M8 X 25

250000874

$2.00

305

Pop Rivet 3/16”

293150108

$1.19

310

Deep Black, RH Guard Panel

705208716

$274.60

311

Torx Truss M8 X 25

250000874

$2.00

315

Pop Rivet 3/16”

293150108

$1.19

320

LH Rock Slider Support

705206342

$41.01

321

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

325

Support Guard

705207220

$18.63

326

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

330

RH Rock Slider Support

705206343

$40.27

331

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

340

Front Guard Support

705208661

$4.81

341

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

390a

Torx Screw M8 X 30

250000886

$2.00

390b

Torx Truss M/S M8 x X 100

250001106

$6.34

390c

Hex. Flange Elastic Nut M8

233281414

$1.31

390d

Spacer

705207754

$11.72

400

Deep Black, Front Bumper

715005754

$350.72

400

Deep Black, Front Bumper

715006143

$344.00

401

Cap

705202455

$4.27

500

Rear Chassis Reinforcement

705207753

$30.57

510

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

600

Voltage Regulator Support

710007522

$15.64

605

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

607

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

610

Spacer

705208203

$17.13

615

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1510

Hex. Flange Screw M10 X 35

250000855

$1.67

1520

Hex. Flange Elastic Nut M10

233201436

$2.00

1530

Flange Elastic Nut M10

233201466

$3.01

1540

Hex. Flange Screw M10 X 6

207606046

$3.88

1550

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

1560

Offset Washer

705202223

$4.09

1570

Torx Truss M6X14

250000789

$5.06
