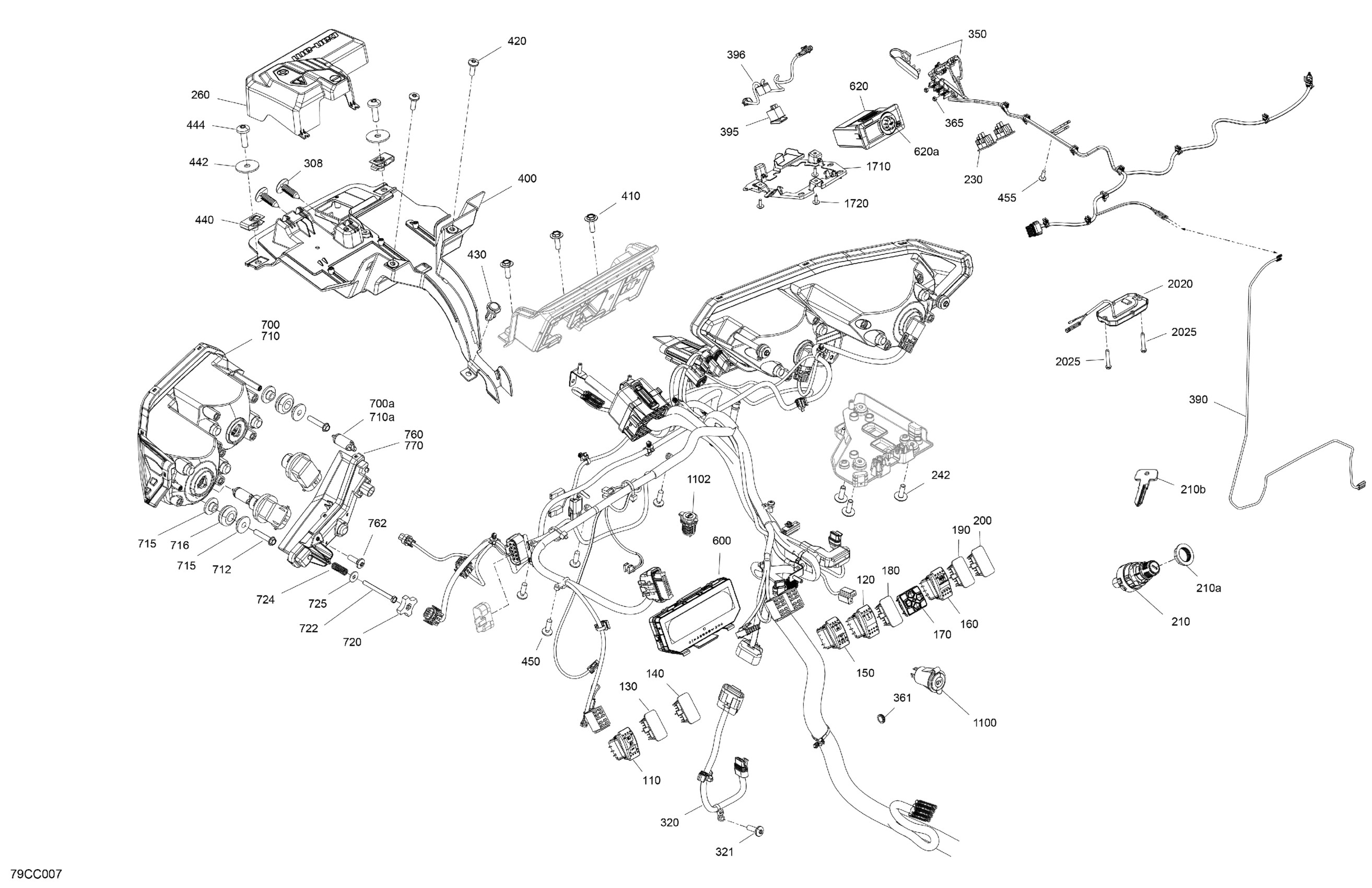

Can-Am Defender HD10 - LTD CAB - 2023 Electric - Front Section Diagram

#

Description
Price

110

Light Switch

710004492

$44.00

120

Switch Winch

710002052

$28.18

130

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

140

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

150

Switch 2X4

710005489

$29.82

160

Differential Lock Switch

710005470

$42.51

170

Multifonction Switch

710006650

$81.31

180

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

190

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

200

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

210

Ignition Switch | Includes 210 to 210b

710007324

$61.16

210a

Specialized Nut

710007923

$1.99

210b

Blank Ignition Key

715900934

$17.13

230

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

242

Screw PT Type K-50 X 16

250000959

$1.74

260

Junction Block Cover

710006707

$5.90

308

Black, Dart

293730006

$0.81

320

Throttle Pedal Harness

710006837

$211.91

321

Torx Screw K50 X 16

250000720

$1.39

350

Window/Wiper Harness

710004462

$80.99

361

Boot

710002743

$3.29

365

Elastic Stop Nut M6, Brass

232561200

$3.51

390

Wiper Harness

710004466

$31.31

395

Wiper Switch

710004941

$42.51

396

Wiper Harness

710004942

$38.78

400

Wiring Harness Support

710006649

$21.61

410

Screw PT Type K-50 X 16

250000959

$1.74

420

Torx Screw K50 X 16

250000720

$1.39

430

Tuflok Plastic Rivet

293150230

$1.21

440

Panel Nut M6 X 1.0

250100198

$1.73

442

Washer M6

250200029

$1.78

444

Torx Screw M6 X 20

250000712

$1.74

450

Screw PT Type K-50 X 16

250000959

$1.74

455

Torx Screw K50 X 16

250000720

$1.39

600

Multifunction Gauge MID | Model XTP

710007409

$325.34

620

A/C Control Unit | Includes 620 to 620a

710009400

$601.46

620a

Replacement Control Knob

715900906

$6.45

700

LH Beam | Includes 700 to 700a

710008316

$177.58

700a

Halogen Bulb H8 12V 35W Blue

715900653

$42.51

710

RH Beam | Includes 710 to 710a

710008317

$177.58

710a

Halogen Bulb H8 12V 35W Blue

715900653

$42.51

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

715

Shoulder Bushing

710004749

$2.69

716

Overmolded Grommet

293720130

$4.25

720

Handle

572106600

$9.03

722

Hex. Screw K40 X 45

250000718

$1.74

724

Spring

517168600

$6.70

725

Flat Washer 4 mm, Stainless

234042600

$0.92

760

LH Auxiliary LED Headlight

710006374

$172.36

762

Screw PT Type K-50 X 16

250000959

$1.74

770

RH Auxiliary LED Headlight

710006375

$172.36

1100

12V Power Outlet

710005374

$27.27

1102

USB Outlet

219400510

$40.92

1710

FDM Support

710005532

$6.73

1720

Screw PT Type K-50 X 16

250000959

$1.74

2020

Dome Light

715002455

$94.30

2025

Hex. Flange Screw K40 X 25

241142560

$2.17
