Description

Price

270

Washer M6

250200029

$2.50

280

Bushing

708300737

$5.99

300

LH Front Rigid Door Ass'y | Includes 300 to 300ac

705801088

$2,909.99

300a

LH Door Wiring Harness

705800881

$239.99

300b

LH Front Window Actuator

705801143

$829.99

300c

Guide Pin

705801358

$44.99

300d

Guide Pin

705801452

$44.99

300f

Front Door Window

705800863

$369.99

300g

Rear Door Window

705800864

$369.99

300h

Sliding Cab Window

705800865

$489.99

300j

Retaining Cable

705801437

$9.99

300k

Gasket

705801312

$109.99

300m

Window Switch

710004979

$35.99

300n

Gasket

705800866

$239.99

300p

Gasket

705800963

$34.99

300q

Door Handle

705017152

$15.49

300r

Handle Spring

705013062

$14.99

300s

Handle Axle

705207440

$14.49

300t

Guide Pin

705801393

$44.99

300u

External Retaining Ring

705601875

$4.09

300v

External Retaining Ring

705602261

Unavailable

300w

LH Latch

705800872

$409.99

300x

Trim

705800992

$99.99

300y

Front Window Guide Extrusion

705800722

$224.99

300z

Rear Window Guide Extrusion

705800723

$224.99

300aa

LH Door Pictogram Label

704909996

Unavailable

300ac

LH Lower Door Panel

705800716

$239.99

302

Asphalt Grey, LH Upper Door Panel

705801421

$244.99

304

Torx Screw ST 2.9 X 6.5 | Not Shown

250001274

$0.93

305

Rod Latch

705800850

$29.99

310

Conical Spring Washer M12

250200005

$3.27

312

Elastic Stop Nut M12

232521416

$1.69

315

Torx Truss M8 X 25

250000874

$2.11

320

Torx Truss M8 X 25

250000874

$2.11

325

LH Front Striker Support

705801086

$44.99

340

Torx Truss M8 X 25

250000874

$2.11

342

Clip

517306478

$1.09

344

Panel Nut M6 X 1.0

250100198

$2.11

346

Stainless Steel Flat Washer

234062670

$2.11

348

Torx Truss Screw M6 X 25

250000807

$2.11

349

Torx Screw Truss Head K50X20 T20

250000760

$2.11

400

RH Front Rigid Door Ass'y | Includes 400 to 400ac

705801089

$2,739.99

400a

RH Door Wiring Harness

705800882

$254.99

400b

RH Front Window Actuator

705801144

$829.99

400c

Guide Pin

705801358

$44.99

400d

Guide Pin

705801453

$44.99

400f

Front Door Window

705801375

$369.99

400g

Rear Door Window

705801376

$369.99

400h

Sliding Cab Window

705801377

$459.99

400j

Retaining Cable

705801437

$9.99

400k

Gasket

705801312

$109.99

400m

Window Switch

710004979

$35.99

400n

Gasket

705801443

$239.99

400p

Gasket

705800963

$34.99

400q

Door Handle

705017152

$15.49

400r

Handle Spring

705013062

$14.99

400s

Handle Axle

705207440

$14.49

400t

Guide Pin

705801393

$44.99

400u

External Retaining Ring

705601875

$4.09

400v

External Retaining Ring

705602261

Unavailable

400w

RH Latch

705800873

$409.99

400x

Trim

705800993

$99.99

400y

Front Window Guide Extrusion

705800722

$224.99

400z

Rear Window Guide Extrusion

705800723

$224.99

400aa

RH Door Pictogram Label

704909998

Unavailable

400ac

RH Lower Door Panel

705800717

$239.99

402

Asphalt Grey, RH Upper Door Panel

705801422

$244.99

404

Torx Screw ST 2.9 X 6.5 | Not Shown

250001274

$0.93

405

Rod Latch

705800850

$29.99

410

Conical Spring Washer M12

250200005

$3.27

412

Elastic Stop Nut M12

232521416

$1.69

415

Torx Truss M8 X 25

250000874

$2.11

420

Torx Truss M8 X 25

250000874

$2.11

425

RH Front Striker Support

705801097

$44.99

440

Torx Truss M8 X 25

250000874

$2.11

442

Clip

517306478

$1.09

444

Panel Nut M6 X 1.0

250100198

$2.11

446

Stainless Steel Flat Washer

234062670

$2.11

448

Torx Truss Screw M6 X 25

250000807

$2.11

449

Torx Screw Truss Head K50X20 T20

250000760

$2.11

7000

Door Hinge

705800751

$39.99

7005

Hinge Pin

705800781

$0.58

7006

Retaining Ring

293370125

$2.59

7010

Lower Hinge

705801025

$40.99

7100

Upper Door Hinge

705800752

$43.99

7110

Upper Door Hinge

705800755

$31.99

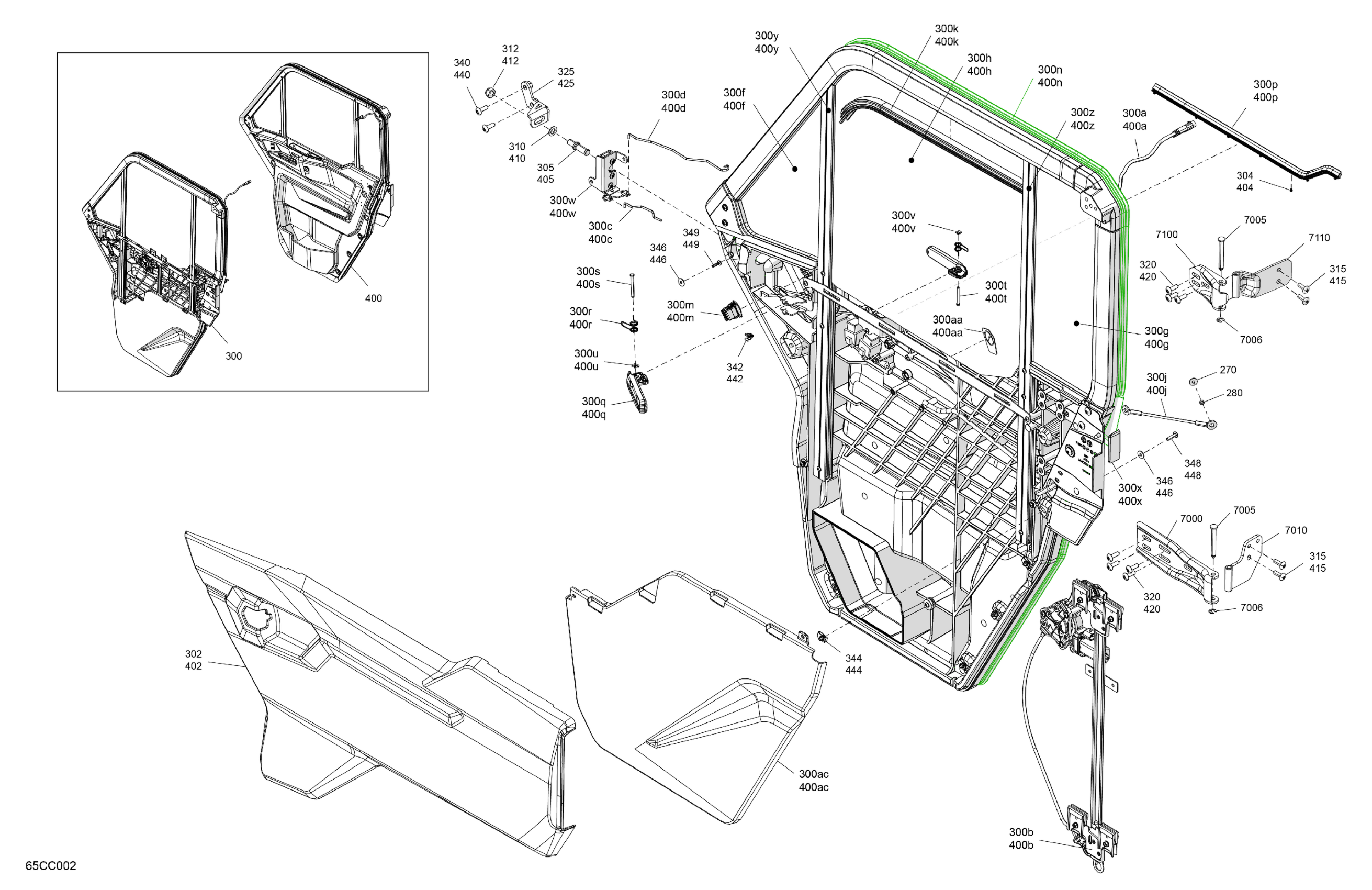

Can-Am 010 - Defender HD10 - LTD CAB - International, 2023 07- Enclosure Cab - Doors Diagram

Washer M6

Bushing

LH Front Rigid Door Ass'y | Includes 300 to 300ac

LH Door Wiring Harness

LH Front Window Actuator

Guide Pin

Guide Pin

Front Door Window

Rear Door Window

Sliding Cab Window

Retaining Cable

Gasket

Window Switch

Gasket

Gasket

Door Handle

Handle Spring

Handle Axle

Guide Pin

External Retaining Ring

External Retaining Ring

LH Latch

Trim

Front Window Guide Extrusion

Rear Window Guide Extrusion

LH Door Pictogram Label

LH Lower Door Panel

Asphalt Grey, LH Upper Door Panel

Torx Screw ST 2.9 X 6.5 | Not Shown

Rod Latch

Conical Spring Washer M12

Elastic Stop Nut M12

Torx Truss M8 X 25

Torx Truss M8 X 25

LH Front Striker Support

Torx Truss M8 X 25

Clip

Panel Nut M6 X 1.0

Stainless Steel Flat Washer

Torx Truss Screw M6 X 25

Torx Screw Truss Head K50X20 T20

RH Front Rigid Door Ass'y | Includes 400 to 400ac

RH Door Wiring Harness

RH Front Window Actuator

Guide Pin

Guide Pin

Front Door Window

Rear Door Window

Sliding Cab Window

Retaining Cable

Gasket

Window Switch

Gasket

Gasket

Door Handle

Handle Spring

Handle Axle

Guide Pin

External Retaining Ring

External Retaining Ring

RH Latch

Trim

Front Window Guide Extrusion

Rear Window Guide Extrusion

RH Door Pictogram Label

RH Lower Door Panel

Asphalt Grey, RH Upper Door Panel

Torx Screw ST 2.9 X 6.5 | Not Shown

Rod Latch

Conical Spring Washer M12

Elastic Stop Nut M12

Torx Truss M8 X 25

Torx Truss M8 X 25

RH Front Striker Support

Torx Truss M8 X 25

Clip

Panel Nut M6 X 1.0

Stainless Steel Flat Washer

Torx Truss Screw M6 X 25
