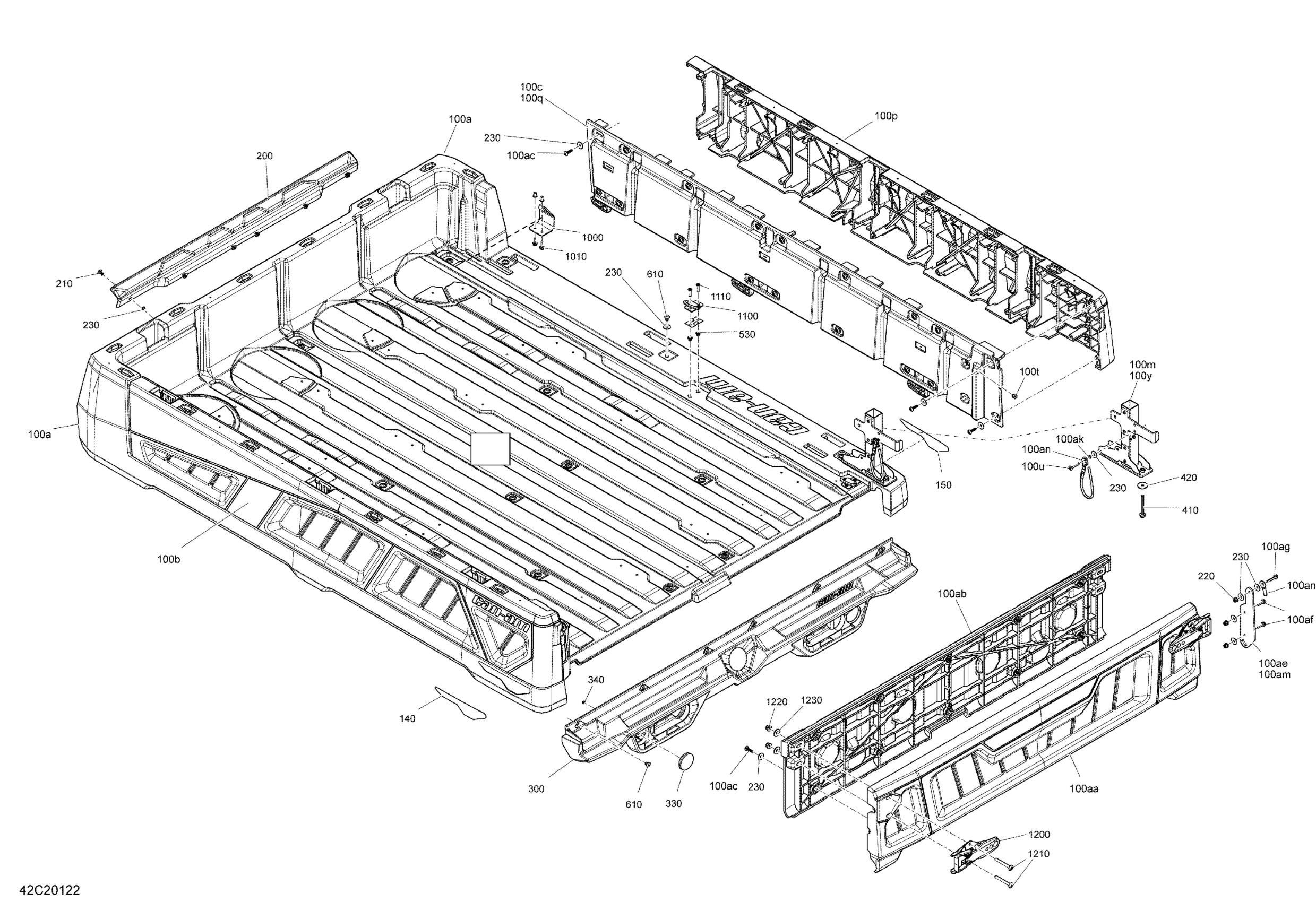

Can-Am Defender 6X6 HD10 - 2020 Rear Cargo Box Diagram

Cargo Box Inside Ass'y

715007479

$1,999.97

LH Exterior Cargo Panel

708302931

Unavailable

LH Interior Cargo Panel

708303037

Unavailable

LH Panel Support | Includes 100b9 to 100b9a7

708304595

$115.35

RH Exterior Cargo Panel

708302932

Unavailable

RH Interior Cargo Panel

708303038

Unavailable

Rubber Bumper

293830005

$5.33

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$1.74

RH Panel Support | Includes 100c9 to 100c9a7

708304596

$115.35

Exterior Tailgate Panel

708302895

Unavailable

Tailgate Liner

708303039

Unavailable

Hex. Screw Pt K60 X 25

250000980

$1.74

LH Tailgate Support

708303138

$27.66

Hex. Flange Screw M6 X 25

207662554

$1.48

Hex. Flange Screw M6 X 35

207663554

$1.74

Bushing

293900101

$6.35

RH Tailgate Support

708303141

$27.66

Cable Retaining

708302893

$32.28

LH Rear Reflector

708303264

$11.15

RH Rear Reflector

708303265

$11.15

Deflector

708303216

$55.35

Torx Truss Screw M6 X 25

250000807

$1.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Flat Washer M6.6 X 22

250200162

$1.91

Taillight Support

708303496

$96.89

Red Reflector

705011221

$12.32

Elastic Stop Nut M5

232551414

$0.72

Hex. Flange Screw M8 X 70

207587044

$1.00

Flat Washer M8

250200187

$2.08

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

Retaining Plate

708301480

$8.45

Hex. Flange Screw M6 X 20

207662054

$0.83

Tie-Down Ring Ass'y

708302989

Unavailable

Torx Flat Head Screw T-30 S.Grip M6X25

250001107

$1.74

Latch Ass'y

511001014

$36.12

Torx Truss M8 X 65

250000901

$1.56

Elastic Flange Nut M8

233281464

$0.83

Stainless Steel Flat Washer

234082670

$1.74
