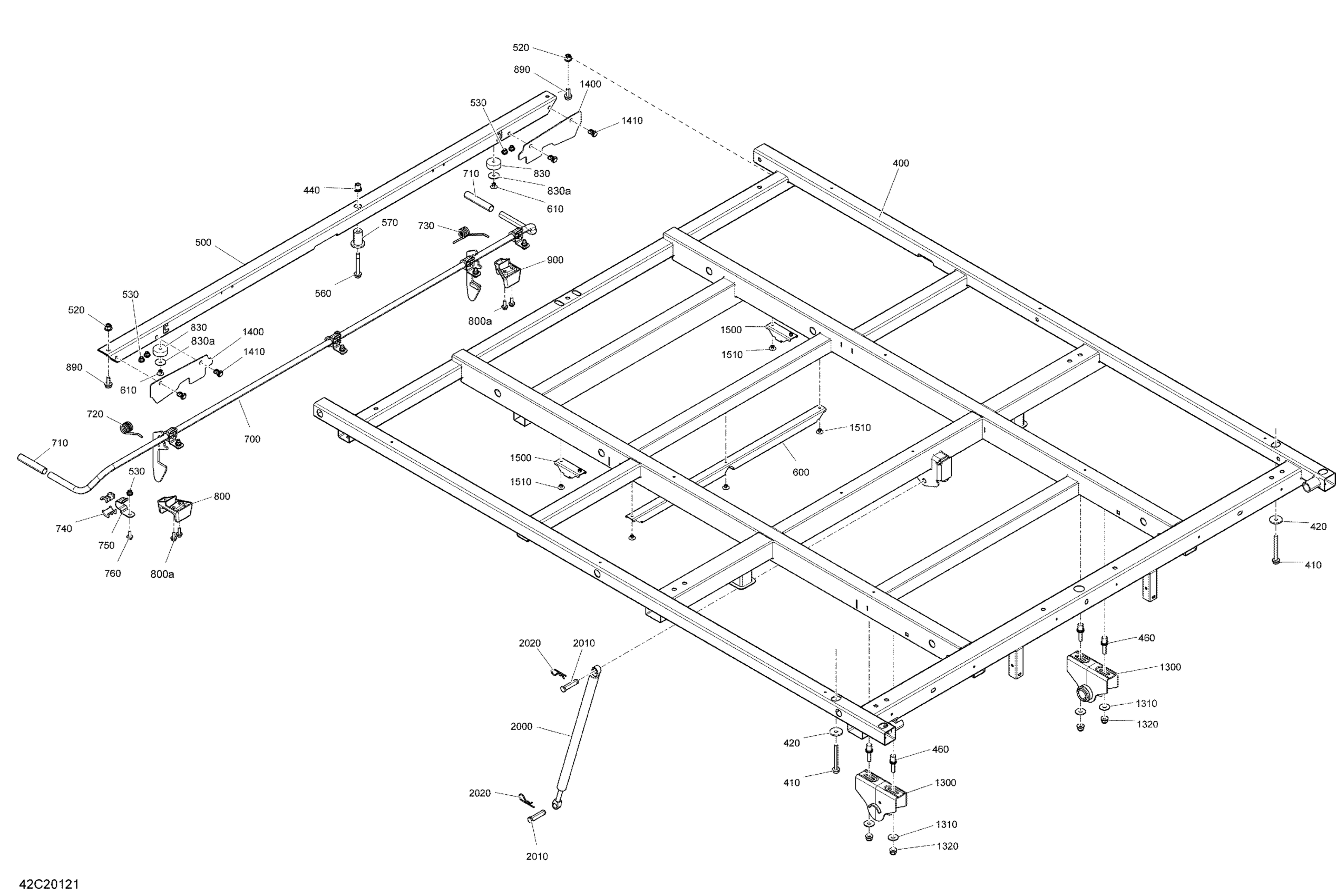

Can-Am Defender 6X6 HD10 - 2020 Rear Cargo Box - Frame Diagram

#

Description
Price

400

Frame_Open Carrier Ecoat

708303651

Unavailable

410

Hex. Flange Screw M8 X 70

207587044

$1.00

420

Flat Washer M8

250200187

$2.08

440

Insert Half Hex Body M8 x 1.25

293450307

$2.03

460

Protruding Stud M8 X 28

250300645

$3.39

500

Front Square Tube

708303290

$27.66

520

Hex. Elastic Flange Nut M8

233281416

$1.25

530

Insert Half Hex Body M6 x 1.0

250100199

$2.54

560

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$1.74

570

Spacer

705207754

$12.08

600

Front Square Tube

708303292

$11.54

610

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

700

Latch Lever

708303088

$83.05

710

Cap Latch Lever

708300358

$5.38

720

LH Torsion Spring

708303190

$3.85

730

RH Torsion Spring

708303191

$3.85

740

Half Ring

705500033

$4.92

750

Clamp Retainer

708301479

$3.08

760

Hex. Flange Screw M6 X 16

210261640

$1.74

800

LH Stopper

708303301

$3.98

800a

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

830

Rubber Stopper | Includes 830 to 830a

708303134

$2.31

830a

Washer

224060251

$0.57

890

Hex. Flange Screw M8 X 20

207682046

$1.82

900

RH Stopper

708303302

$3.98

1300

Female Hinge

708303342

$36.89

1310

Flat Washer 8 mm

234082410

$1.11

1320

Hex. Flange Elastic Nut M8

233281414

$1.14

1400

Deflector

708303097

$10.00

1410

Tuflok Plastic Rivet

293150230

$1.21

1500

Front Square Tube

708303289

Unavailable

1510

Pop Rivet 3/16"

390402200

$0.26

2000

Shock Absorber

708302889

$135.84

2010

Clevis Pin

250400075

$4.73

2020

Hair Pin

414575600

$1.51
