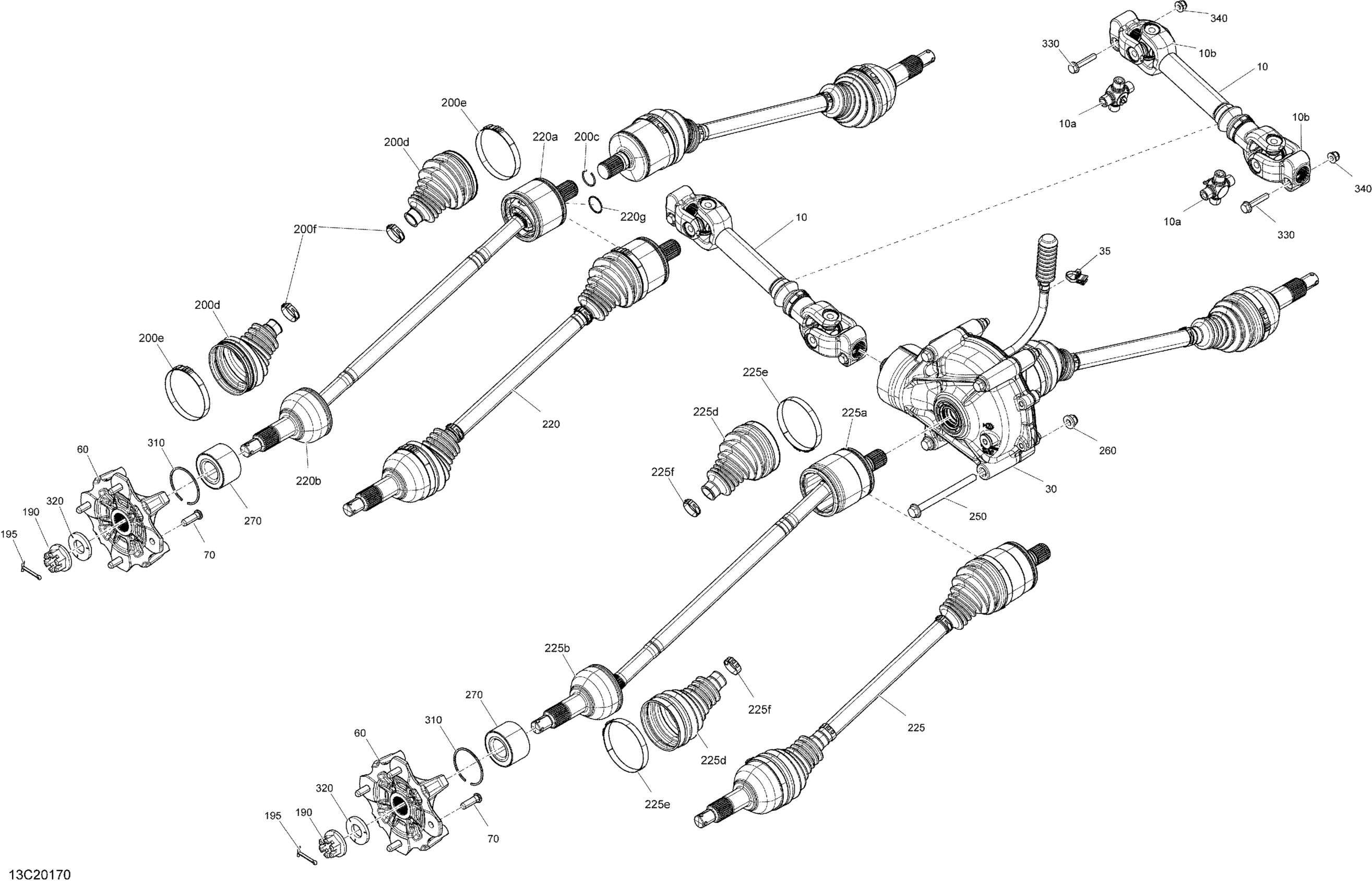

Can-Am Defender 6X6 HD10 - 2020 Rear Drive - Common Parts Diagram

#

Description
Price

10

Drive Axle Ass'y | Includes 10 to 10b

705502784

$253.82

10a

U-joint (universal joint) Kit

715900648

Unavailable

10b

Yoke

715900645

$23.05

30

Final Drive Unit | Includes 30 to 30s

705502827

$1,361.51

35

Clip Tie-Rap | Package North Edition

710005037

$8.45

60

Wheel Hub

705502338

$115.35

70

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

190

Castle Nut M20

250100193

$6.66

195

Cotter Pin

250400084

$1.79

220

CV Joint | Includes 230 to 230f

705502831

$232.74

220a

JOINT_CV EXT - Call your local BRP dealership

715900429

Unavailable

220b

Plunging Joint

715900444

$267.66

200c

Circlip

705501781

$5.38

200d

Boot Kit

705501864

$41.51

200e

Oetiker Clamp, 82.1 mm

715900241

$7.84

200f

Oetiker Clamp, 27.3 mm

715900242

$7.84

220g

O-Ring

715900579

$2.31

225

CV Joint | Includes 225 to 225f

705502850

$233.82

225a

JOINT_CV EXT - Call your local BRP dealership

715900429

Unavailable

225b

Plunging Joint

715900433

$249.20

225d

Boot Kit

705501864

$41.51

225e

Oetiker Clamp, 82.1 mm

715900241

$7.84

225f

Oetiker Clamp, 27.3 mm

715900242

$7.84

250

Hex. Flange Screw, M10 X 130

230603046

$6.08

260

Hex. Flange Elastic Nut M10

233201436

$1.74

270

Ball Bearing

293350150

$51.93

310

Circlip

293370019

$4.98

320

Conical Spring Washer M20

250200170

$11.00

330

Hex. Flange Screw M8 X 42

250001050

$0.95

340

Hex. Elastic Flange Nut M8

233281416

$1.25
