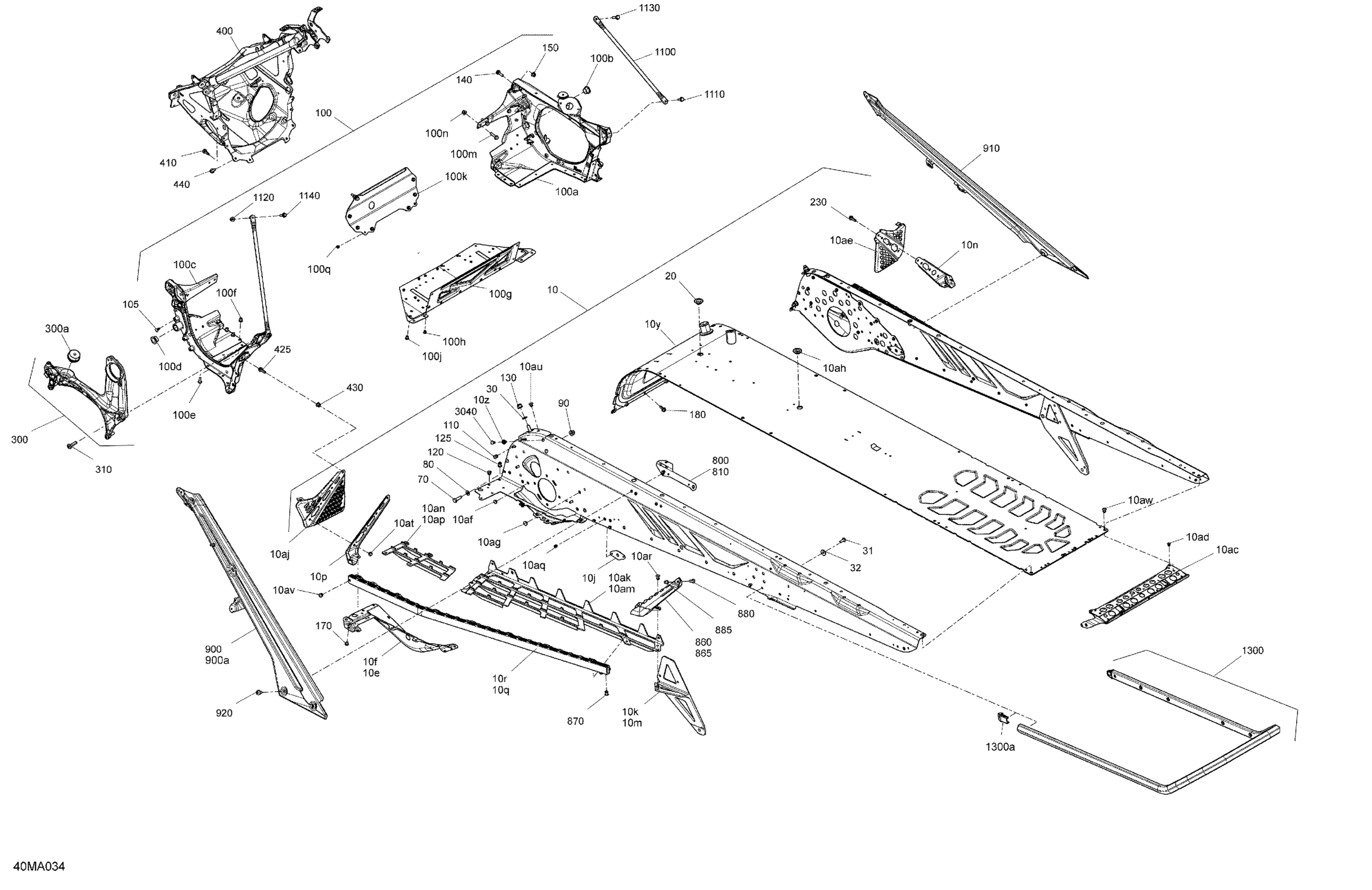

Ski-Doo 009 - SUMMIT 850 E-TEC - X with EXPERT Package - 175" Black/Red - Europe, 2021 06- Frame - System - X EXPERT Diagram

Deep Black, Chassis Tunnel Module 175" | Deep Black

415130483

$3.00

RH Footrest Reinforcement

518332576

$88.99

LH Footrest Reinforcement

518332575

$88.99

Reinforcement Plate

518326647

$4.69

RH Suspension Bracket Rear

518328828

$45.99

LH Suspension Bracket Rear

518328830

$45.99

Stirrup Reinforcement

518331253

$21.99

Deep Black, LH Chasssis Reinforcement

518331560

$19.99

RH Roller

518328737

$194.99

LH Roller

518328738

$194.99

Radiator Tunnel 175 Ass'y | Model with 175" rear suspension

518332556

$709.99

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Rear Cap Ass'y | Includes 10a17 to 10a17c

518331704

$63.99

Rivet Avibulb 3/16

293150203

$2.09

RH Footrest

518328460

$44.99

Black, Dart 8 mm

293730047

$2.21

Black, Dart 10 mm

293730060

$4.55

Black, Plug

293730052

$9.19

LH Footrest

518333007

$40.99

LH Rear Perforated Footstep

518330960

$114.99

Footstep R Rh Perforated

518330962

$114.99

LH Front Driver Footrest

518330385

$88.99

RH Front Driver Footrest

518330388

$88.99

Rivet Avibulb 3/16

293150203

$2.09

Rivet

293150183

$2.11

Hemlock Rivet, 6.5 mm

293150096

$3.27

Hemlock Rivet, 6.5 mm

293150119

$4.29

Hemlock Rivet, 6.4 mm

293150174

$7.86

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Black, Plug

293730052

$9.19

Flat Washer 8 mm

234081410

$0.83

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

Flat Washer

224061201

$1.37

Hex Screw M8 X 30

250000942

$1.15

Flat Washer 8 mm

234081410

$0.83

Hex. Flange Elastic Nut M8

233281414

$1.47

Engine Chassis Module Ass'y | Includes 100 to 100m

518332692

$579.99

RH Member Ass'y | Includes 100a to 100a3

518332687

$219.99

Leg Bushing

505072690

$12.49

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

Leg Bushing

505072690

$12.49

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

Collar Huck Magna-Grip 6.4

293150149

$0.48

Bottom Plate

518332716

$36.99

Rivet Avibulb 3/16

293150203

$2.09

Insert M5 X 0.8

293450268

$2.09

Front Member

518330100

$60.99

Hex. Flange Screw M6 X 25

250000945

$4.44

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Rivet Avibulb 3/16

293150203

$2.09

Dart

293730079

$2.09

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Hemlock Rivet, 6.4 mm

293150174

$7.86

Hemlock Rivet 6.5 mm

293150120

$7.41

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Screw M6 X 20

207662046

$2.11

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Insert M5 - 0.8

293450267

$4.59

Hex. Flange Screw M6 X 16

207661646

$1.36

Hex. Flange Screw M6 X 20

207562056

$2.11

LH Side Member Ass'y | Includes 300 to 300a

518333692

$264.99

Vibration Damper

512061516

$61.99

Screw-Pan HD.Torx M8X30

250001060

$0.82

Chassis Suspension Module

518334459

$709.99

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

Hex. Flange Screw M6 X 20

207562056

$2.11

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Hex. Flange Screw M6 X 16

207661636

$1.35

LH Under Chassis Reinforcement

518331744

$18.99

RH Under Chassis Reinforcement

518331745

$19.99

Black - LH Roller Link

518329123

$48.99

Black, RH Roller Link

518329124

$48.99

Rivet

293150183

$2.11

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

Collar Huck Magna-Grip 6.4

293150149

$0.48

Catalyst Gray, LH Rear Diag. Crossmember | Includes 900 to 900a This part replaces 518333273.

518332557

$119.99

RH Rear Diagonal Cross Member

518330885

Unavailable

Catalyst Gray, RH Rear Diag. Crossmember | Includes 910 to 910a This part replaces 518333274.

518332558

$119.99

Pan Head Torx Screw M8 X 12

250000887

$1.90

Upper Colomn Support

518329974

$22.49

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Hex. Flange Screw M6 X 25

207662556

$4.44

Hex. Flange Screw M6 X 20

207662046

$2.11

Rear Short Bumper 175 | Includes 1300 to 1300a

518331207

$127.49

Cap

520001612

$10.99

Dart

293730079

$2.09
