Description

Price

10

Deep Black, Chassis Tunnel Module 154 | Includes 10 to 10b

415130720

$3.00

10c

Deep Black, RH Footrest Reinforcement

518332803

$86.99

10g

Deep Black, LH Footrest Reinforcement

518332802

$18.49

10n

Front Suspension Arm Reinforcement

518335959

$4.19

10p

RH Rear Suspension Support

518333792

$109.99

10q

LH Rear Suspension Support

518333791

$109.99

10t

RH Footrest Reinforcement

518329789

$19.99

10u

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10v

RH Roller

518329648

$194.99

10w

LH Roller

518328452

$194.99

10x

RH Tunnel Liner

518329646

$35.99

10y

LH Tunnel Liner

518329647

$35.99

10aa

Radiator Tunnel 154

518335121

$625.49

10ac

Insert Half Hex Body M6 x 1.0

250100199

$3.19

10ah

Rear Cap

518332481

$83.99

10am

RH Footrest

518331822

$24.49

10an

Black, Plug

293730052

$9.19

10ap

LH Footrest

518332977

$43.49

10at

Rivet Avibulb 3/16

293150203

$2.09

10aw

Henrob Rivet

293150245

$1.69

10ay

Rivet Ornit 6,5 X 10.5

293150264

$2.40

10az

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10ba

Ornit Rivet 6,5 X 14.5

293150266

$2.40

20

Black, Plug

293730052

$9.19

35

RH Stirrup Reinforcement

518331727

$19.99

40

Insert

293450275

$12.99

42

Torx Head Screw M6 X 16

250000717

$2.11

50

Heat Shield

518331823

$10.49

55

Insert

293450275

$12.99

60

Torx Head Screw M6 X 16

250000717

$2.11

95

Insert

293450275

$12.99

96

Insert

293450275

$12.99

170

Insert M5 - 0.8

293450267

$4.59

200

Lateral Reinforcement

518332541

$19.99

205

Hex. Flange Screw M8 X 20

207682044

$1.15

210

Hex. Nut M8

232081414

$0.72

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

860

Deep Black LH Rear Footrest Reinforcement

518330858

$18.49

865

Deep Black, RH Rear Footrest Reinforcement

518335169

$18.49

875

Rivet Ornit 6,5 X 16.5

293150267

$2.40

880

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

885

Collar Huck Magna-Grip 6.4

293150149

$0.48

1160

Ornit Rivet 6,5 X 14.5

293150266

$2.40

1170

Muffler Support Ass'y

518334031

$21.99

1400

Black, Dart 8 mm

293730047

$2.21

1405

Black, Dart 10 mm

293730060

$4.55

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

3040

Dart

293730079

$2.09

3060

Collar Huck Magna-Grip 6.4

293150149

$0.48

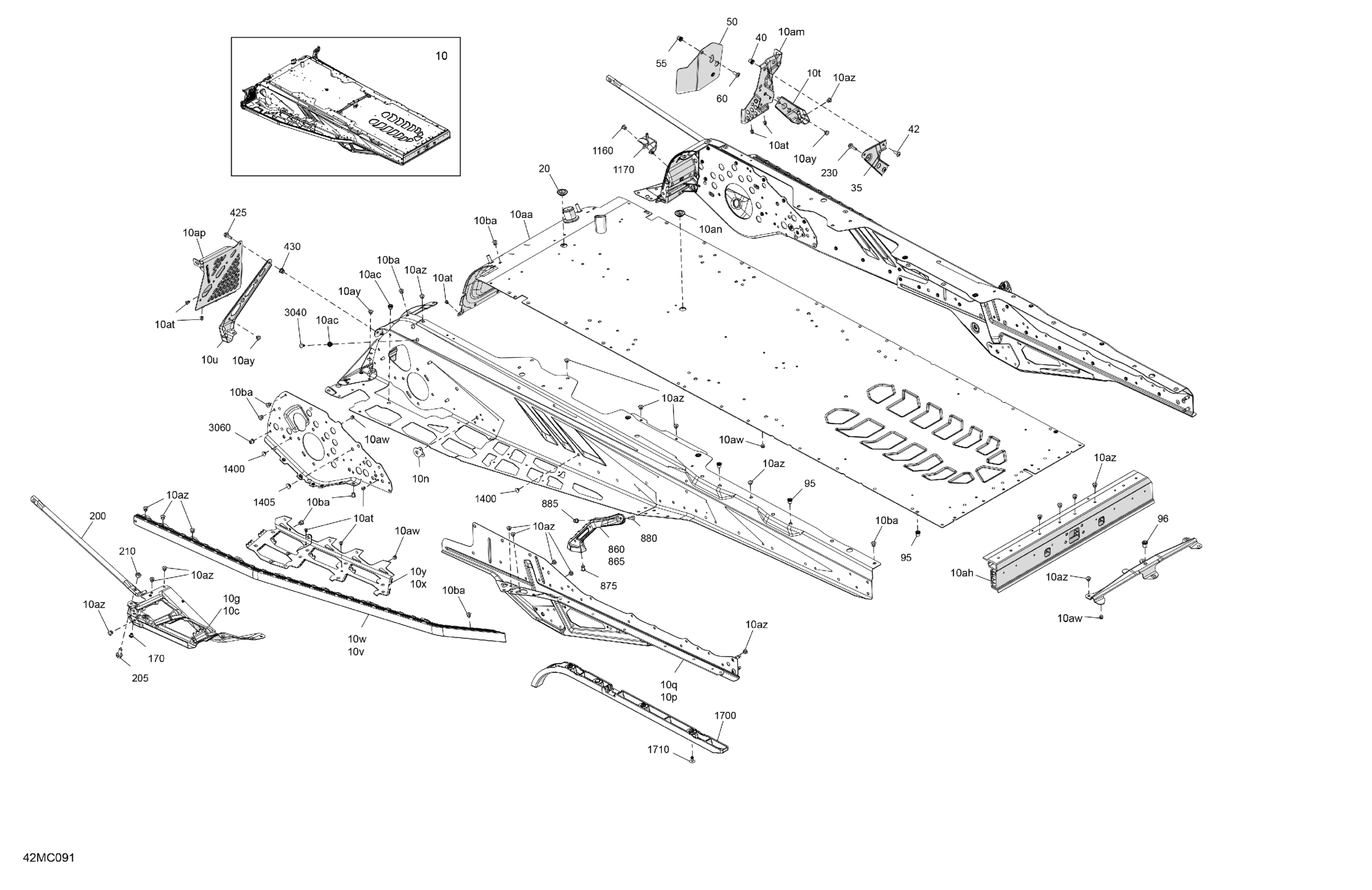

Ski-Doo 009 - SKANDIC LE 900 ACE - 24 INCH - (ANPA-ANPB) - North America, 2023 06- Frame - System - Rear Section Diagram

Deep Black, Chassis Tunnel Module 154 | Includes 10 to 10b

Deep Black, RH Footrest Reinforcement

Deep Black, LH Footrest Reinforcement

Front Suspension Arm Reinforcement

RH Rear Suspension Support

LH Rear Suspension Support

RH Footrest Reinforcement

Deep Black, LH Chassis Reinforcement

RH Roller

LH Roller

RH Tunnel Liner

LH Tunnel Liner

Radiator Tunnel 154

Insert Half Hex Body M6 x 1.0

Rear Cap

RH Footrest

Black, Plug

LH Footrest

Rivet Avibulb 3/16

Henrob Rivet

Rivet Ornit 6,5 X 10.5

Rivet Ornit 6,5 X 12.5

Ornit Rivet 6,5 X 14.5

Black, Plug

RH Stirrup Reinforcement

Insert

Torx Head Screw M6 X 16

Heat Shield

Insert

Torx Head Screw M6 X 16

Insert

Insert

Insert M5 - 0.8

Lateral Reinforcement

Hex. Flange Screw M8 X 20

Hex. Nut M8

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 X 20

Elastic Flange Nut M6 X 1.0

Deep Black LH Rear Footrest Reinforcement

Deep Black, RH Rear Footrest Reinforcement

Rivet Ornit 6,5 X 16.5

Rivet Magna-Grip 6,4 X 50,8

Collar Huck Magna-Grip 6.4

Ornit Rivet 6,5 X 14.5

Muffler Support Ass'y

Black, Dart 8 mm

Black, Dart 10 mm

Front Protector

Pop Rivet 3/16”

Dart

Collar Huck Magna-Grip 6.4
