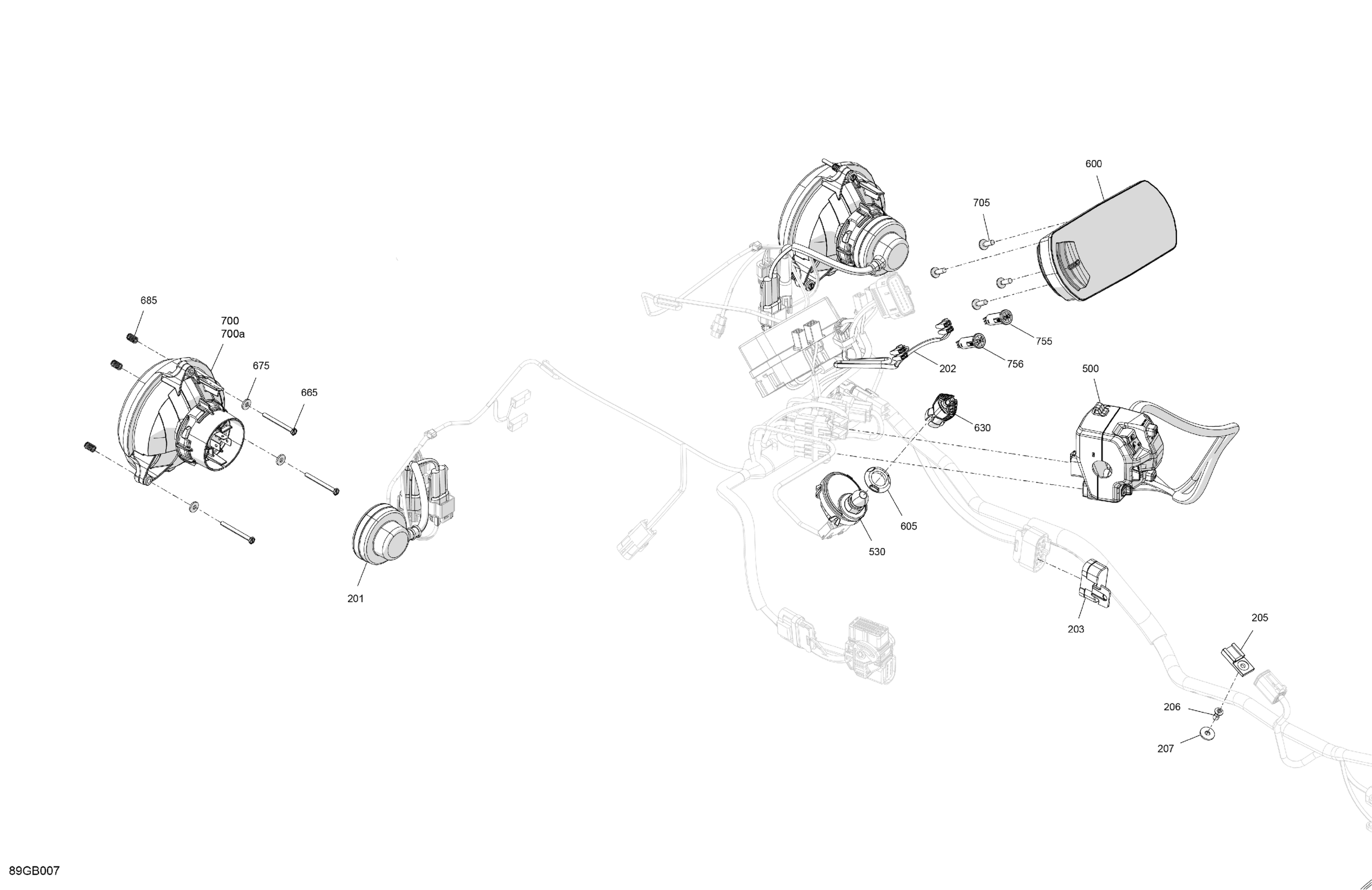

Can-Am Outlander T MAX 450 EFI - STD - T Regulation, 2022 Electric - Front Section Diagram

Description

Price

201

Light Cable

710005780

$20.74

202

Tell Tale Wiring Harness

710007825

$23.05

203

DPS Connector Cap | Not Shown

710005760

$15.22

205

Clip

270000141

$8.33

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

500

LH Front Multifunction Switch

710006945

$239.97

530

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

600

Multifunction Gauge Compact Mono

710008108

$383.05

605

Specialized Nut

278004274

$2.72

630

Grey Key RFID | Except Model Europe, Except T3

710004964

$55.35

665

Hex. Screw K40 X 45

250000718

$1.74

675

Flat Washer

517225900

$0.17

685

Spring

517168600

$6.91

700

Low Beam

710003900

$106.12

700a

Bulb, 12V 35/35W

710000871

$32.28

705

Torx Screw K50 X 16

250000720

$1.39

755

Pilot Light Trailer Flasher

710005766

$8.45

756

Pilot Light Tail Lamp

710005767

$8.45
