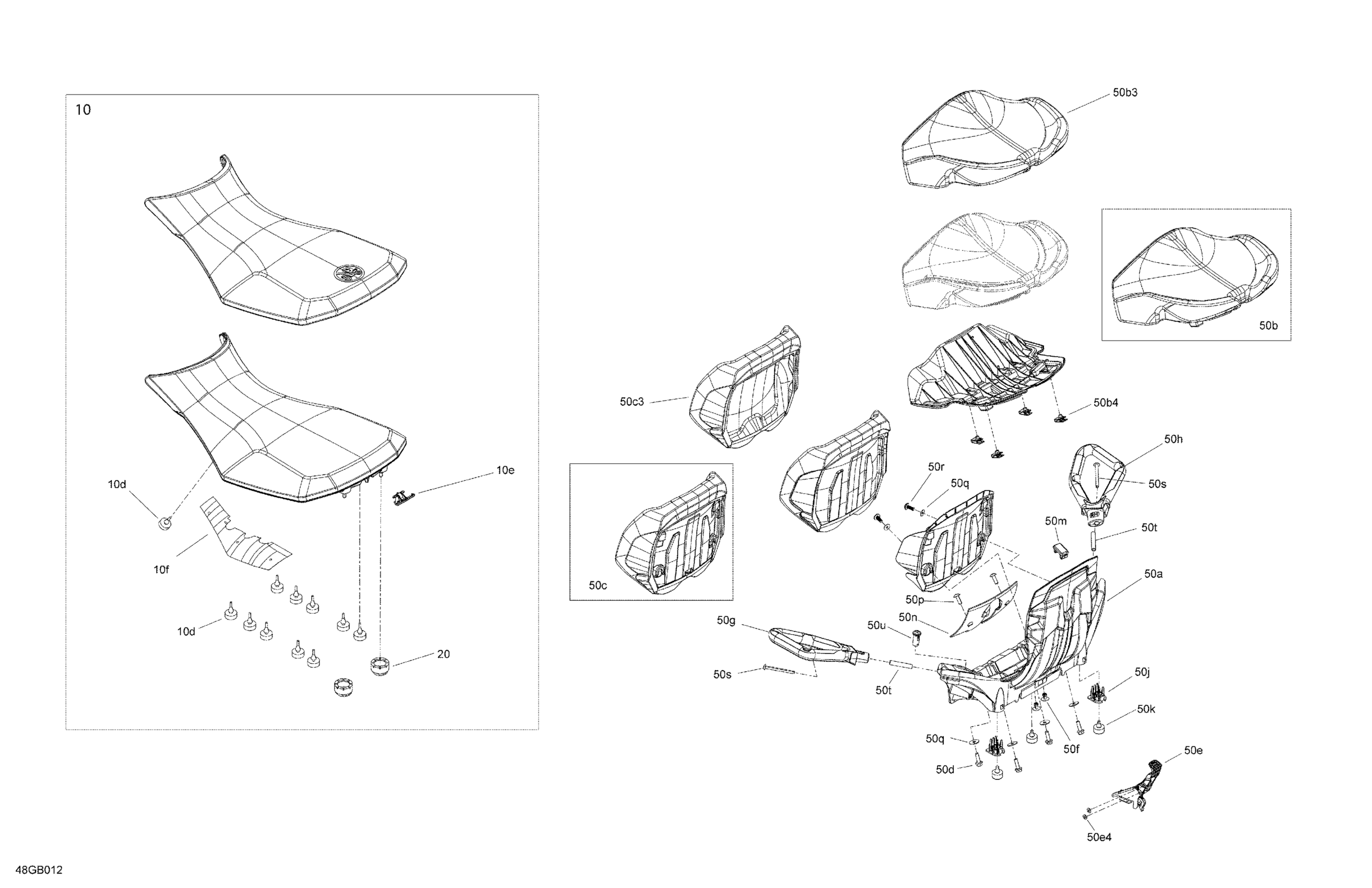

Can-Am Outlander T MAX 450 EFI - STD - T Regulation, 2022 Body - Seat Diagram

Description

Price

Driver Seat | Includes 10 to 10f

708003369

Unavailable

10d

Rubber Stopper

708000759

$3.61

10e

Latch

708000909

$6.39

10f

HEAT SHIELD - Call your local BRP dealership

705005761

Unavailable

Seat Stopper

708003609

$8.84

50a

Seat Base

708002574

$223.85

50b

Rear Seat | MAX Model

708002088

$229.99

50b3

Black, Seat Cover

708001290

$150.49

50b4

Panel Nut M6 X 1.0

250100198

$1.73

50c

Back Rest

708002085

$519.99

50c3

Back Rest Cover

708001841

$123.49

50d

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

50e

Latch

708001532

$60.42

50e4

Flat Washer M5

234051410

$0.44

50f

Pop Rivet 3/16”

293150108

$1.19

50g

LH Passenger Seat Handle Kit | Includes 28, 44

703500806

$61.16

50h

RH Passenger Seat Handle Kit | Includes 28, 44

703500807

$61.16

50j

Seat Support

708001483

$2.85

50k

Rubber Stopper

708000758

$9.37

50m

Insert

708001511

$3.33

50n

Cap

708001512

$11.51

50p

Torx Truss PT K40 x 12

250001131

$1.74

50q

Flat Washer

224060201

$1.12

50r

Oval Head Torx Screw K60 X 16

250000546

$1.74

50s

Torx Truss M8 X 90

250000806

$6.15

50t

Sleeve

705009248

$13.45

50u

Pilot Lamp Cap

710003910

$3.33
