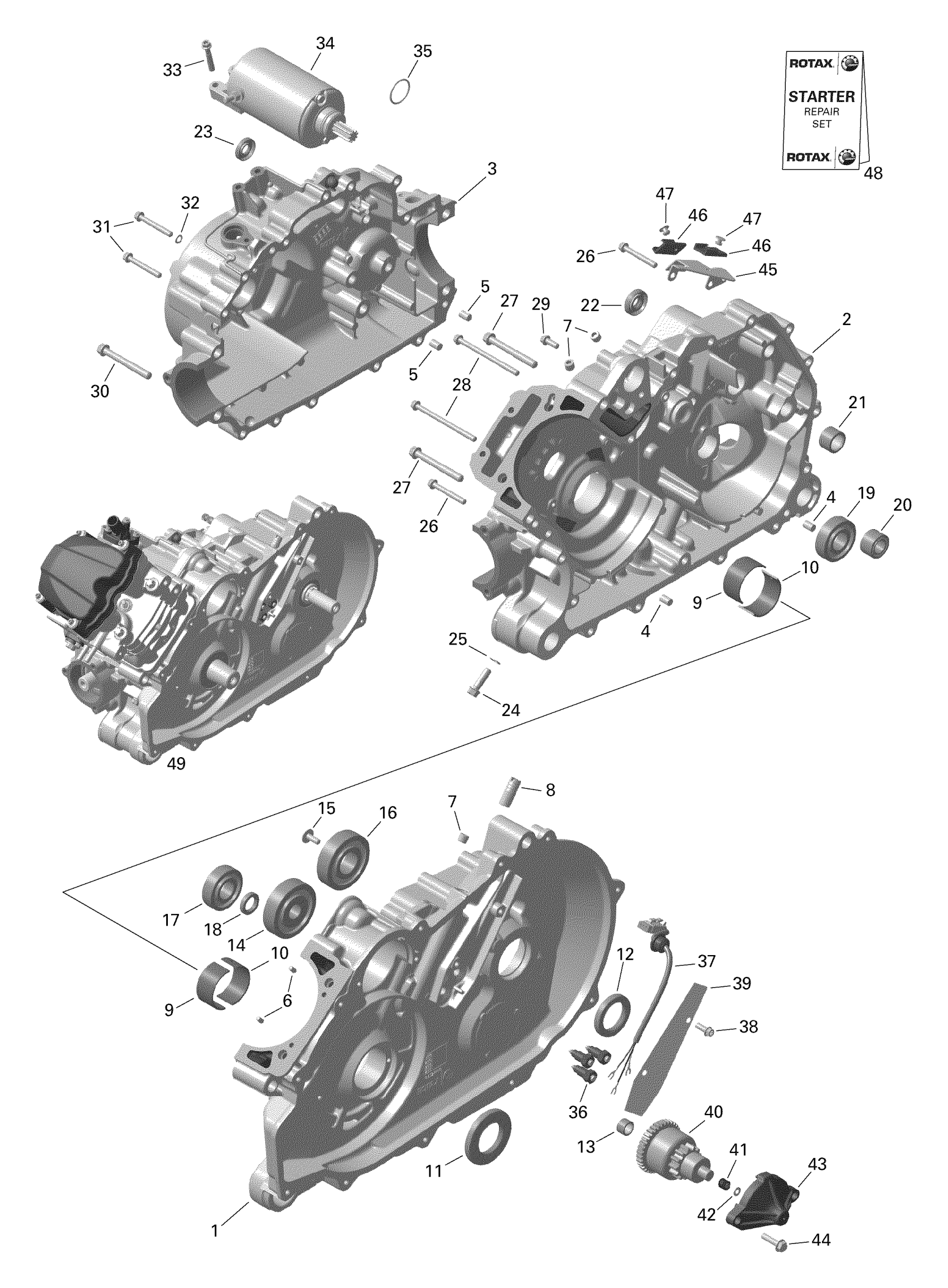

Can-Am Outlander 450 EFI - STD - 2022 Rotax - Crankcase - 1 Diagram

#

Description
Price

1

Housing Ass'y | Includes 1a to 22

420686324

$1,384.49

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Center Pin 8 X 12

420632010

$4.01

5

Center Pin 8 X 12

420632010

$4.01

6

Drive Pin 5 X 10

420929650

$1.68

7

Plug Screw M10 X 1

420641323

$14.28

8

Hose Nipple

420256332

$17.53

9

Plain Bearing

420233960

$23.99

10

Plain Bearing

420233965

$23.99

11

Oil Seal

420630152

$18.54

12

Oil Seal

420950089

$19.49

13

Needle Bushing

420232482

$20.99

14

Ball Bearing

420632295

$47.49

15

Torx Screw M6 X 16

420241529

$2.11

16

Ball Bearing

420932822

$30.49

17

Ball Bearing 6204

420932433

$23.49

18

Oil Seal

420250130

$17.59

19

Ball Bearing 6204

420932433

$23.49

20

Needle Bushing

420232085

$37.99

21

Needle Bushing

420832240

$20.99

22

Oil Seal

420250450

$17.04

23

Oil Seal

420650315

$11.65

24

Torx Flange Screw M8 X 25

420440372

$4.12

25

Sealing Ring

420950141

$2.00

26

Torx Flange Screw M6 X 45

420440324

$0.98

27

Torx Flange Screw M8 X 65

420440402

$7.41

28

Torx Flange Screw M6 X 85

420641228

$7.41

29

Torx Flange Screw M6 X 16

420440162

$3.17

30

Torx Flange Screw M8 X 65

420440402

$7.41

31

Torx Flange Screw M6 X 45

420440324

$0.98

32

Seal Washer

420230415

$1.79

33

Torx Flange Screw M6 X 35

420440274

$1.01

34

Electric Starter | Includes 37 to 38

420684283

$265.99

35

Not Available As Spare Parts

XXX

Unavailable

36

Position Switch

420241856

$35.99

37

Wiring Harness

420265831

$53.99

38

Torx Flange Screw M6 X 16

420440162

$3.17

39

Cover Sheet

420251290

$12.12

40

Starter Drive Ass'y

420294811

$279.99

41

Spring

420938204

$7.65

42

Washer 5.3

420927574

$1.90

43

Reduction Cover Gear

420610891

$20.99

44

Hex. Screw M6 X 25

420240034

$1.90

45

Retaining Plate

420251491

$7.87

46

Connector Bracket

420260590

$12.18

47

Blind Rivet

420243010

$5.50

48

Gasket Set ( Engine)

420685125

$217.49

49

Longblock 427

390427412

$3,779.99
