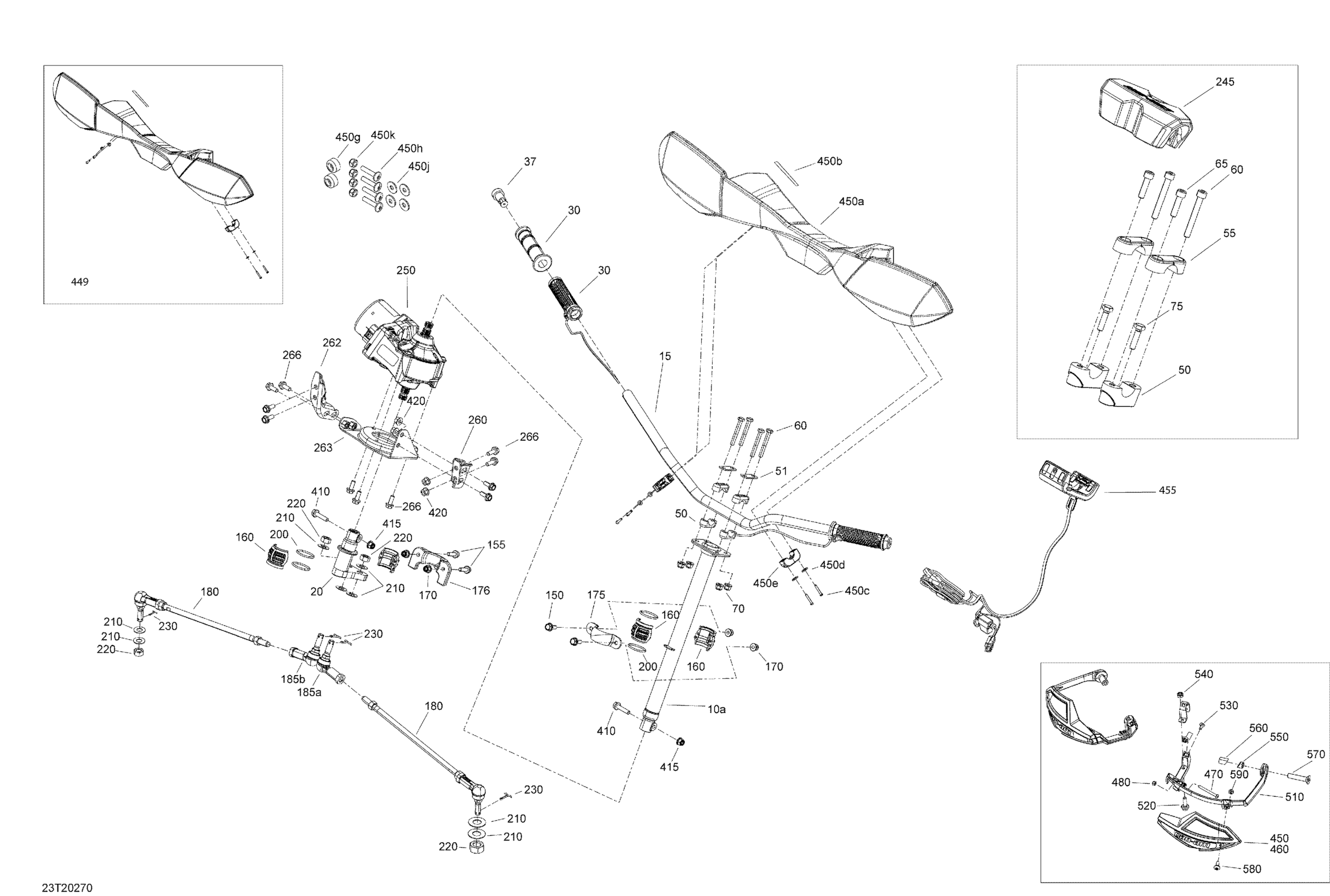

Can-Am 009 - Outlander MAX 1000R EFI - North America, 2020 07- Steering Diagram
#
10a
Main Tube Kit | Model With DPS
703501108
Unavailable
15
Black, Handle Bar
709401240
Unavailable
15
Anodized Handlebar | Package XTP, XXC
709402292
Unavailable
20
Pitman Arm | Model With DPS Except XMR
703501160
Unavailable
30
Grey, Handle Grip
709400443
Unavailable
30
Handle Grip
709400493
Unavailable
37
End Piece
709400449
Unavailable
50
Steering Support
709401799
Unavailable
50
Lower Mounting Clamp
709402750
Unavailable
51
Stiffner
709400509
Unavailable
55
Support
709400496
Unavailable
60
Hex. Screw M8 X 60
207086046
Unavailable
60
Socket Head Screw M8 X 60
205086060
Unavailable
65
Socket Screw M8 X 30
205083060
Unavailable
70
Hex. Elastic Flange Nut M8
233281416
Unavailable
75
Hex. Screw M8 X 30
207183060
Unavailable
150
Hex. Flange Screw M8 X 20
207682044
Unavailable
155
Hex. Flange Screw M8 X 25
207682544
Unavailable
160
Spherical Half Bushing
709400783
Unavailable
170
Hex. Flange Elastic Nut M8
233281414
Unavailable
175
Upper Column Attachment
709400827
Unavailable
176
Column Attachment
709401428
Unavailable
180
Tie-Rod Ass`y | Includes 180 to 180b
703501039
Unavailable
185a
LH Ball Joint
709402303
Unavailable
185b
RH Ball Joint
709402302
Unavailable
200
O-Ring
293300068
Unavailable
210
Hardened Washer
706200281
Unavailable
220
Nut M12
250100099
Unavailable
230
Cotter Pin
211400013
Unavailable
245
Steering Cover | XTP
709402328
Unavailable
250
Power Steering Ass'y | Model With DPS
709403187
Unavailable
260
LH Power Steering Bracket | Model With DPS
709402184
Unavailable
262
RH Bracket | Model With DPS
709402185
Unavailable
263
Power Steering Support | Model With DPS
709401743
Unavailable
266
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
410
Hex. Flange Screw M8 X 35
250000986
Unavailable
415
Hex. Elastic Flange Nut M8
233281416
Unavailable
420
Hex. Flange Nut M8
233081416
Unavailable
449
Handle Guard Ass'y, XT
703100352
Unavailable
450a
Handle Bar Protector | XT
709400822
Unavailable
450b
DPS Decal
704902966
Unavailable
450c
Hex. Flange Screw K40 X 25
241142560
Unavailable
450d
Flat Washer | XT
211200035
Unavailable
450e
U-Clamp | XT
517303264
Unavailable
449
Handle Guard Ass'y, LTD
703100357
Unavailable
450g
Rubber Bumper
709400781
Unavailable
450h
Torx-Truss M/S M4 X 20
250000783
Unavailable
450j
Flat Washer 4 mm, Stainless
234042600
Unavailable
450k
Elastic Stop Nut M4
232541414
Unavailable
450
Deep Black RH Air Deflector | Camo Model
709401303
Unavailable
460
Deep Black LH Air Deflector | Camo Model
709401304
Unavailable
470
Socket Head Screw M4 X 40
205444056
Unavailable
480
Elastic Stop Nut M4
232541414
Unavailable
510
Air Deflector Support Kit | X
715001378
Unavailable
520
Hex. Flange Screw M6 X 20
207662044
Unavailable
530
Torx Head Screw M6 X 16
250000717
Unavailable
540
Hex. Elastic Stop Nut M6
232561600
Unavailable
550
Small Bracket | DS 650 X
709400161
Unavailable
560
Large Bracket | DS 650 X
709400162
Unavailable
570
Socket Head Screw | X
205384034
Unavailable
580
Torx Screw M5 X 14
250000742
Unavailable
590
Hex. Elastic Nut M5 | X
232551600
Unavailable
455
GPS Support | LTD Model
710003210
Unavailable
460
2-Pieces Fixing Tie Rap for Edges | Not Shown
293750058
Unavailable
