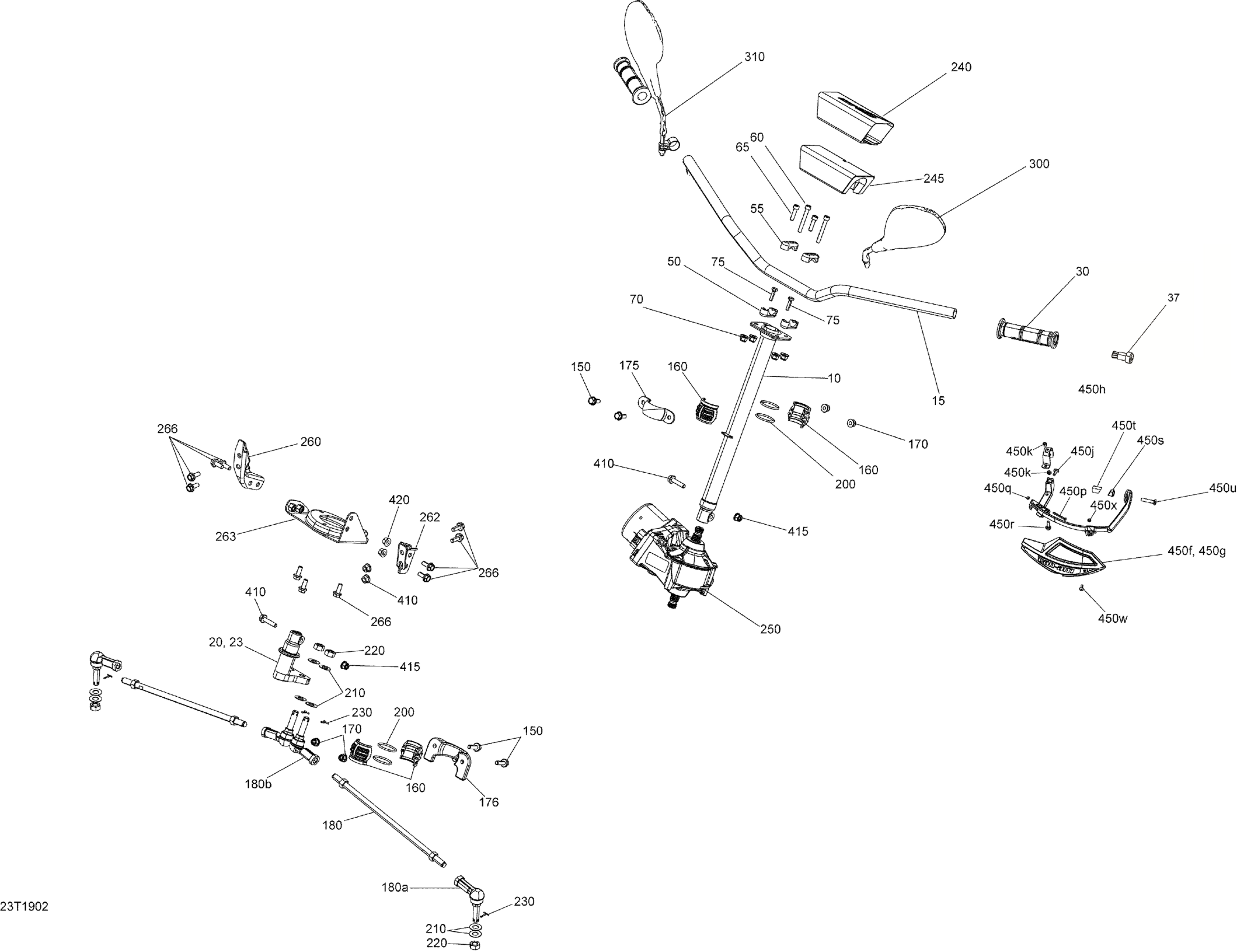

Can-Am Outlander 1000R EFI - 2019 Steering Diagram

Main Tube Kit | Model With DPS

703501108

$67.66

Black, Handle Bar

709401240

$55.35

Anodized Handlebar | Package XTP, XXC

709402292

$64.58

Sunburst Yellow, Handle Bar

709402063

$64.58

Red, Handle Bar | Package XMR Engine 1000 Red Model

709401643

$64.58

Pitman Arm | Model With DPS Except XMR

703501160

$41.51

Pitman Arm | Model XMR

703501161

$41.51

Grey, Handle Grip

709400443

$13.83

Heated Hand Grip With Connector

710005038

$59.97

Tie-Rap 180 mm

414115200

$0.09

End Piece

709400449

$8.29

Lower Mounting Clamp

709402750

$27.66

Steering Support

709401799

$20.74

Stiffner

709400509

$4.43

Support

709400496

$27.66

Socket Head Screw M8 X 60

205086060

$3.38

Hex. Screw M8 X 60

207086046

$2.30

Socket Screw M8 X 30

205083060

$2.89

Hex. Elastic Flange Nut M8

233281416

$1.25

Hex. Screw M8 X 30

207183060

$1.30

Hex. Flange Screw M8 X 20

207682044

$0.92

Spherical Half Bushing

709400783

$6.14

Hex. Flange Elastic Nut M8

233281414

$1.14

Upper Column Attachment

709400827

$1.00

Column Attachment

709401428

$36.12

Tie-Rod Ass`y | Includes 180 to 180b

703501039

$106.12

LH Ball Joint

709402303

$35.14

RH Ball Joint

709402302

$35.14

O-Ring

293300068

$5.29

Hardened Washer

706200281

$2.34

Nut M12

250100099

$1.64

Cotter Pin

211400013

$0.32

Cover

709400939

$23.05

Cover | Package XMR Engine 1000 Red Model

709402112

$32.28

Cover

709402113

$36.89

Cover

709402113

$36.89

Foam

709400422

$16.12

Power Steering Ass'y | Model With DPS

709403187

Unavailable

LH Power Steering Bracket | Model With DPS

709402184

$15.35

RH Bracket | Model With DPS

709402185

$27.66

Power Steering Support | Model With DPS

709401743

$16.89

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Hex. Flange Screw M8 X 35

250000986

$1.74

Hex. Elastic Flange Nut M8

233281416

$1.25

Hex. Flange Nut M8

233081416

$1.63

Handle Guard Ass'y | Includes 450 to 450f

703100813

$96.89

Handle Guard Ass'y, XT

703100352

$96.89

Handle Guard Ass'y, LTD

703100357

$92.28

Deflector Kit | Package XXC White/Red/Black

715003811

$36.89

Handle Bar Protector | XT

709400822

$87.66

Handle Guard Ass'y, LTD

703100357

$92.28

Handle Bar Protector | XT

709400822

$87.66

DPS Decal

704902966

$11.54

Hex. Flange Screw K40 X 25

241142560

$2.17

Flat Washer | XT

211200035

$0.46

U-Clamp | XT

517303264

$11.43

Deep Black RH Air Deflector | Camo Model

709401303

$36.89

Red, RH Deflector | Package XMR Engine 1000 Red Model

709401667

$36.89

Sunburst Yellow RH Air Deflector

709402053

$16.89

Sunburst Yellow RH Air Deflector

709402053

$16.89

Deep Black LH Air Deflector | Camo Model

709401304

$36.89

Red, LH Deflector | Package XMR Engine 1000 Red Model

709401668

$36.89

Sunburst Yellow LH Air Deflector

709402054

$16.89

Sunburst Yellow LH Air Deflector

709402054

$16.89

Socket Head Screw M4 X 40

205444056

$1.74

Elastic Stop Nut M4

232541414

$0.48

Air Deflector Support Kit | X

715001378

$137.74

Air Deflector Support Kit | X

715001378

$137.74

Air Deflector Support Kit | X

715001378

$137.74

Hex. Flange Screw M6 X 20

207662044

$1.66

Hex. Elastic Stop Nut M6

232561600

$0.92

Torx Head Screw M6 X 16

250000717

$1.74

Small Bracket | DS 650 X

709400161

$20.74

Large Bracket | DS 650 X

709400162

$16.89

Socket Head Screw | X

205384034

$5.19

Torx Screw M5 X 14

250000742

$1.20

Torx Screw M5 X 14

250000742

$1.20

Hex. Elastic Nut M5 | X

232551600

$0.91

Rubber Bumper

709400781

$4.98

Torx-Truss M/S M4 X 20

250000783

$2.06

Flat Washer 4 mm, Stainless

234042600

$0.92

Elastic Stop Nut M4

232541414

$0.48

GPS Support | LTD Model

710003210

$197.66

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

Tie Wrap 368 mm

293750008

$0.85

Tie-Rap 180 mm

414115200

$0.09

Tie-Rap 173 mm

293750009

$0.85
