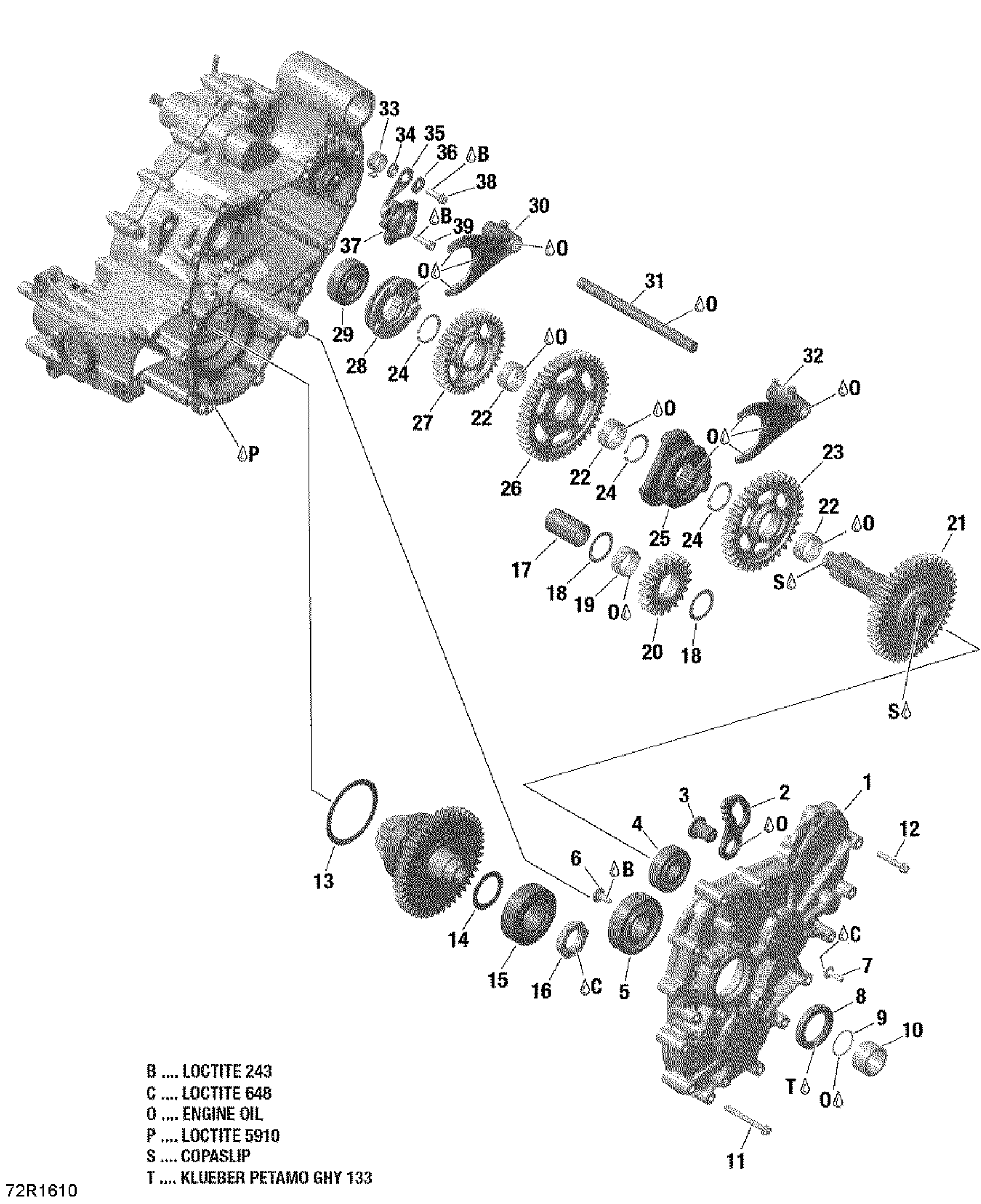

Can-Am Outlander - 1000 - PRO Package 0003UGA00 0003UGB00 Gear Box and Components - GBPS - Package PRO Diagram

#

Description
Price

1>8

Not Available As Spare Part - Friction Washer

Unavailable

2

Parking Lock Lever

420257654

$80.99

3

Collar Sleeve

420647123

$38.99

4

Ball Bearing

420932816

$42.49

5

Ball Bearing

420932822

$30.49

6

Torx Screw M6 X 16

420241529

$2.11

7

Distance Screw M6

420441433

$3.49

8

Oil Seal

420950089

$19.49

9

O-Ring

420631612

$4.33

10

Distance Ring

420647267

$42.49

11

Torx Flange Screw M6 X 55

420440702

$3.06

12

Torx Flange Screw M6 X 35

420440274

$1.01

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Intermediate Gear Shaft

420620688

$51.99

18

Thrust Washer

420427011

$5.79

19

Needle Bearing

420932930

$27.49

20

Intermediate Gear, 19 Teeth

420434588

$48.99

21

Main Shaft

420637044

$319.99

22

Needle Bearing

420632070

$25.99

23

Gear Pinion, 34 Teeth

420434873

$89.99

24

Retaining Ring

420845772

$6.38

25

Shifting Sleeve

420257954

$85.99

26

Gear Pinion, 46 Teeth

420434865

$85.99

27

Gear Pinion, 36 Teeth

420434857

$93.99

28

Shifting Sleeve

420257945

$99.99

29

Ball Bearing

420932816

$42.49

30

Shift Fork

420657365

$114.99

31

Pivot

420258394

$22.49

32

Shift Fork Ass'y

420258515

$184.99

33>37

Index Lever | Includes 33a to 37

420248533

$64.99

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Torx Flange Screw M6 X 20

420441835

$3.17

39

Allen Screw M6 X 20

420241939

$0.73
