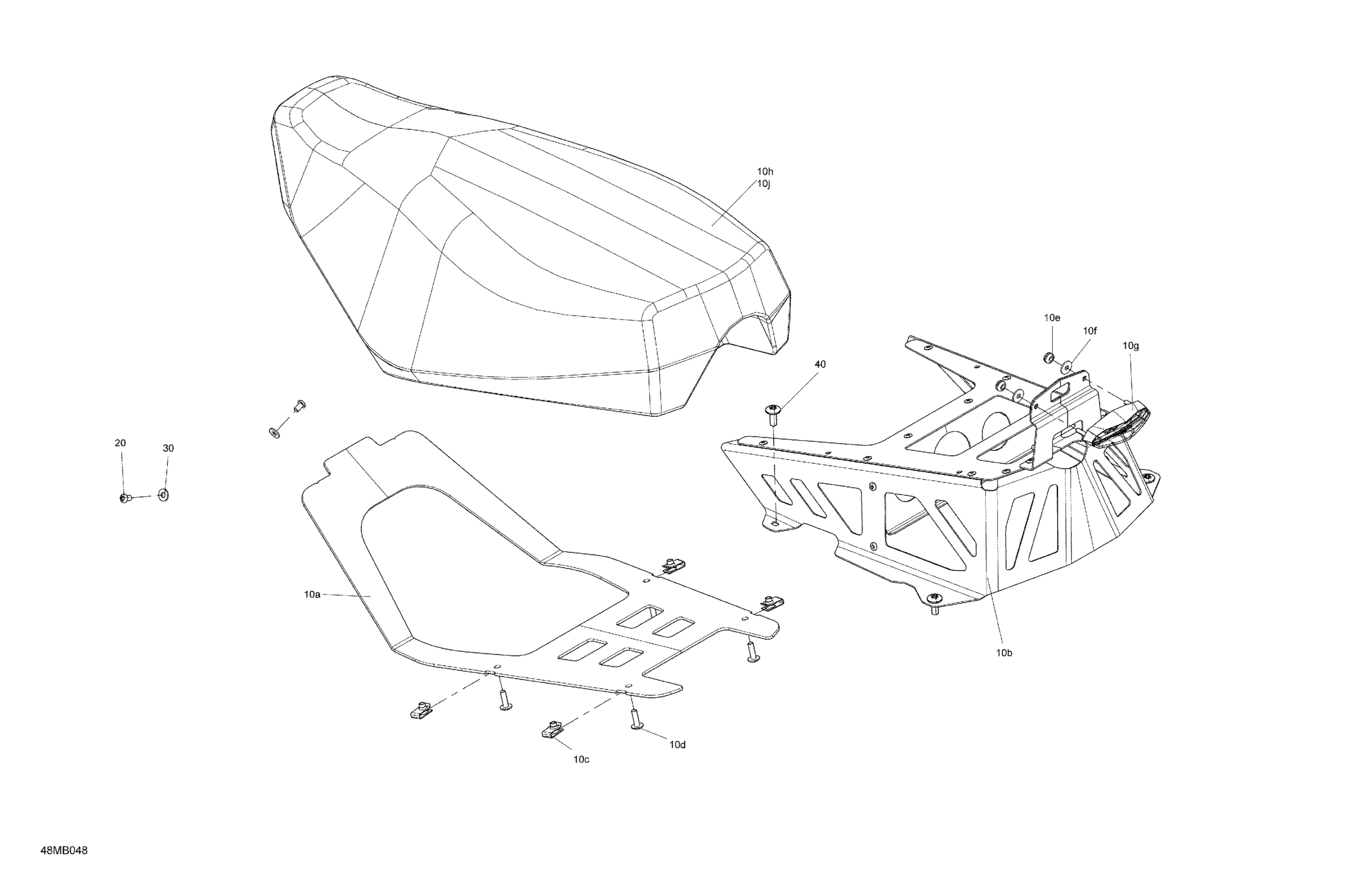

Ski-Doo MXZ 600RS - 2022 Body - Seat Diagram

#

Description
Price

10a

Seat Base

510006984

$276.89

10b

Seat Base

510007189

$266.89

10c

Panel Nut M6 X 1.0

250100198

$1.73

10d

Torx Screw M6 X 20

250000722

$1.34

10e

Elastic Flange Nut M5

233251494

$1.74

10f

Washer M5

250200025

$0.61

10g

Tail Light

520002636

$103.82

10h

Seat Foam

510006990

$147.66

10j

Seat Cover

510007445

$232.28

20

Torx Screw Button Head M6X10

250001158

$1.51

30

Flat Washer

250200039

$0.72

40

Torx Head Screw M6 X 16

250000717

$1.74
