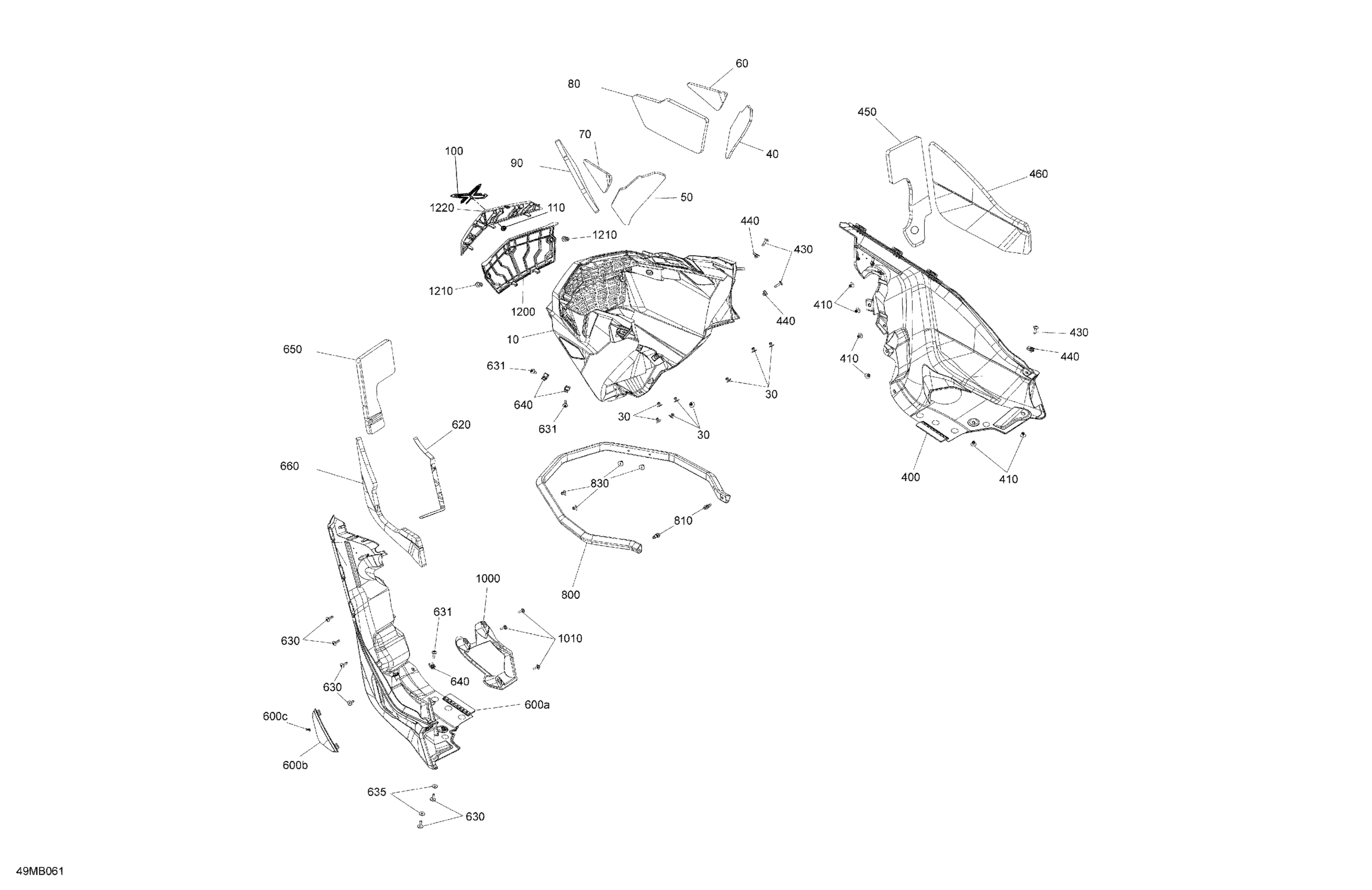

Ski-Doo MXZ 600RS - 2022 Body - Bottom Pan Diagram

#

Description
Price

10

Front Bottom Pan

502007775

$139.97

30

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

40

RH Upper Bottom Pan Foam

502007788

$16.12

50

LH Upper Bottom Pan Foam

502007789

$16.12

60

RH Bottom Pan Central Foam

502007545

$7.54

70

LH Bottom Pan Central Foam

502007546

$11.91

80

RH Lower Bottom Pan Foam

502007800

$19.20

90

LH Lower Bottom Pan Foam

502007799

$6.77

100

Emblem X

291004770

$8.65

110

Push Nut

250100206

$0.83

400

RH Bottom Pan

502008193

$86.89

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

430

Torx Truss M5 X 20

250000586

$3.61

440

Panel Nut M5 X 0.8

250000958

$3.48

450

RH Bottom Pan Upper Foam

502007547

$11.22

460

RH Bottom Pan Lower Foam

502007548

$11.22

600a

LH Bottom Pan

502008090

$86.89

600b

Door Bottom Pan

502008091

$53.05

600c

Hairpin Cotter

269800431

$1.00

620

Neoprene Seal (1PAC=3M)

219704364

$22.72

630

Torx Truss M5 X 20

250000586

$3.61

631

Torx Truss M5 X 20

250000586

$3.61

635

Washer M5

250200025

$0.61

640

Panel Nut M5 X 0.8

250000958

$3.48

650

LH Bottom Pan Upper Foam

502007549

$11.91

660

LH Bottom Pan Lower Foam

502007550

$11.22

800

Front Bumper

502007460

$174.99

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.12

830

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

1000

Protection Plate

502007670

$44.58

1010

Screw M4 X 16

250000725

$2.87

1200

Lower Prefilter Grille

502008674

$27.66

1210

Tuflok Plastic Rivet

293150230

$1.21

1220

Upper Hood Filter This part replaces 502008544.

508000959

$30.74
