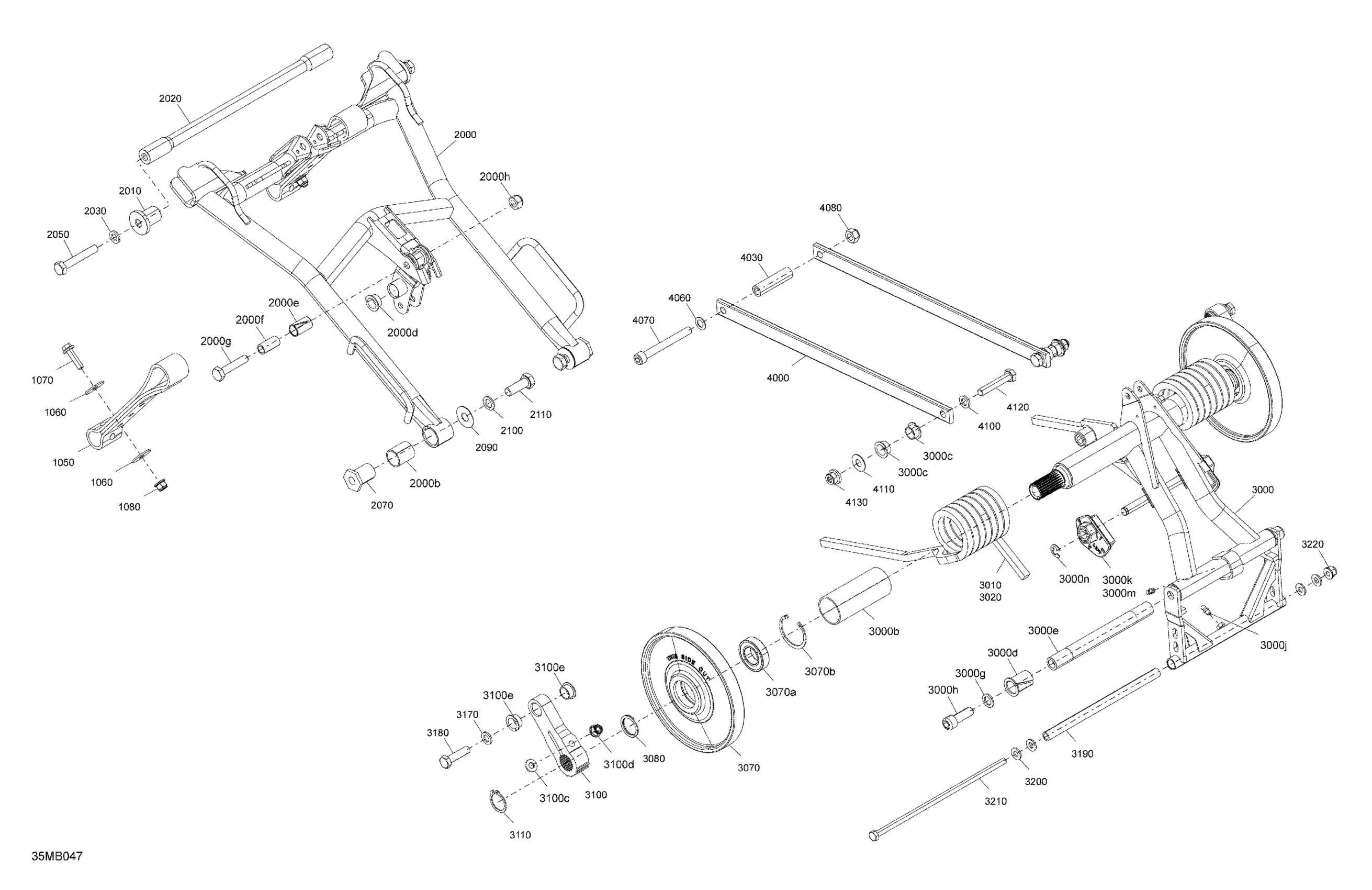

Ski-Doo MXZ 600RS - 2022 Suspension - Rear - Upper Section Diagram

#

Description
Price

1050

Stopper Strap

503192360

$19.97

1060

Flat Washer 8 mm

250200128

$1.74

1070

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

1080

Elastic Flange Nut M8

233281466

$0.83

2000

Front Arm Ass'y | Included 2000 to 2000h

503195792

$443.05

2000b

Bushing

503191554

$5.88

2000d

Swivel Bushing

503191555

$5.71

2000e

Bushing

503193037

$15.35

2000f

Bushing | Includes 240d to 240d1

503189282

$4.18

2000g

Hex. Screw M5 X 20

207152044

$0.88

2000h

Washer

250200016

$0.72

2010

Bushing

503192721

$34.58

2020

Slide Bushing

503192713

$93.82

2030

Washer

503192496

$0.75

2050

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.31

2070

Lower Axle

503191966

$15.35

2090

Washer

503190656

$2.91

2100

Washer

503192491

$4.38

2110

Hex. Cap Screw M12 X 35

250000537

$2.63

3000

Rear Arm Ass'y | Includes 3000 to 3000p

503195835

$207.66

3000b

Bushing

503194817

$15.26

3000c

Swivel Bushing

503191555

$5.71

3000d

Cushion

503191640

$5.71

3000e

Lower Shaft

503193867

$54.58

3000g

Washer

503192491

$4.38

3000h

Socket Head Screw M12 X 35

205523554

$4.28

3000j

Grease Fitting

408200700

$2.80

3000k

LH Cam Adjuster

503191565

$13.95

3000m

RH Cam Adjuster

503191566

$13.95

3000n

E-Circlip

293370013

$0.62

3010

LH Spring

503195371

$77.66

3020

RH Spring

503195372

$77.66

3070

Black, Wheel Ass'y 180mm | Includes 3070 to 3070b

503194819

$49.97

3070a

Ball Bearing

503193548

$16.89

3070b

Retaining Ring

415129780

$13.88

3080

Axle Spring

503189146

$7.54

3100

Link Ass'y | Includes 3100 to 3100f

503194804

$78.43

3100c

Washer

503192494

$3.11

3100d

Elastic Flange Nut M8

233281466

$0.83

3100e

Swivel Bushing

503191555

$5.71

3110

Retaining Ring

293370080

$2.12

3170

Washer

503192496

$0.75

3180

Cap Screw Hex. M10 X 40

207204056

$6.18

3190

Pivot Arm Axle

503189156

$20.74

3200

Washer

503192494

$3.11

3210

Bolt M8 X 248mm

503192440

$29.97

3220

Elastic Flange Nut M8

233281466

$0.83

4000

Tie Rod

503195818

$59.97

4030

Bar Axle

503191192

$40.74

4060

Flat Washer

250200084

$2.76

4070

Socket Screw M10 X 90

205009044

$7.23

4080

Elastic Locking Nut M10

233601466

$1.74

4100

Washer

503192496

$0.75

4110

Washer

250200032

$4.98

4120

Hex. Screw S.Grip M10 X 55

250000605

$6.18

4130

Flange Elastic Nut M10

233201466

$2.63
