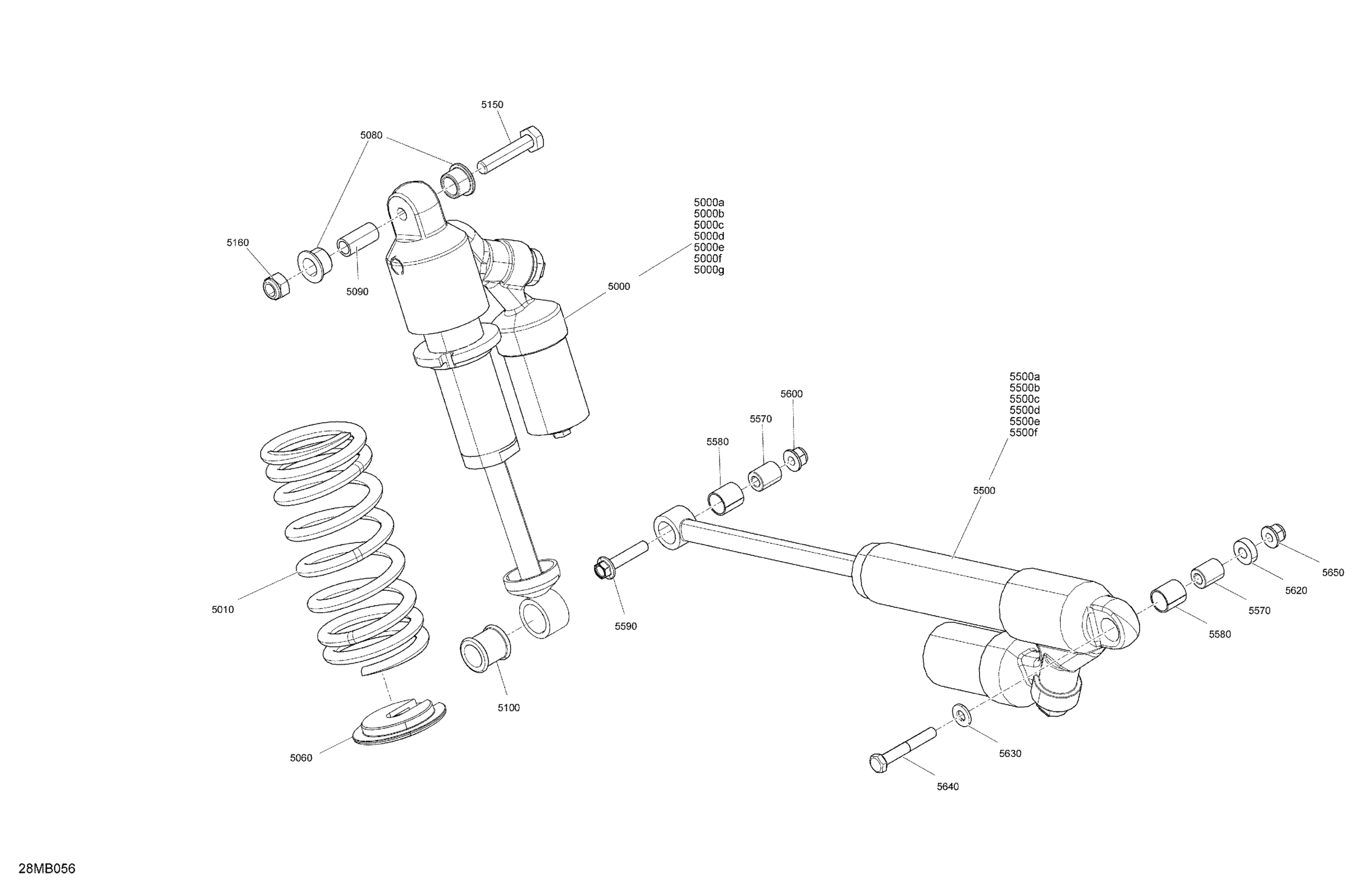

Ski-Doo MXZ 600RS - 2022 Suspension - Rear Shocks Diagram

#

Description
Price

5000

Center Shock | Included 5000 to 5000g

503195820

$812.99

5000a

O-Ring

415093807

$35.99

5000b

Piston Ring | Not Shown

415093806

$16.86

5000c

Air Valve

505070398

$20.99

5000d

Screw | Not Shown

505070399

$4.12

5000e

O-Ring

505070400

$4.54

5000f

Circlip - Call your local BRP dealership

715900076

$4.12

5000g

O-Ring

415093804

$4.54

5010

Spring

503195824

$67.99

5060

Stopper Spring

503196103

$27.99

5080

Urethane Bushing

503189117

$8.19

5090

Bushing | Includes 240d to 240d1

503189282

$4.34

5100

Bushing

503189271

$13.99

5150

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

5160

Elastic Locking Nut M10

233601466

$2.11

5500

Rear Shock | Included 5500 to 5500f

503195821

$877.49

5500a

Piston Ring | Not Shown

415093806

$16.86

5500b

Air Valve

505070398

$20.99

5500c

Screw | Not Shown

505070399

$4.12

5500d

O-Ring

505070400

$4.54

5500e

Circlip - Call your local BRP dealership

715900076

$4.12

5500f

O-Ring

415093804

$4.54

5570

Axle Shock Absorber

503196509

$12.58

5580

Leg Cushion

505072663

$9.23

5590

Hex. Flange Screw M8 X 40

207684044

$1.48

5600

Elastic Flange Nut M8

233281466

$1.01

5620

Spacer

503190526

$10.49

5630

Washer

503192494

$3.17

5640

Hex. Screw M8 X 55

207085556

$1.69

5650

Elastic Flange Nut M8

233281466

$1.01
