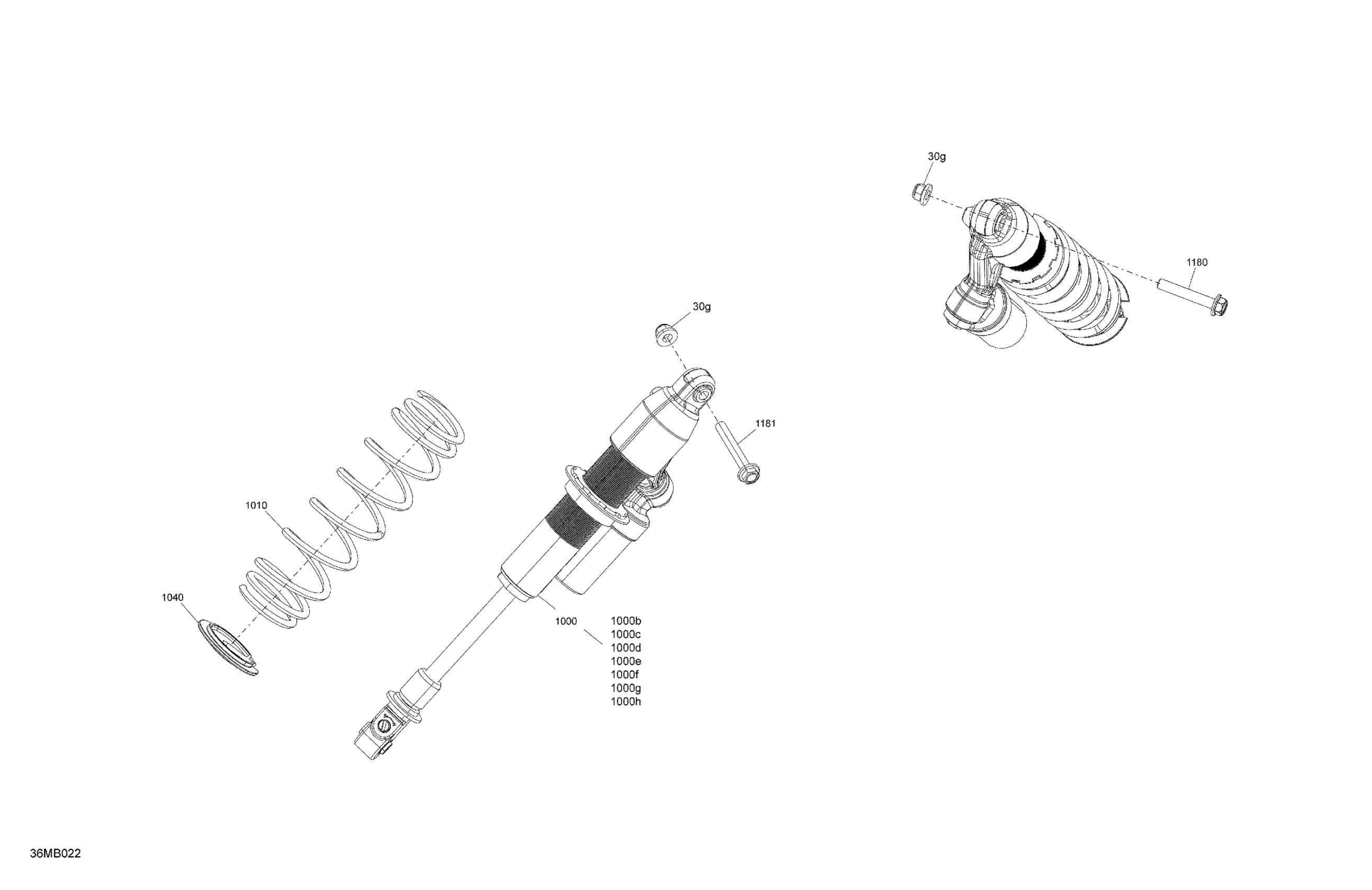

Ski-Doo 009 - MXZ 600RS - North America, 2022 05- Suspension - Front Shocks Diagram

Description

Price

1000

Front Shock | Included 1000 to 1000h

505075063

$877.49

1000b

O-Ring

415093807

$35.99

1000c

Piston Ring | Not Shown

415093806

$16.86

1000d

Air Valve

505070398

$20.99

1000e

Screw | Not Shown

505070399

$4.12

1000f

O-Ring

505070400

$4.54

1000g

Circlip - Call your local BRP dealership

715900076

$4.12

1000h

O-Ring

415093804

$4.54

1010

Deep Black, Spring

505075131

$67.99

1040

Spring Stopper

503196109

$43.99

1180

Hex. Flange Screw M10 X 6

207606046

$4.12

1181

Hex. Flange Screw M10 X 70

207607046

$2.96

30g

Hex. Flange Elastic Nut M10

233201436

$2.11
