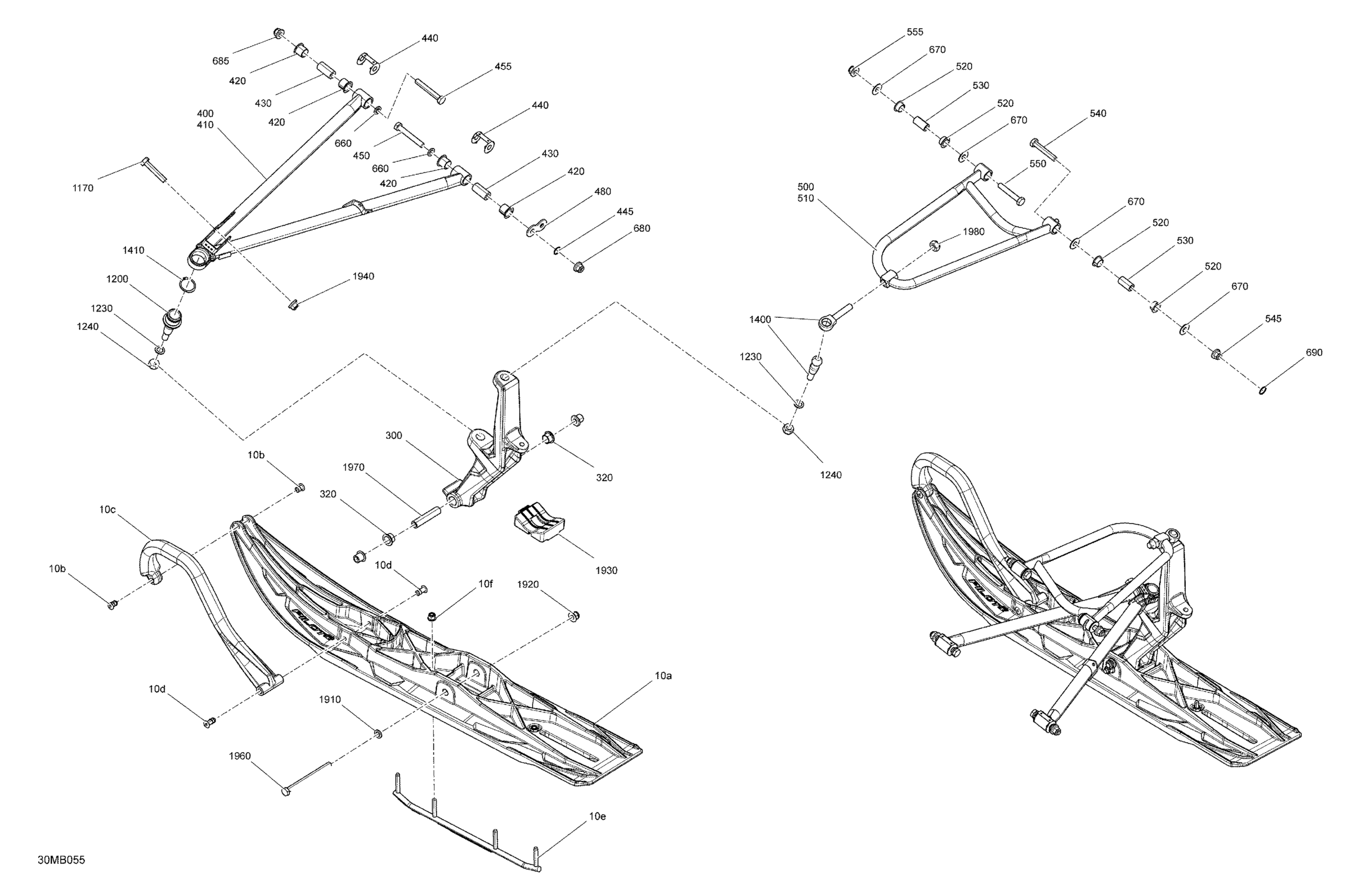

Ski-Doo MXZ 600RS - 2022 Suspension - Front Diagram

#

Description
Price

10a

Black, Racing Ski

505074670

$180.99

10b

Retainer 17mm long

505071812

$5.95

10c

Handle

505074308

$35.99

10d

Retainer 23mm Long

505072133

$6.78

10e

Runner Kit

860201697

$139.99

10f

Hex. Flange Elastic Nut M8

233281414

$1.47

300

Sunburst Yellow, Ski Leg

505075354

$224.99

320

Leg Bushing

505072690

$12.49

400

RH Lower Arm

505074655

$204.99

410

LH Lower Arm

505074654

$204.99

420

Cushion

503191766

$5.93

430

Aluminum Bushing

505072401

$18.73

440

Wear Plate

505072634

$6.29

445

O-Ring

505072448

$2.32

450

Screw Hex. M10 X 70

250001024

$2.11

455

Screw Hex. M10 X 70

250001024

$2.11

480

Rear Reinforcement

505074424

$12.49

500

LH Upper Arm

505074899

$204.99

510

RH Upper Arm

505074900

$204.99

520

Bushing

505073018

$10.13

530

Sleeve

505072143

$9.00

540

Screw Hex. M10 X 60

250001023

$2.11

545

Hex. Flange Elastic Nut M10

250100165

$0.85

550

Screw Hex. M10 X 60

250001023

$2.11

555

Hex. Flange Elastic Nut M10

250100165

$0.85

660

Washer

503189564

$0.74

670

Washer

505072392

$4.76

680

Hex. Flange Elastic Nut M10

250100165

$0.85

685

Hex. Flange Elastic Nut M10

250100165

$0.85

690

O-Ring

505072448

$2.32

810

Cap

517302716

$4.69

1170

Hex Screw M10 X 1.5 X 55

207005554

$7.51

1200

Ball Joint

505074133

$53.99

1230

Washer

503192491

$4.54

1240

Hex Elastic Nut M12 X 1.25

232521464

$2.11

1400

Upper Ball Joint

505072257

$17.58

1410

Snap Ring

293370098

$3.17

1910

Washer

503192496

$0.77

1920

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

1930

Ski Stopper

505072594

$18.49

1940

Hex. Flange Elastic Nut M10

233201436

$2.11

1960

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

1970

Ski Axle

505073691

$14.22

1980

Hex. Elastic Hex. Nut M12

250100089

$0.46
