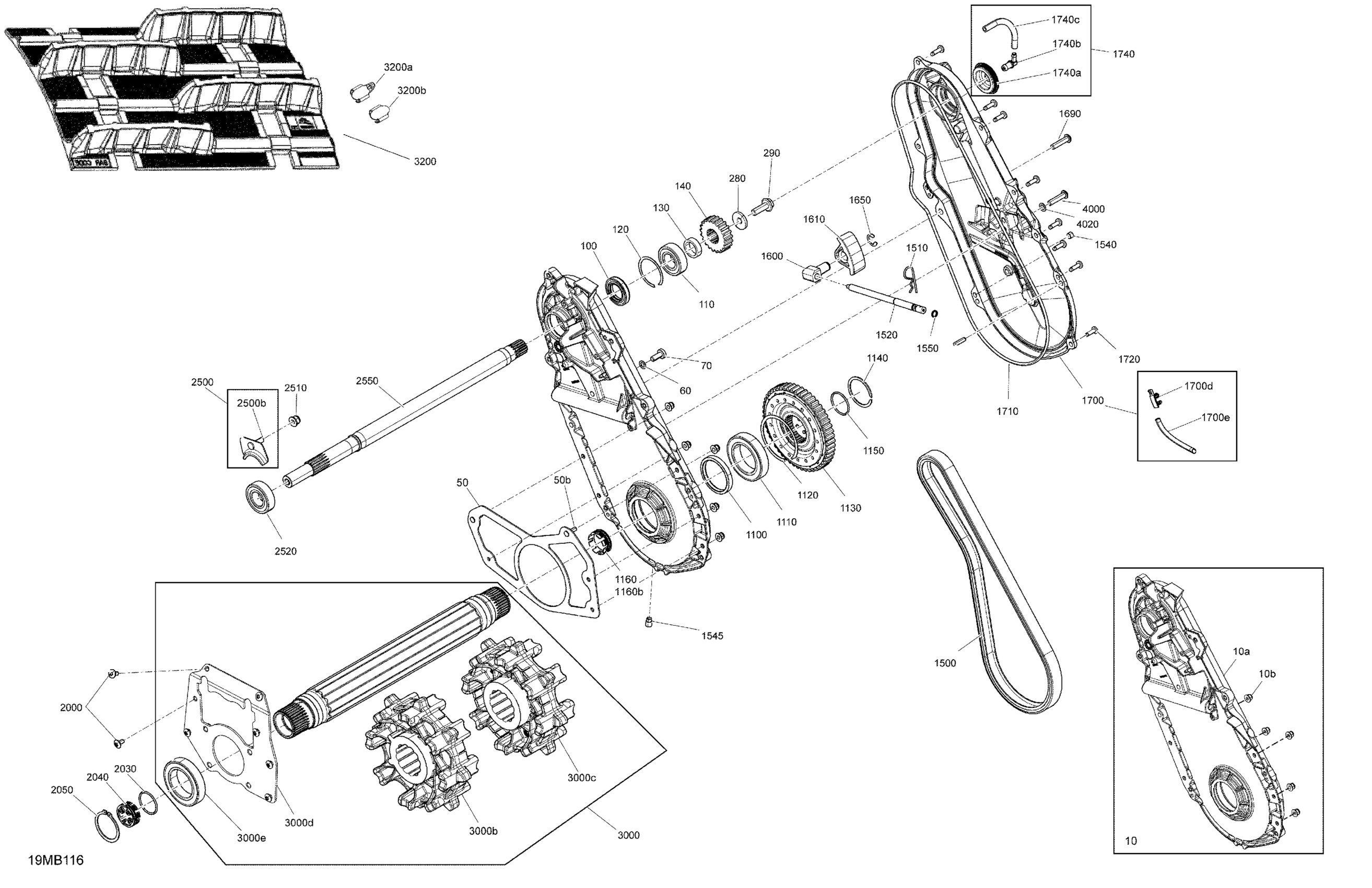

Ski-Doo MXZ 600RS - 2022 Drive - System Diagram

#

Description
Price

10

Black, Chain Case Ass'y | Includes 10 to 10b

504153720

$82.81

10a

Kit Plate Ass'y

861805514

$70.87

10b

Flange Elastic Nut M6

233261434

$4.15

50

Kit Plate Ass'y

861805514

$70.87

50b

Clinch Stud M6 X 20

250300027

$1.87

60

Washer

504082900

$2.51

70

Torx Screw M8 X 20, Scotch Grip

250000740

$2.40

100

Oil Seal

293200168

$13.24

110

Ball Bearing

293350115

$10.82

120

Circlip

504152576

$8.45

130

Shim

504152628

$8.15

140

Sprocket 22 Teeth Large

504091100

$64.90

280

Spring Washer M10

504152784

$6.07

290

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.82

1100

Oil Seal

293200159

$12.73

1110

Ball Bearing

293350059

$29.82

1120

Circlip

504152582

$8.45

1130

Sprocket , 51 Teeths

504153952

$679.07

1140

Circlip

293370134

$2.82

1150

O-Ring

293300201

$0.96

1160

Magnetic Cap | Includes 150c to 150c2

504154019

$25.34

1160b

Cap

504154043

$2.03

1500

Drive Chain, 110 Links

504153266

$173.85

1510

Hair Pin

414575600

$1.73

1520

Adjustment Screw

504153760

$23.10

1540

Hex. Countersunk Drain Plug

250500013

$6.58

1545

Magnetic Plug

504153704

$4.73

1550

O-Ring

293300202

$0.96

1600

Tensioner

504153559

$15.64

1610

Slider Chain

504153312

$65.64

1650

Circlip

293370105

$2.00

1690

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$1.91

1700

Deep Black, Chain Case Cover Ass'y | Includes 1700 to 1700f

504154066

$174.60

1700d

Clip Connector

515178223

$1.87

1700e

Braided Sleeve

415130141

$54.45

1710

O Ring

293300214

$11.18

1720

Hex. Flange Screw M6X20

250001153

$2.01

1740

Cap Ass'y | Included 1740 to 1740c

504152861

Unavailable

1740a

Cap

504152860

$18.63

1740b

Male Connector

414580700

$3.88

1740c

Polyurethane Hose 10000Mm Long

219704410

$52.96

2000

Torx Truss Screw M6 X 12

250000767

$1.91

2030

O-Ring

293300201

$0.96

2040

Cap

504154043

$2.03

2050

Circlip

504152572

$6.07

2500

Bearing Housing | Includes 2500 to 2500b

504153491

$33.55

2500b

Clinch Stud, M8 X 25

250300028

$4.15

2510

Hex. Flange Elastic Nut M8

233281414

$1.31

2520

Ball Bearing

293350115

$10.82

2550

Countershaft

504154153

$358.18

3000

Drive Axle Ass'y | Includes 3000 to 3000f

504154088

$379.07

3000b

Sold With Drive Axle

XXXX

Unavailable

3000c

Sold With Drive Axle

XXXX

Unavailable

3000d

Plate Retaining Ass'y

504154147

$48.48

3000e

Ball Bearing

293350059

$29.82

3200

Track 15 X 137 X 1,75 | Includes 3200 to 3200b

504154398

$1,049.99

3200a

Track Guide | Track Width 16''

415129528

$3.03

3200b

Cleat

504152651

$7.97

4000

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$1.91

4020

Washer

504082900

$2.51
