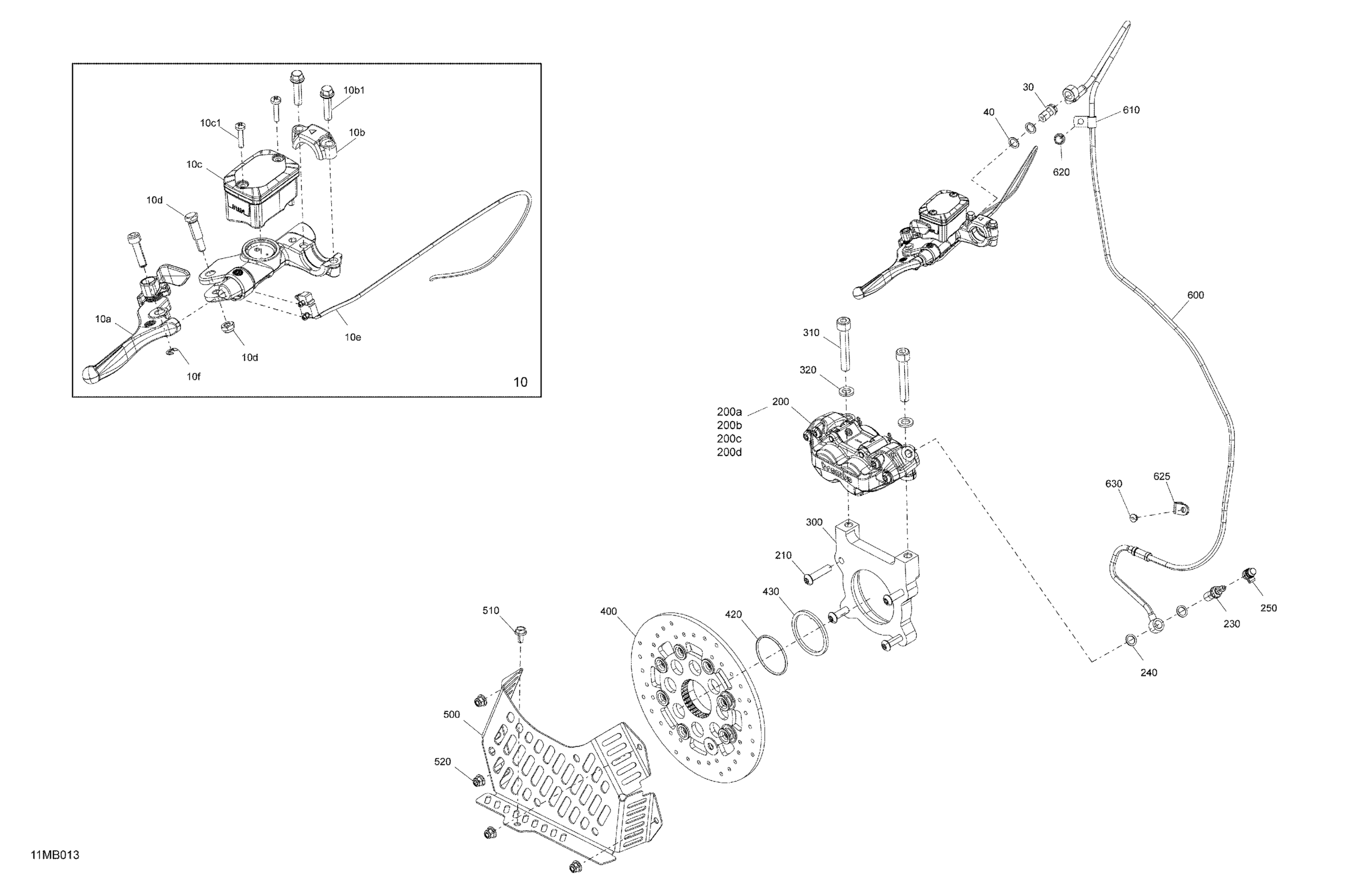

Ski-Doo MXZ 600RS - 2022 Mechanic - Brakes Diagram

#

Description
Price

10

Cylinder Master | Includes 10 to 10g

507032614

$189.99

10a

Lever With Parking Lock

507032476

$99.99

10b

Clamp And Screw Kit

507032477

$23.99

10b1

Hex. Flange Screw M6 X 25

250000447

$2.11

10c

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

507032478

$109.99

10c1

Screw M4 X 20

415129356

$2.22

10d

Pin Ass'y

415030000

$19.99

10e

Microswitch

507032601

$72.99

10f

Circlip | Model-RS

414439000

$4.23

30

Banjo Bolt

507032551

$5.61

40

Washer

414920600

$1.90

200

Brake Caliper Ass'y | Includes 200 to 200d

507032613

$540.49

200a

Brake Pads Kit

507032615

$116.49

200b

Pin & Spring Kit

507032616

$42.99

200c

Spring Plate

507032617

$59.49

200d

Spring Clips

507032618

$34.99

210

Screw-torx Button Head M8 X 35

250000971

$5.03

230

Banjo Bolt/ Bleeder

705601201

$19.99

240

Washer

414920600

$1.90

250

Bleeder Bolt Cap

705601190

$4.44

300

Brake Caliper Support

507032647

$121.99

310

Socket Screw M10 X 60

244006060

$3.59

320

Washer

503192496

$0.77

400

Disc Brake Ass'y

507032740

$259.49

420

O-Ring

293300134

$2.32

430

Spacer

507032612

$13.16

500

Disc Brake Guard

507032674

$91.99

510

Hex. Flange Screw M6 X 12

207661254

$2.11

520

Hex. Flange Elastic Nut M6

233261466

$2.00

600

Brake Hose

507032649

$62.49

610

Open Clamp

414108400

$3.17

620

Hex. Flange Screw M6 X 10

210261040

$1.48

625

Hose Clamp

293650257

$5.99

630

Blind Rivet 3/16

293150231

$0.32
