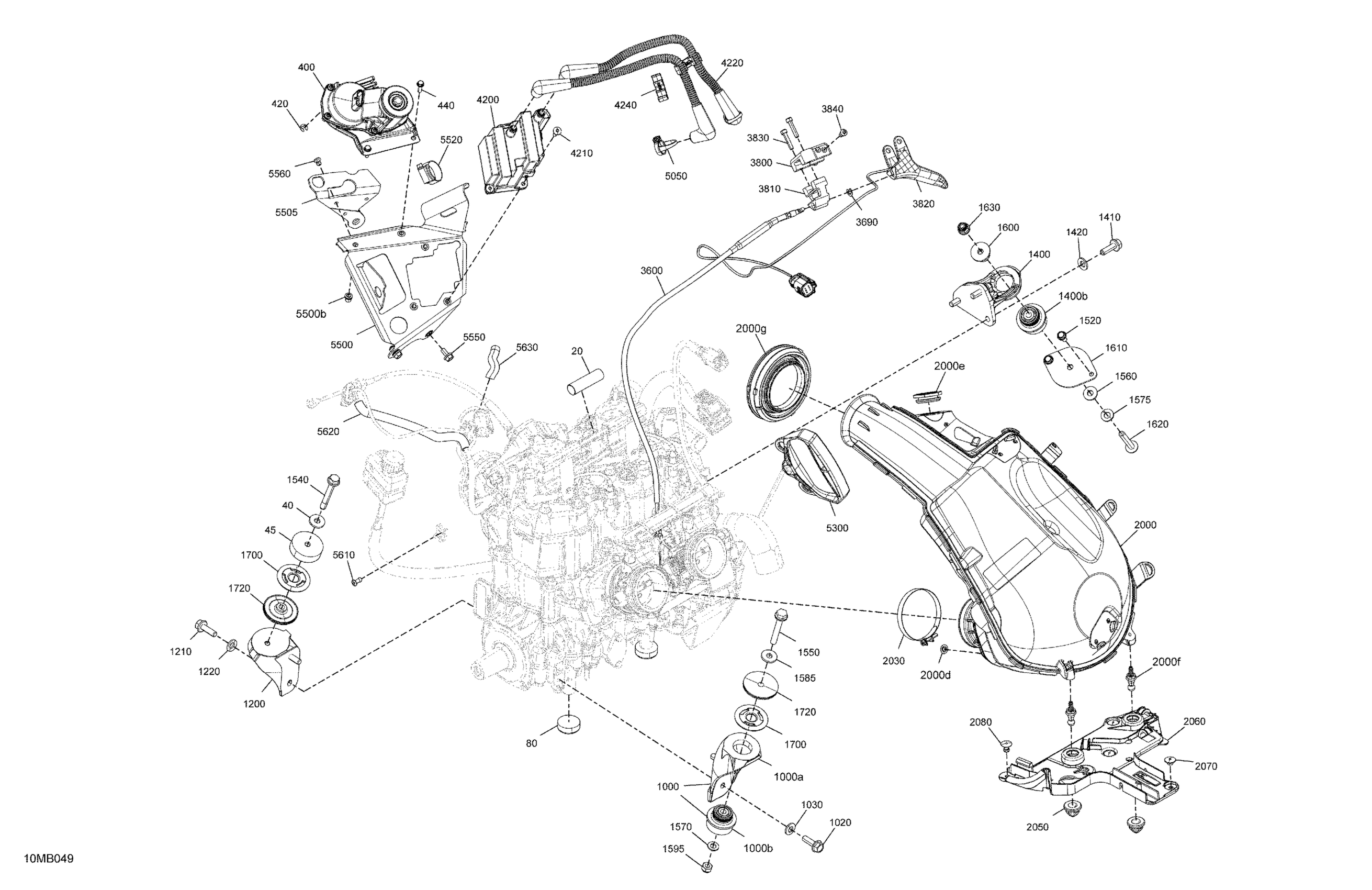

Ski-Doo 009 - MXZ 600RS - North America, 2022 02- Engine - System Diagram

#

Description
Price

20

Braided Sleeve 60MM Long

515178492

$5.39

40

Yellow, Washer

503183200

$3.19

45

Limiter

512061340

$39.99

80

Stopper

512061204

$23.49

400

Servo Motor Ass'y

420889432

$329.99

420

Circlip

293370122

$4.29

440

Hex. Flange Screw, Scotch Grip

207551634

$2.00

1000

Support Ass'y | Includes 1000 to 1000b

512061283

$81.99

1000a

Rear PTO Support

512061024

Unavailable

1000b

Rubber Mount

512061284

Unavailable

1020

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

1030

Conical Spring Washer M8

250200146

$1.01

1200

Front PTO Support

512061025

$31.99

1210

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

1220

Conical Spring Washer M8

250200146

$1.01

1400

MAG Support | Includes 1400 to 1400b

512061349

$81.99

1400b

Rubber Mount

512061284

Unavailable

1410

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

1420

Conical Spring Washer M8

250200146

$1.01

1520

Hex. Flange Screw M6 X 16

250001062

$1.57

1540

Hex. Flange Screw Din.6921 S.Grip M8 x 60

207586046

$2.40

1550

Hex. Flange Screw M8 X 55

207585544

$1.69

1560

Washer

506151245

$0.93

1570

Flat Washer With Teflon 8 mm

250200008

$3.80

1575

Conical Spring Washer M8

250200146

$1.01

1585

Yellow, Washer

503183200

$3.19

1595

Hex. Elastic Stop Nut M8

232581414

$0.56

1600

Limiter

512061351

$17.61

1610

Shim

512061347

$6.95

1620

Torx Screw M8 X 55

250000535

$3.17

1630

Hex. Flange Elastic Nut M8

233281414

$1.47

1700

Engine Stopper

512061137

$8.57

1720

Spacer

512061335

$20.49

2000

Chamber Ass'y | Includes 2000 to 2000h

508001093

$184.99

2000d

Push Nut

732610072

$2.19

2000e

Rubber

512061083

$8.89

2000f

Screw

420441840

$2.11

2000g

Boot

508000805

$18.49

2030

GEMI Clamp

293650212

$7.65

2050

Rubber Cap

420201630

$4.44

2060

Airbox Support

512061274

$12.49

2070

Pop Rivet 3/16"

293150103

$0.55

2080

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

3600

Throttle Cable

512061295

$20.99

3690

Circlip

414274500

$0.90

3800

Upper Housing

512061365

$77.99

3810

Lower Housing

512061294

$77.99

3820

Throttle Ass'y

512061266

$124.99

3830

Socket Screw M5 X 25

205052544

$1.68

3840

Flange Screw M5x12

250000991

$7.51

4200

Ignition Coil

512061168

$132.49

4210

Torx Screw M5 X 20

250000724

$1.69

4220

Ignition Cable

512061166

$27.49

4240

Spark Plug Wire Holder

512061238

$4.44

5050

Clamp

512060993

$5.39

5300

Starter Grip

512060136

$14.83

5500

Support | Includes 5500 to 5500b

512061276

$85.99

5500b

Insert M5 X 0.8

293450268

$2.09

5505

Support

512061296

$19.49

5520

Gear Clamp

509000931

$14.22

5550

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

5560

Avex Rivet

390909100

$0.30

5610

Pop Rivet 3/16"

390402300

$0.75

5620

Was 409901700 Tubing (9 mm)

219704399

$84.99

5630

Was 409901700 Tubing (9 mm)

219704399

$84.99
