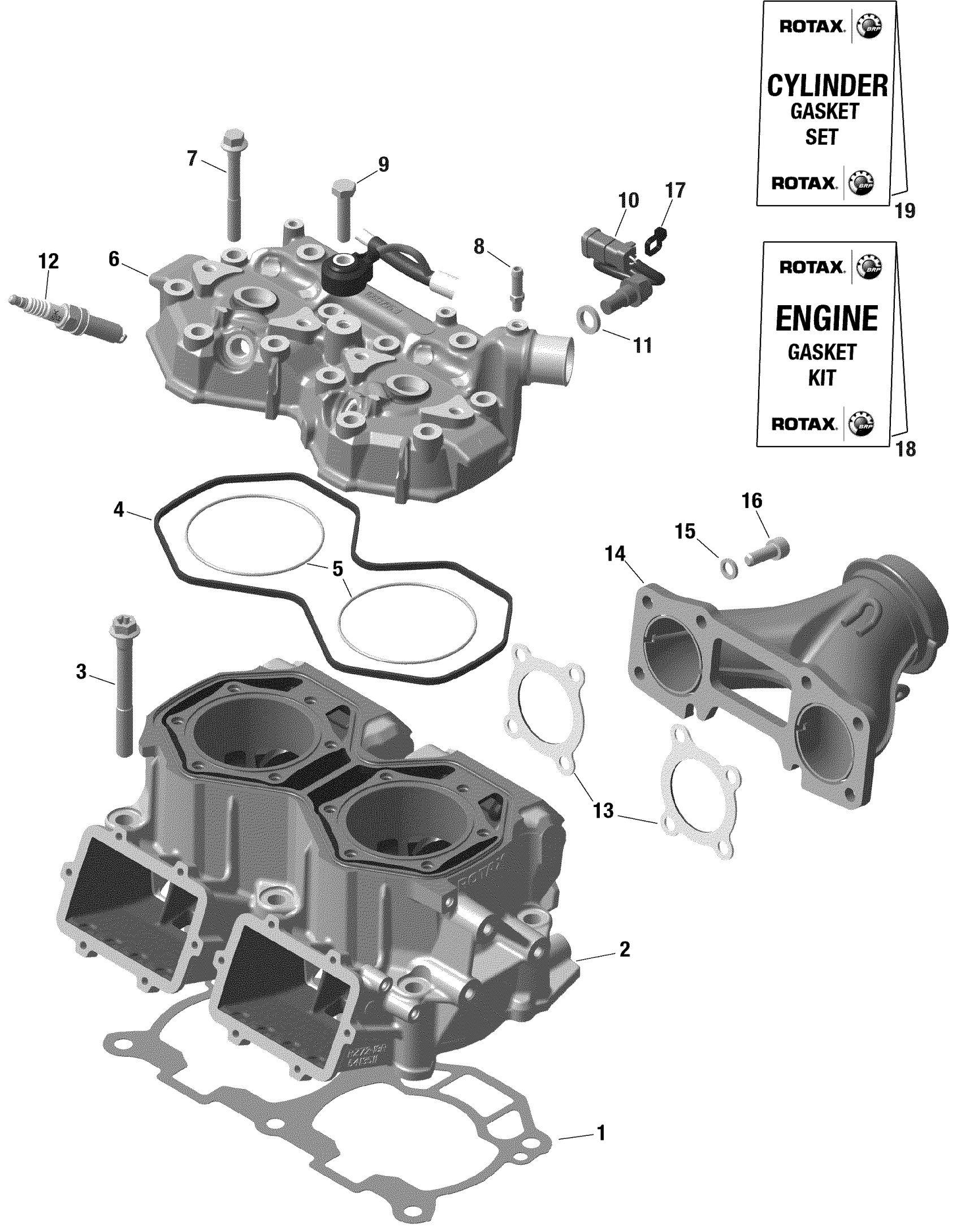

Ski-Doo MXZ 600RS - 2022 Rotax - Cylinder And Cylinder Head - Ski-doo Diagram

#

Description
Price

1

Gasket 0.8 | Included in gasket kit

420831073

$23.49

1

Gasket 0.9 | Included in gasket kit

420831074

$21.99

1

Gasket 0.6 | Included in gasket kit

420831071

$20.99

1

Gasket 0.5 | Included in gasket kit

420831070

$17.53

1

Gasket 0.7 | Included in gasket kit

420831072

$20.49

2

Cylinder Block

420413528

$1.00

3

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$19.99

4

Square Ring | Included in gasket kit

420430044

$6.19

5

O-Ring Cylinder | Included in gasket kit

420831825

$5.99

6

Cylinder Head

420413449

$329.99

6

Cylinder Head

420413450

$329.99

7

Collar Hex Screw M8 X 68.5

420640959

$7.44

8

Hose Nipple

420924724

$14.83

9

Hex. Screw M8 X 35

207083544

$1.15

10

Temperature Sensor This part replaces 420664508.

420664509

$149.99

11

Aluminum Sealing Ring

420250016

$5.39

12

Spark Plug NGK ILKR9Q7G This part replaces 420297939.

415130652

$21.99

13

Gasket | Included in gasket kit

420430487

$8.89

14

Exhaust Manifold

420873040

$289.99

15

Washer

420427290

$2.11

16

Allen Screw M8 X 22

420841051

$2.11

17

Locking Tie 175 X 4 MM

420651817

$1.05

18

Engine Gasket Set

420894374

$248.99

19

Cylinder Gasket Set

420894262

$285.99
