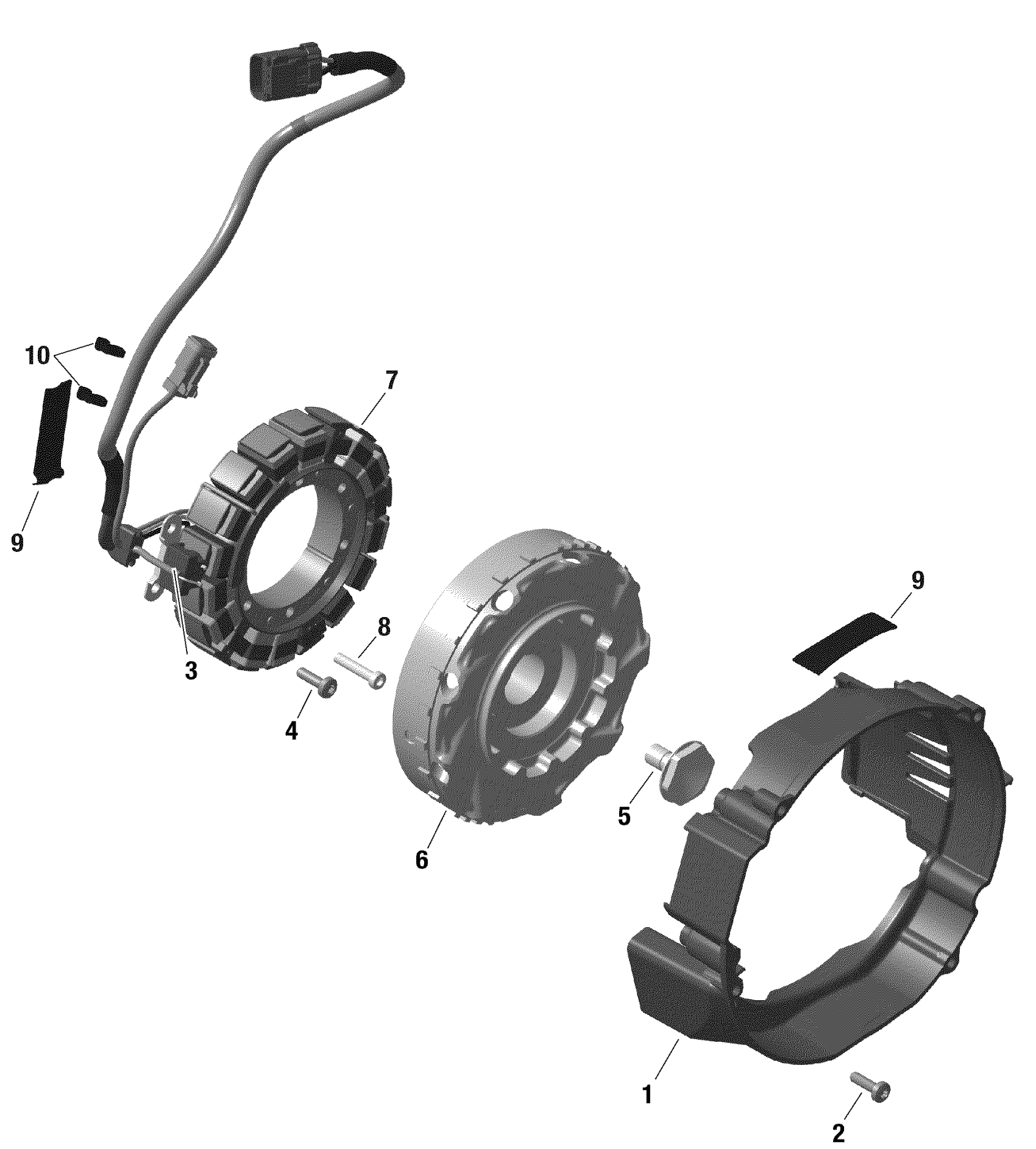

Ski-Doo 009 - MXZ 600RS - North America, 2020 10- Electric - Magneto - 598 RS Diagram

#

Description

Price

1

Ignition Housing

420911855

$22.49

2

Torx Flange Screw M6 X 20

420441386

$2.11

3

Pickup Ass'y

420966842

$109.99

4

Torx Flange Screw M6 X 20

420441386

$2.11

5

Collar Hex Screw M12 X 25

420840851

$20.99

6

Magneto Flywheel

420864434

$537.49

7

Stator Ass'y 55V/1300W

420864427

$478.99

8

Allen Screw M6 X 30

420540001

$3.29

9

Adhesive Pad, 1.6 mm X 20 mm X 60 mm

420201360

$2.99

10

Locking Tie 175 X 4 MM

420651817

$1.05
