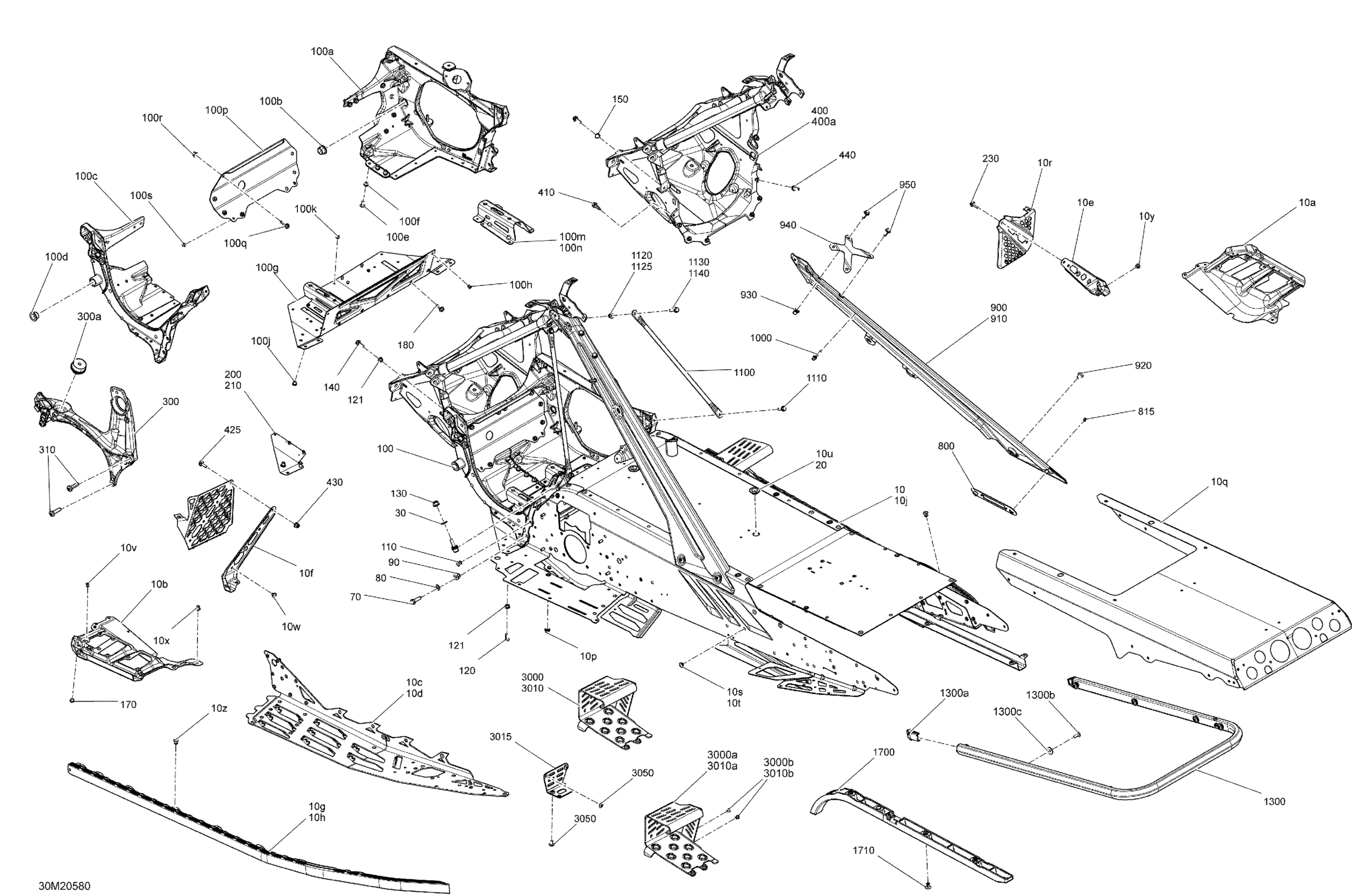

Ski-Doo MXZ 600RS - 2020 Frame - System - Racing Diagram

#

Description
Price

10

MODULE_CHASSIS TUNNEL 137 B-160 - Call your local BRP dealership | Includes 10 to 10z

415130368

Unavailable

10a

Deep Black, RH Footrest Reinforcement

518330738

$88.99

10b

Deep Black, LH Footrest Reinforcement

518331523

$88.99

10c

RH Footrest

518329010

$43.99

10d

LH Footrest

518329011

$43.99

10e

Stirrup Reinforcement

518331253

$21.99

10f

Deep Black, LH Chasssis Reinforcement

518331560

$19.99

10g

RH Roller

518329023

$194.99

10h

LH Roller

518329024

$194.99

10j

Radiator Tunnel Ass'y

518334033

$709.99

10p

Insert Half Hex Body M6 x 1.0

250100199

$3.19

10q

Tunnel 137 Rear

518331531

Unavailable

10r

RH Footrest

518328460

$44.99

10s

Black, Dart 8 mm

293730047

$2.21

10t

Black, Dart 10 mm

293730060

$4.55

10u

Black, Plug

293730052

$9.19

10v

Rivet Avibulb 3/16

293150203

$2.09

10w

Hemlock Rivet, 6.5 mm

293150096

$3.27

10x

Hemlock Rivet, 6.5 mm

293150119

$4.29

10y

Hemlock Rivet, 6.4 mm

293150174

$7.86

10z

Ornit Rivet 6,5 X 14.5

293150266

$2.40

20

Black, Plug

293730052

$9.19

30

Washer

506151252

$3.17

70

Hex Screw M8 X 30

250000942

$1.15

80

Flat Washer 8 mm

234081410

$0.83

90

Hex. Flange Elastic Nut M8

233281414

$1.47

100

Engine Chassis Module | Includes 100 to 100s

518334278

$729.99

100a

RH Member Ass'y | Includes 100a to 100b

518330545

$229.99

100b

Leg Cushion

505073317

$8.66

100c

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

100d

Leg Cushion

505073317

$8.66

100e

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

100f

Collar Huck Magna-Grip 6.4

293150149

$0.48

100g

Bottom Plate

518331661

$36.99

100h

Rivet Avibulb 3/16

293150203

$2.09

100j

Insert M5 X 0.8

293450268

$2.09

100k

Rivet Avibulb 3/16

293150203

$2.09

100m

RH Cross Link

518329814

Unavailable

100n

LH Cross Link

518330641

Unavailable

100p

Front Member

518330100

$60.99

100q

Hex. Flange Screw M6 X 20

207662046

$2.11

100r

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

100s

Rivet Avibulb 3/16

293150203

$2.09

110

Ornit Rivet 6,5 X 14.5

293150266

$2.40

120

Tork Screw M6 X 18

250000536

$2.11

121

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

130

Hex. Flange Elastic Nut M8

233281414

$1.47

140

Hex. Flange Screw M6 X 20

207662044

$2.00

150

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

170

Insert M5 - 0.8

293450267

$4.59

180

Hex. Flange Screw M6 X 16

207661646

$1.36

200

LH Junction Reinforcement

518329493

$22.49

210

RH Junction Reinforcement

518329494

$22.49

230

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

300

Brace Ass'y | Includes 300 to 300b

518330166

$349.99

300a

Rubber Mount

512061284

Unavailable

310

Screw-Pan HD.Torx M8X30

250001060

$0.82

400

Chassis Suspension Module

518333318

$859.99

400a

Chassis Suspension Module

518334459

$709.99

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

425

Hex. Flange Screw M6 X 20

207662044

$2.00

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

440

Hex. Flange Screw M6 X 16

207661646

$1.36

800

Member Fixation Plate

518329480

$12.99

815

Rivet Avibulb 3/16

293150203

$2.09

900

LH Rear Diagonal Cross Member Ass'y

518334034

$119.99

910

Deep Black, RH Rear Diag. Cross Member Ass'y

518334035

$119.99

920

Pan Head Torx Screw M8 X 12

250000887

$1.90

930

Insert

293450275

$12.99

940

Brace Rear Member

518329499

$16.99

950

Hex. Flange Screw M6 X 16

207661644

$0.74

1000

Stud M5 X 20

250300629

$2.09

1100

Upper Colomn Support

518329974

$22.49

1110

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

1120

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

1125

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1130

Hex. Flange Screw M6 X 25

207662544

$0.64

1140

Hex. Flange Screw M6 X 20

207662044

$2.00

1300

Rear Bumper | Includes 1300 to 1300b

518331570

$111.49

1300a

Cap

520001612

$10.99

1300b

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1300c

Flat Washer

224061201

$1.37

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

3000

LH Footrest Ass'y | Includes 5000a to 5000a1a2

518331019

$219.99

3000a

LH Footrest Ass'y | Includes 5000a to 5000a1a2

518331019

$219.99

3000b

Avex Rivet

390909100

$0.30

3010

RH Footrest Ass'y | Includes 5000b to 5000b1a

518331020

$219.99

3010a

RH Footrest Ass'y | Includes 5000b to 5000b1a

518331020

$219.99

3010b

Avex Rivet

390909100

$0.30

3015

Support

518329838

$33.99

3050

Torx Truss Screw M6 X 12

250000767

$2.00
