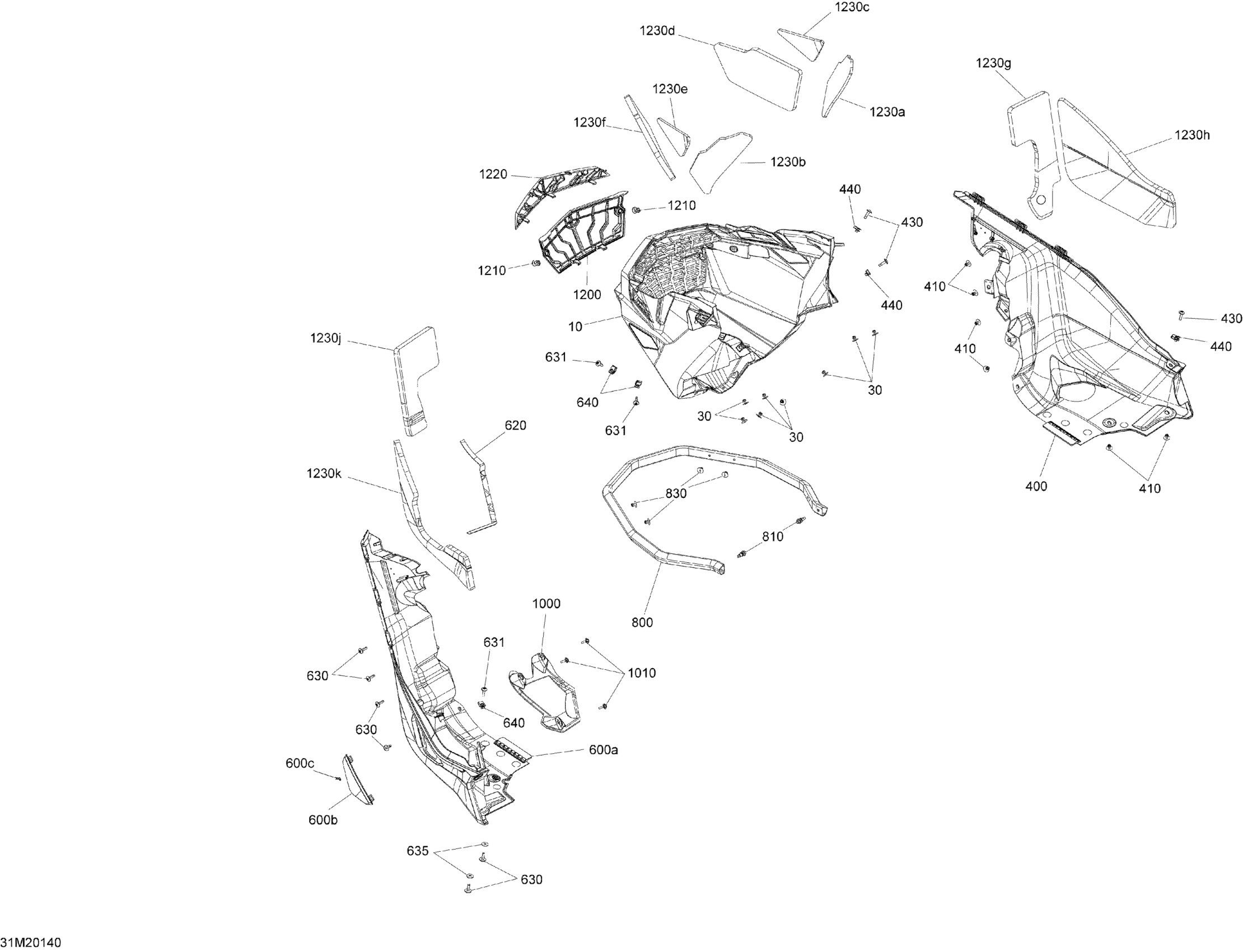

Ski-Doo 009 - MXZ 600RS - North America, 2020 09- Body - Bottom Pan Diagram

Description

Price

Front Bottom Pan

502007775

$149.99

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

400

Bottom Pan - Rh

502007755

$109.99

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

430

Torx Truss M5 X 20

250000586

$4.44

440

Panel Nut M5 X 0.8

250000958

$4.23

600a

LH Bottom Pan

502007675

$129.99

600b

Bottom Pan Door

502007676

$38.99

600c

Hairpin Cotter

269800431

$1.29

620

Neoprene Seal (1PAC=3M)

219704364

$27.49

630

Torx Truss M5 X 20

250000586

$4.44

631

Torx Truss M5 X 20

250000586

$4.44

635

Washer M5

250200025

$0.74

640

Panel Nut M5 X 0.8

250000958

$4.23

800

Front Bumper

502007460

$170.49

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

830

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1000

Protection Plate

502007670

$44.99

1010

Screw M4 X 16

250000725

$3.49

1200

Lower Prefilter Grille

502008674

$27.99

1210

Tuflok Plastic Rivet

293150230

$1.47

1220

Upper Hood Filter This part replaces 502008544.

508000959

$24.49

1230

Foam | Not shown

502007892

$56.99

1230a

RH Upper Bottom Pan Foam

502007788

$18.99

1230b

LH Upper Bottom Pan Foam

502007789

$18.99

1230c

RH Bottom Pan Central Foam

502007545

$9.59

1230d

RH Lower Bottom Pan Foam

502007800

$20.99

1230e

LH Bottom Pan Central Foam

502007546

$13.99

1230f

LH Lower Bottom Pan Foam

502007799

$7.89

1230g

RH Bottom Pan Upper Foam

502007547

$11.99

1230h

RH Bottom Pan Lower Foam

502007548

$11.99

1230j

LH Bottom Pan Upper Foam

502007549

$13.99

1230k

LH Bottom Pan Lower Foam

502007550

$11.99
