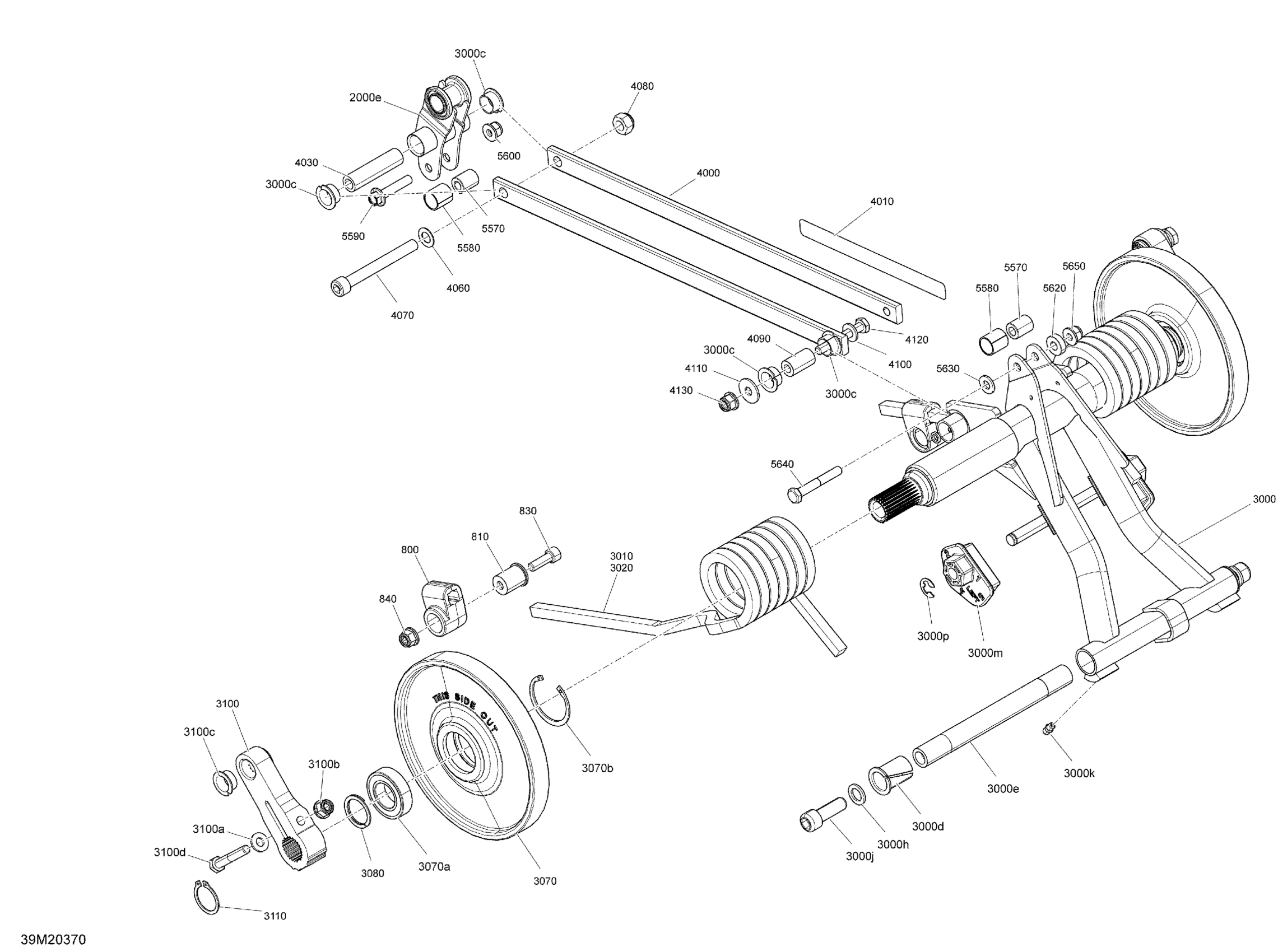

Ski-Doo MXZ 600RS - 2020 Suspension, Rear - Upper Section - Racing Diagram

#

Description
Price

800

Spring Support Kit

861805547

$8.14

810

Spring Support Kit

861805547

$8.14

830

Socket Screw M8 X 25

205082554

$1.74

840

Elastic Flange Nut M8

233281466

$0.83

2000e

Welded Rocker Arm

503195327

Unavailable

3000

Rear Arm Ass'y | Includes 3000 to 3000p

503194552

$212.28

3000c

Swivel Bushing

503191555

$5.71

3000d

Cushion

503191640

$5.71

3000e

Lower Shaft

503193867

$54.58

3000h

Washer

503192491

$4.38

3000j

Socket Head Screw M12 X 35

205523554

$4.28

3000k

Grease Fitting

408200700

$2.80

3000m

LH Cam Adjuster

503191565

$13.95

3000m

RH Cam Adjuster

503191566

$13.95

3000p

E-Circlip

293370013

$0.62

3010

LH Spring

503195371

$77.66

3020

RH Spring

503195372

$77.66

3070

Black, Wheel Ass'y 180mm | Includes 3070 to 3070b

503194819

$49.97

3070a

Ball Bearing

503193548

$16.89

3070b

Retaining Ring

415129780

$13.88

3080

Axle Spring

503189146

$7.54

3100

Link Ass'y | Includes 3100 to 3100f

503194804

$78.43

3100a

Washer

503192494

$3.11

3100b

Elastic Flange Nut M8

233281466

$0.83

3100c

Swivel Bushing

503191555

$5.71

3100d

Hex. Screw M8

207085056

Unavailable

3110

Retaining Ring

293370080

$2.12

4000

Tie Rod

503195323

$59.97

4010

Shock Position Decal

516005609

$16.89

4030

Bar Axle

503191192

$40.74

4060

Flat Washer

250200084

$2.76

4070

Socket Screw M10 X 90

205009044

$7.23

4080

Elastic Locking Nut M10

233601466

$1.74

4090

Axle Bar

503192555

$11.40

4100

Washer

503192494

$3.11

4110

Flat Washer 8 mm

234082410

$1.11

4120

Hex. Screw M8 X 55

207085586

$6.11

4130

Elastic Flange Nut M8

233281466

$0.83

5570

Axle Shock Absorber

503196509

$11.98

5580

Leg Cushion

505072663

$7.40

5590

Hex. Flange Screw M8 X 40

207684044

$1.25

5600

Elastic Flange Nut M8

233281466

$0.83

5620

Spacer

503190526

$8.72

5630

Washer

503192494

$3.11

5640

Hex. Screw M8 X 55

207085556

$1.65

5650

Elastic Flange Nut M8

233281466

$0.83
