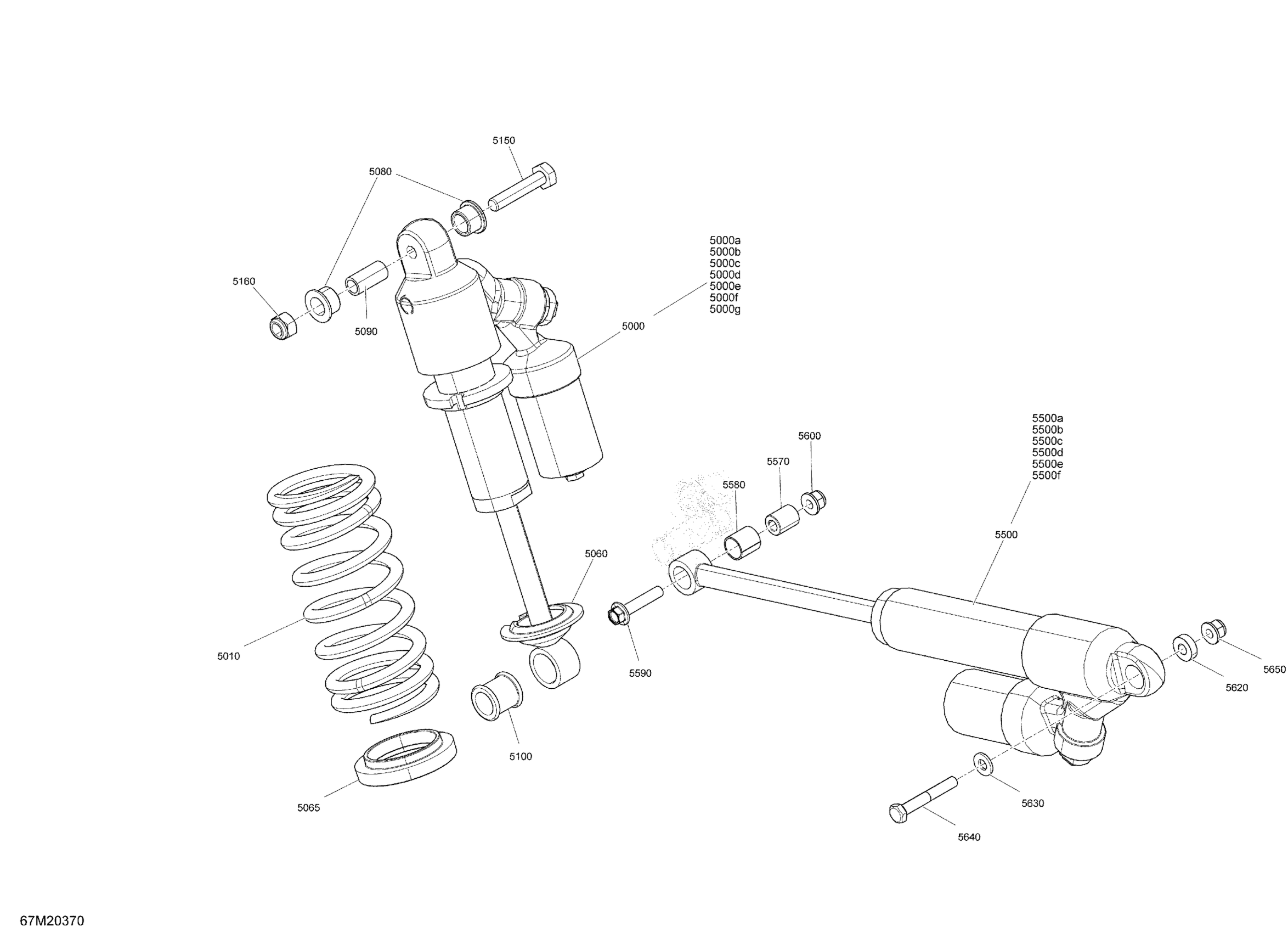

Ski-Doo 009 - MXZ 600RS - North America, 2020 08- Suspension, Rear - Shocks Diagram

Description

Price

5000

Center Shock | Included 5000 to 5000g

503195820

$812.99

5000a

O-Ring

415093807

$35.99

5000b

Piston Ring | Not Shown

415093806

$16.86

5000c

Air Valve

505070398

$20.99

5000d

Screw | Not Shown

505070399

$4.12

5000e

O-Ring

505070400

$4.54

5000f

Circlip - Call your local BRP dealership

715900076

$4.12

5000g

O-Ring

415093804

$4.54

5010

Spring

503195824

$67.99

5060

Spring Stopper

503190271

$22.49

5065

Spring Spacer

503192743

$16.49

5080

Urethane Bushing

503189117

$8.19

5090

Bushing | Includes 240d to 240d1

503189282

$4.34

5100

Bushing

503189271

$13.99

5150

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

5160

Elastic Locking Nut M10

233601466

$2.11

5500

Rear Shock | Included 5500 to 5500f

503195821

$877.49

5500a

Piston Ring | Not Shown

415093806

$16.86

5500b

Air Valve

505070398

$20.99

5500c

Screw | Not Shown

505070399

$4.12

5500d

O-Ring

505070400

$4.54

5500e

Circlip - Call your local BRP dealership

715900076

$4.12

5500f

O-Ring

415093804

$4.54

5650

Elastic Flange Nut M8

233281466

$1.01
