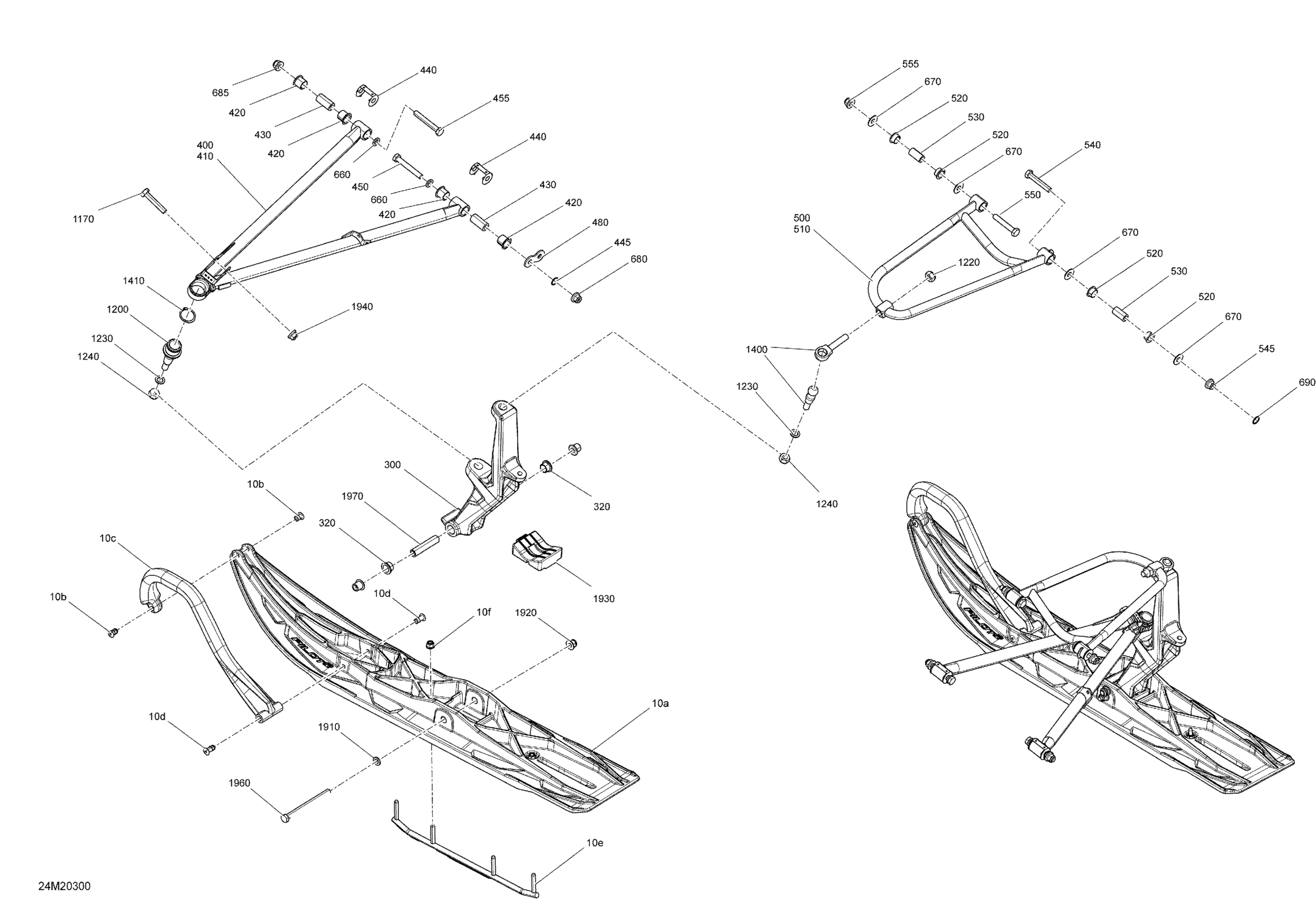

Ski-Doo MXZ 600RS - 2020 Suspension, Front - System - Racing Diagram

#

Description
Price

10a

Black, Racing Ski

505074670

$184.99

10b

Retainer 17mm long

505071812

$4.43

10c

Handle

505074308

$34.58

10d

Retainer 23mm Long

505072133

$5.03

10e

Runner Kit

860201697

$164.58

10f

Hex. Flange Elastic Nut M8

233281414

$1.14

300

Deep Black, Ski Leg

505074649

$218.43

320

Leg Bushing

505072690

Unavailable

400

RH Lower Arm

505074655

$193.82

410

LH Lower Arm

505074654

$193.82

420

Cushion

503191766

$5.71

430

Aluminum Bushing

505072401

$16.12

440

Wear Plate

505072634

$4.45

445

O-Ring

505072448

Unavailable

450

Screw Hex. M10 X 70

250001024

$1.74

455

Screw Hex. M10 X 70

250001024

$1.74

480

Rear Reinforcement

505074424

$9.62

500

LH Upper Arm

505074899

$193.82

510

RH Upper Arm

505074900

$193.82

520

Bushing

505073018

$7.40

530

Sleeve

505072143

$8.62

540

Screw Hex. M10 X 60

250001023

$1.74

545

Hex. Flange Elastic Nut M10

250100165

$0.70

550

Screw Hex. M10 X 60

250001023

$1.74

555

Hex. Flange Elastic Nut M10

250100165

$0.70

660

Washer

503189564

$0.72

670

Washer

505072392

$4.65

680

Hex. Flange Elastic Nut M10

250100165

$0.70

685

Hex. Flange Elastic Nut M10

250100165

$0.70

690

O-Ring

505072448

Unavailable

1170

Hex Screw M10 X 1.5 X 55

207005554

$6.18

1200

Ball Joint

505074133

$51.51

1220

Hex. Elastic Hex. Nut M12

250100089

$0.39

1230

Washer

503192491

$4.38

1240

Hex Elastic Nut M12 X 1.25

232521464

$1.74

1400

Upper Ball Joint

505072257

$16.89

1410

Snap Ring

293370098

$3.11

1910

Washer

503192496

$0.75

1920

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

1930

Ski Stopper

505072594

$17.66

1940

Hex. Flange Elastic Nut M10

233201436

$1.74

1960

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

1970

Ski Axle

505073691

$12.58
