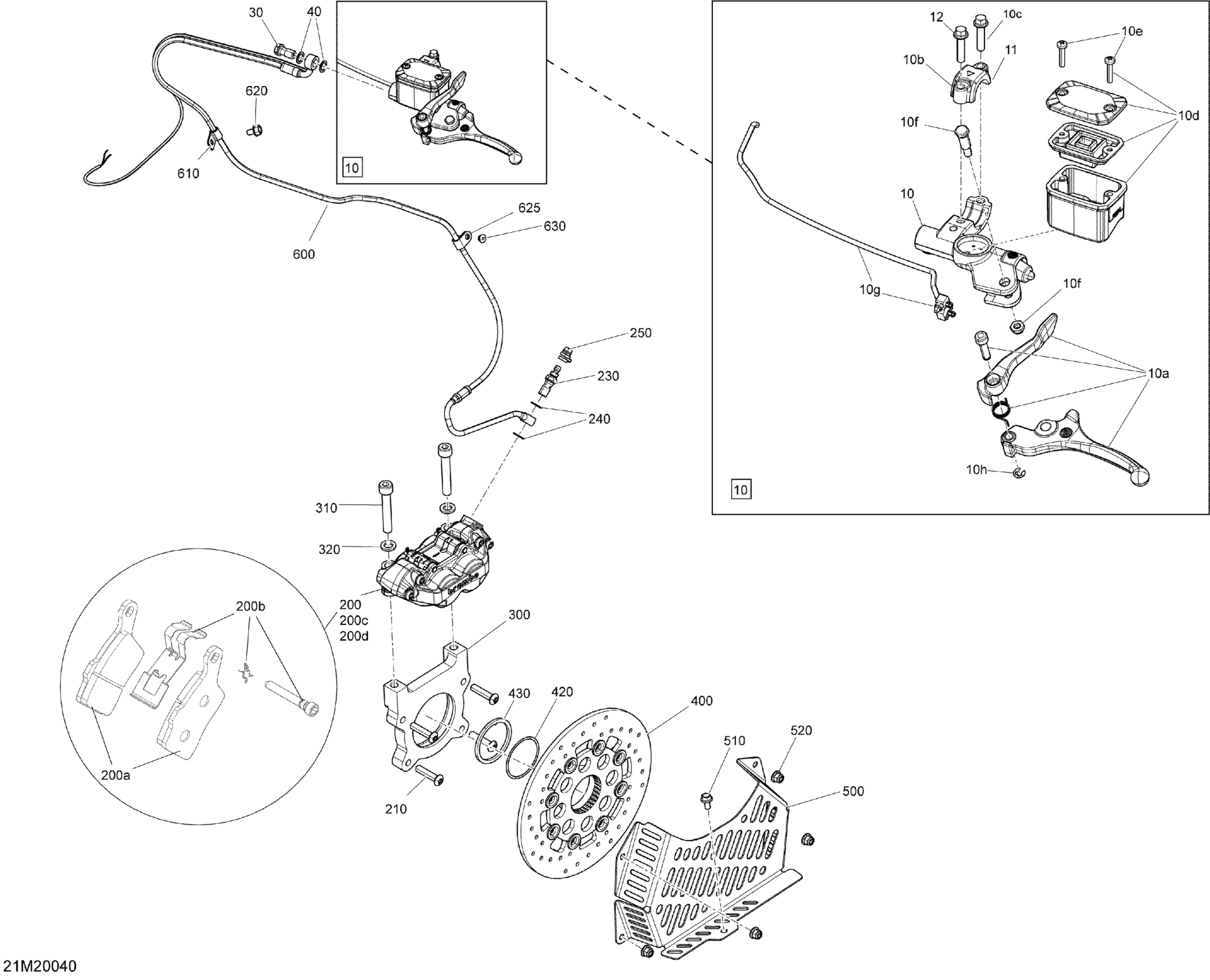

Ski-Doo MXZ 600RS - 2020 Brakes - System Diagram

#

Description
Price

10

Cylinder Master | Includes 10 to 10g

507032614

$318.43

10a

Lever With Parking Lock

507032476

$101.51

10b

Clamp And Screw Kit

507032477

$23.05

10c

Hex. Flange Screw M6 X 25

250000447

$2.06

10d

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

507032478

$109.97

10e

Screw M4 X 20

415129356

$2.17

10f

Pin Ass'y

415030000

$17.66

10g

Microswitch

507032601

$70.74

10h

Circlip | Model-RS

414439000

$4.14

11

Clamps | Includes 75a to 75b

719000049

$23.05

12

Hex. Flange Screw M6 X 25

250000447

$2.06

30

Banjo Bolt

507032551

$5.52

40

Copper Washer

705601628

$4.34

200

Brake Caliper Ass'y | Includes 200 to 200d

507032613

$526.12

200a

Brake Pads Kit

507032615

$111.51

200b

Pin & Spring Kit

507032616

$41.51

200c

Spring Plate

507032617

$64.58

200d

Spring Clips

507032618

$32.28

210

Screw-torx Button Head M8 X 35

250000971

$4.12

230

Banjo Bolt/ Bleeder

705601201

$17.66

240

Copper Washer

705601628

$4.34

250

Bleeder Bolt Cap

705601190

$4.28

300

Brake Caliper Support

507032647

$119.97

310

Socket Screw M10 X 60

244006060

$3.32

320

Washer

503192496

$0.75

400

Disc Brake Ass'y

507032740

$249.20

420

O-Ring

293300134

$2.25

430

Spacer

507032612

$11.83

500

Disc Brake Guard

507032674

$87.66

510

Hex. Flange Screw M6 X 12

207661254

$2.06

520

Hex. Flange Elastic Nut M6

233261466

$1.66

600

Brake Hose

507032649

$59.97

610

Open Clamp

414108400

$3.11

620

Hex. Flange Screw M6 X 10

210261040

$1.25

625

Hose Clamp

293650257

$5.15

630

Blind Rivet 3/16

293150231

$0.31
