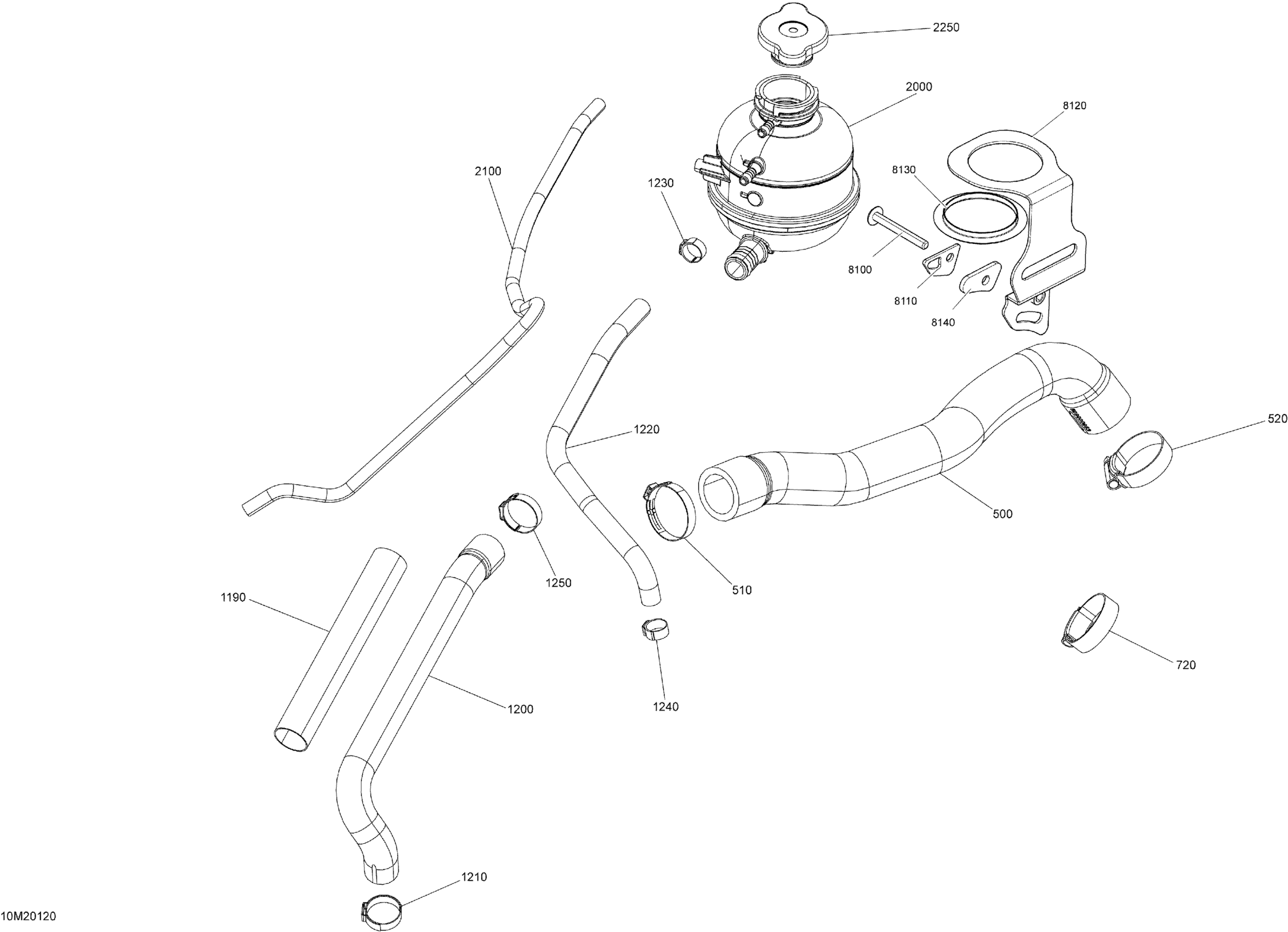

Ski-Doo MXZ 600RS - 2020 Cooling - System Diagram

Description

Price

500

Cooling Hose

509001089

$23.85

510

Oetiker Gear Clamp

293650254

$8.89

520

Norma Spring Clamp

293650264

$4.15

720

Norma Spring Clamp

293650264

$4.15

1190

Protector Tube 32 Mm 1000Mm Long

219704421

$24.60

1200

Hose

509001141

$23.10

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

1220

Cooling Hose

509000968

$9.57

1230

Oetiker Clamp

293650046

$2.67

1240

Oetiker Clamp

293650046

$2.67

1250

Oetiker Clamp

509001041

$1.87

2000

Coolant Tank Kit

861805527

$84.30

2100

Hose 6 Mm 15000Mm Long

219704360

$120.12

2250

Radiator Pressure Cap

509000180

$13.42

8100

Torx Truss M6 X 50

250000868

$2.00

8110

Coolant Tank Support

518330617

$10.21

8120

Coolant Tank Support

509001185

$17.88

8130

Swivel Abutment

417127116

$7.82

8140

Coolant Tank Spacer

509001184

$10.21
