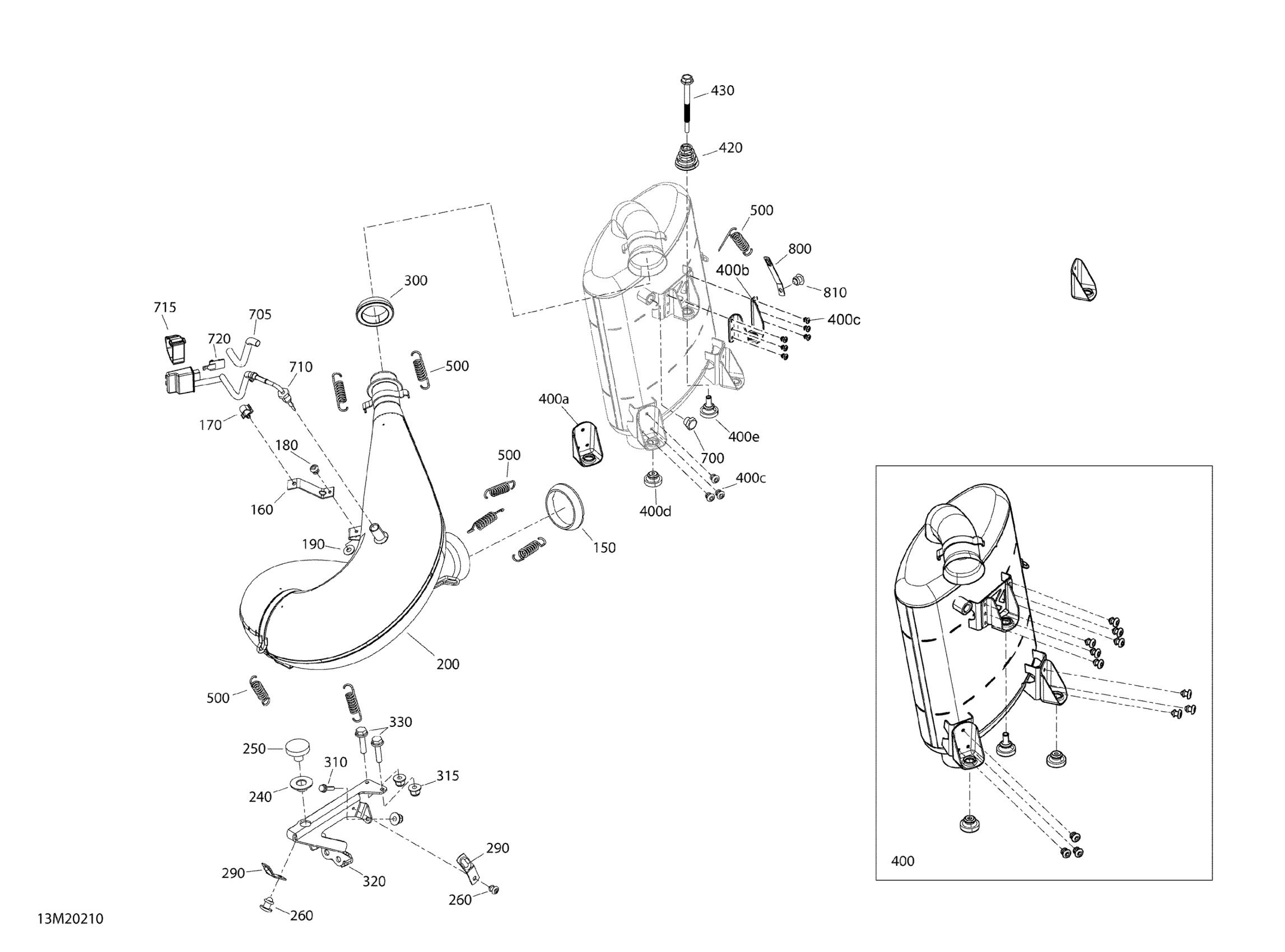

Ski-Doo MXZ 600RS - 2020 Engine - Exhaust Diagram

#

Description
Price

150

Exhaust Gasket

514053487

$25.34

160

Support

514055512

$3.03

170

Tie Rap Mount (screwable)

515176795

$4.96

180

Avex Rivet

390909200

$0.28

190

Washer 3/16

514055537

$0.96

200

Pipe

514055809

$626.84

240

Support Stopper

514055831

$18.63

250

Rubber Bumper

514053654

$47.73

260

Avex Rivet

390909200

$0.28

290

Spring Bracket

514054522

$6.09

300

Exhaust Gasket

514055294

$23.85

310

Hex. Flange Screw M6 X 25

207662544

$0.61

315

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

320

Support

514055830

$68.63

330

Hex. Flange Screw M6 X 25

207662544

$0.61

400

Muffler Ass'y | Includes 400 to 400g

514055429

$698.48

400a

Support

514055231

$5.07

400b

Support

514055406

$5.07

400c

Avex Rivet

390909200

$0.28

400d

Stopper

514055203

$18.63

400e

Stopper Ass'y

514056138

$12.21

420

Spring

514055282

$6.01

430

Hex. Flange Screw M6

250000926

$0.96

500

Spring

514055198

$6.01

700

Hexagonal Head Pipe Plug M14

250100074

$12.15

705

Heat Shield

514055832

$10.31

710

Module

515178170

$169.37

715

Velcro Strip

508000820

$7.13

720

Support

514055393

$2.99

800

Spring Bracket

514055644

$16.39

810

Hemlock Rivet, 6.5 mm

293150096

$3.07
