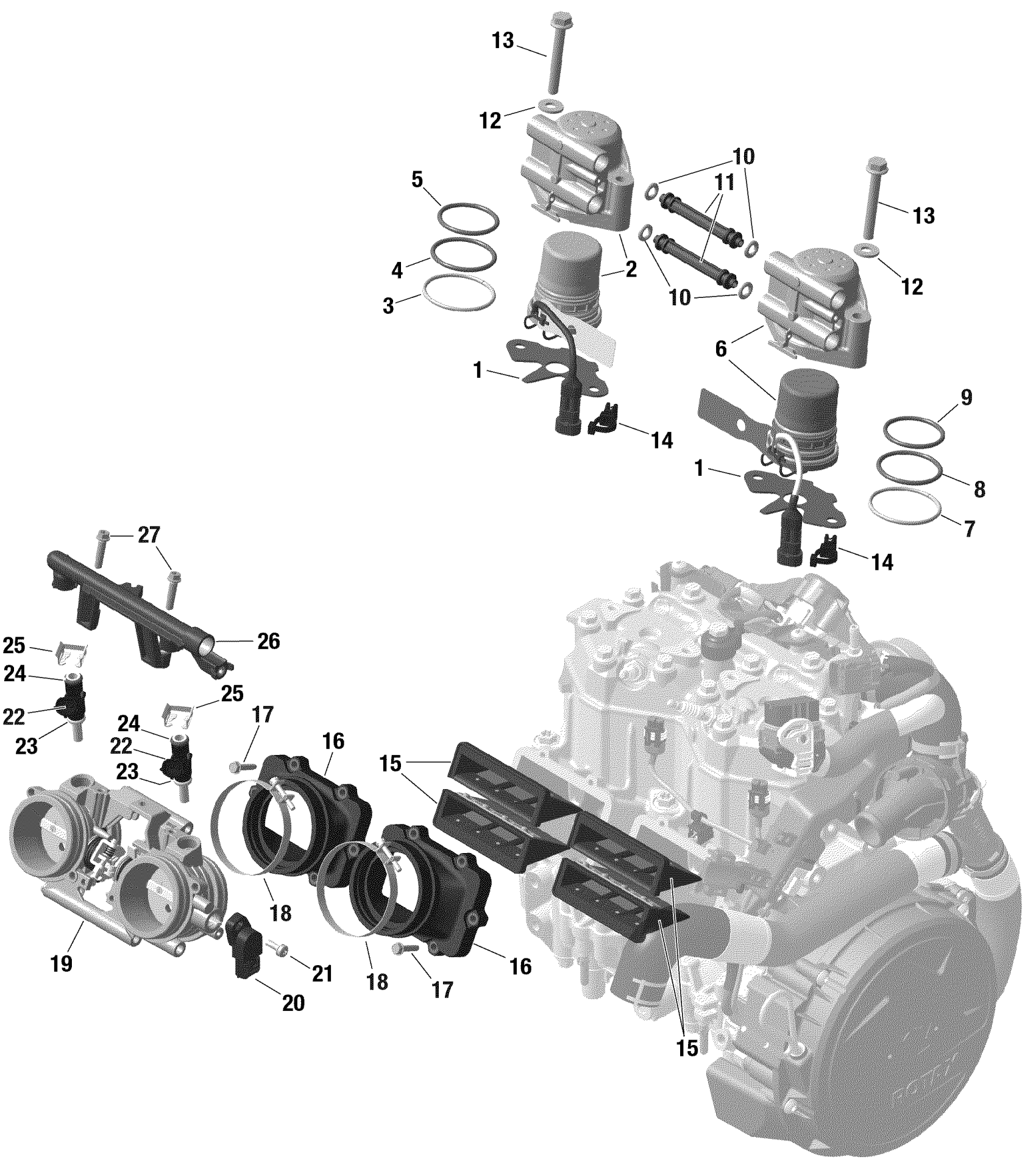

Ski-Doo MXZ 600RS - 2020 Engine - EFI - 598 RS Diagram

#

Description
Price

1

Gasket

420430056

$7.57

2

Injector PTO | Includes 2 to 5

420874863

$498.48

3

Crush Ring

415129497

$7.16

4

O-Ring

415129498

$12.13

5

O-Ring

415129499

$6.61

6

Injector MAG | Includes 6 to 9

420874864

$498.48

7

Crush Ring

415129497

$7.16

8

O-Ring

415129498

$12.13

9

O-Ring

415129499

$6.61

10

O-Ring

420430775

$3.88

11

Tube

420874190

$5.06

12

Washer

420901550

$2.00

13

Screw M8X60

420840096

$2.00

14

Tie Rap

420951785

$4.15

15

Reed Valve Ass'y

420924798

$38.03

16

Intake Socket

420867390

$105.94

17

Tapping Screw M5 X 22

420841550

$1.63

18

Clamp

420251209

$8.09

19

Throttle Body | Includes no. 18-20

420685756

$1,182.06

20

Throttle Valve Position Sensor | Includes no. 2-3

420866680

$64.90

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Injection Valve Ass'y | Includes 4 to 6

420274250

$155.19

23

O-Ring

420431890

$5.69

24

O-Ring

420631220

$13.18

25

Injector Clip

420853030

$2.82

26

Fuel Rail

420874155

$22.36

27

Torx Flange Screw M6 X 25

420440234

$2.91
